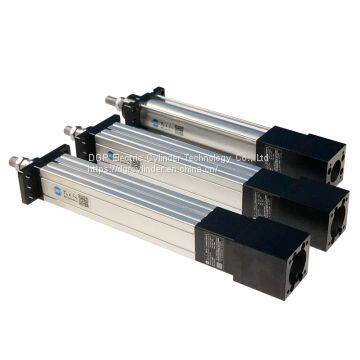

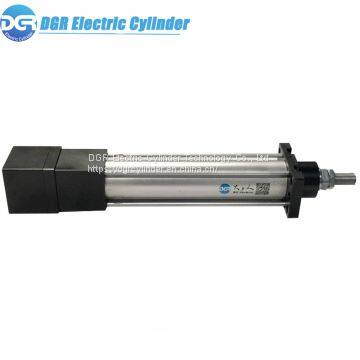

Help CenterHigh Strength High-stability Great Planetary Ball Screw Electric Piston Cylinder For Stamping Equipment
Related Products
-
15KN Thrust 2000mm Long Stroke IP68 Programmable Precision Electric Piston CylinderUS$ 360 - 380MOQ: 1 Piece -
Processing Custom Precision Fast Stainless Steel DC Electric Linear Actuator For Food IndustryUS$ 330 - 360MOQ: 1 Piece
-
Strong Dynamic High Precision Long Stroke Long Life Servo Lifting Linear ActuatorUS$ 365 - 385MOQ: 1 Piece
-
AC380V High Load Durable Precision Piston Linear Actuator For Agricultural EquipmentUS$ 370 - 390MOQ: 1 Piece
-
1500mm Ultra Long Stroke High Load Lifting Electric Tubular Linear Actuator For Boat Roof OpenerUS$ 365 - 385MOQ: 1 Piece
DGR-HT-50 High Strength High-stability Electric Piston Cylinder Model number indications:
DGRHT |
50 |
T5 |
L1200 |
S250 |
Heavy duty electric cylinder |
Bore/size |
Lead T5=5mm T10=10mm |
Stroke L1200=1200mm |
Rated speed S250=250mm/s |
F1.5 |
I/U |
P750 |
i1 |
|
Rated load F1.5=1.5KN |
Motor mounting Inline mounting ：I Parallel mounting：U |
Power P750=750W |
Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1 |
DGR-HT-50 High Strength High-stability Electric Piston Cylinder Technical Data
Product Series |
DGRHT50 |
|
Screw lead / pitch (mm) |
5 |
510 |
Max. Power of Motor (W) |
750 |
|
Max. Rated Thrust (N) |
1500 |
|
Max. Speed (mm/s) |
250 |
500 |
Rated Driving Torque (N.m) |
1.3 |
2.5 |
Max. Ball Screw Diameter (mm) |
16 |
16 |
Rated Dynamic Load of Ball Screw (kgf) |
1380 |
1108 |
Max. stroke (mm) |
1200 |
|
Axial Backlash (mm) |
0.02-0.04 |
0.02-0.04 |
Lead Error Every 300mm (mm) |
0.023 |
0.023 |
Repeatability Accuracy (mm) |
0.02 |
0.02 |
Note:
1. If you need to know the ball screw life, please contact customer service for detailed consultation;
2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).
DGR-HT-50 Electric Piston Cylinder For Stamping Equipment Motor Selection List
Product Series |
DGRHT50 |
Flange Size of Optional Servo Motor Series (mm) |
60/80 |
Flange Size of Optional Stepper Motor Series (mm) |
57/60 |
Flange Size of Optional Gear Box Series (mm) |
60/80 |
Note:
1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;
Features of DGRHT80 Electric Piston Cylinder For Stamping Equipment
High Accuracy
Using servo motor as the drive mechanism, the servo control system has very high precision and can achieve precise positioning of about 0.01mm.
High Reliability
Highly security
Long Life
High-precision transmission parts such as ball screws can reduce the friction and increase the service life of the electric cylinder.
Wide Thrust Range
The ball screw acts as a transmission member to achieve linear reciprocating motion, reducing motion friction, and the transmission efficiency is over 90%.
Careful Material Selection
1. Round carbon steel is used as the cylinder material, the thrust is very large, and the maximum rated load can reach 20 tons.
2. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)
3. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.
Refined Design and Processing
1. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.
2. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.
3. The anti-torsion mechanism is installed inside, no need to match the output shaft, the user can directly use
4.All heavy-duty cylinders use sliding key guides. (The square cylinders are using guided rod)
Duty Cycle
The ball screw can be operated frequently and achieve high strength, high speed and high precision positioning.
Complete Testing
Professional factory inspection: including appearance, stroke, load, noise decibel etc.
Excellent Service
1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)
2. DGR Electric cylinder can be custom engineered for customer’s particular application.
Wide Selection of Motors
1. Servo and inverter control are performed by servo motor, stepper motor, DC motor, and AC motor.
2. Motor comes with brake to ensure secure operation.
Send Inquiry to This Supplier
