Home > Manufacturing & Processing Machinery > Spraying Machinery & Spreading Equipment > Line Marking Machine > Road Marking Machines Sale in South Africa
US$ 1,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
XD
Place of Origin:
Liaoning, China
After-sales Service Provided:
No after-sales service
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self Driving Thermoplastic Paint Automatic Melt Road Marking MachineUS$ 2,200 - 2,500MOQ: 1 Set -
Hand Push Primer Spraying Machine for Base Paint Road MarkingUS$ 300 - 2,000MOQ: 1 Set
-
Zebra Crossing Hot Melt Thermplastic Paint Road Line Marking MachineUS$ 1,550 - 1,700MOQ: 1 Set
-
Automatic Self Propelled Vibrate Raising Line Road Marking MachineUS$ 7,400 - 7,500MOQ: 1 Set
-
Electric Self Propelled Thermoplastic Paint Road Marking MachineUS$ 2,200 - 2,500MOQ: 1 Set
Brand Name
XD
Place of Origin
Liaoning, China
Warranty
1 Year
Weight
275kg
Dimension(L*W*H)
1350*980*1300mm
Condition
New
Features
Self walking
Power(W)
4850
Product Description
Products Profilo
XDTQ-Z150/200/300 selfed-propelled raising line marking machine (marker) is special equipment for all kinds of rasing line marking. Now rasing line are widely used for lines in front of enterprises and institutions, entrance and exit of cross lanes, highway, urban expressway and viaduct in order to remind the driver to drive in right road and drive slowly. The vehicle will vibrate on the raising line which will force the vehicle to slow, and ensure Traffic safety for vehicles and pedestrians. Thus, it can recduce traffice accident, and make the vehicles goes somoothly.

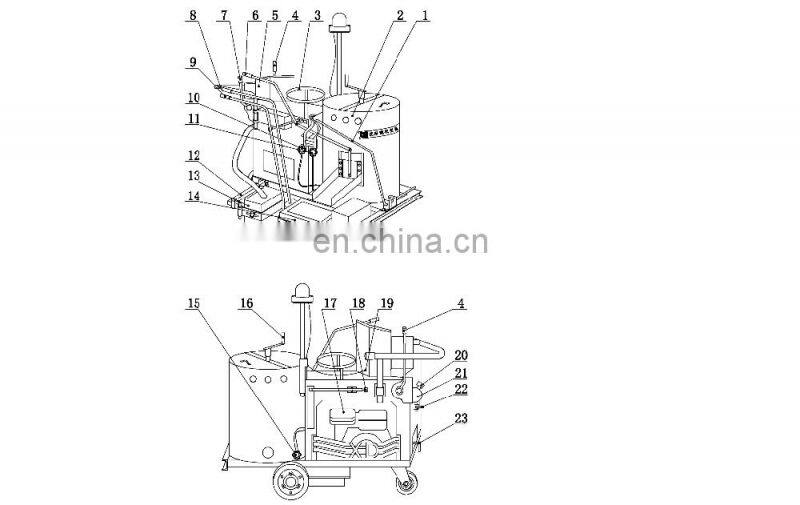

1,Guide Rod 2,Coating Bucket 3,Liquid Gas Storage Tank Shelf
4,Speed Control Handle 5,Program Operating Box
6,Coating Bucket Release Handle 7,Glass Ball Bucket Clutch Wrench Handle 8,Handlebad 9,Coating Bucket Release Handle
10-11,Coating Bucket Gas Switch 12,Glass Ball Bucket Hook Holder
13,Glass ball bucket 14,Coating Bucket 15,Coating Bucket Gas Switch 16,Coating Bucket Crank 17,Gasoline Engine
18,Walking Clutch push-pull rod 19,Warning Light Plug
20,Piezometer 21,Gaslion Storage Tank
22,Exhaust valve 23 Rear wheel location pin
Product characterist
This marking machine with integrated systems of sensor system, micro computer systerm, pneumatic system, hydraulic walking system. It can make both base line and raising vibrating line at same time.
1,The control system of the machine is controled by computer intelligence program and performed by pneumatic elements. It has two functions of automatic control and manual control. The automatic control function could mark the raising line in specific lenth and space which was programmed as per specification on engineering drawings. It is easy to control and operate. The manual functions is used for debugging equipment, cleaning coating bucket and some exceptional circumstances.
2,The walking system of the machine adopts a hydraulic stepless speed changing device imported from abroad. It can work at ideal speed by shift the speed changinghandle when marking lines. And could move forward or back at any time which ensure the line marking project quality and time.
3,The paint bucket was manufactured carefully, esay to operate, walks smoothly. The marking lines marked by it are of good effect, uniform coating, neat shape, clear edges and corners.
4,The matched beads device's structure is advanced, compacted and convenient for operating. Also, it is flexible, and not necessary to change any parts for marking lines width of 100mm, 150mm and 200mm, the beads spraying rate could meet standard of GB5768.
1,The control system of the machine is controled by computer intelligence program and performed by pneumatic elements. It has two functions of automatic control and manual control. The automatic control function could mark the raising line in specific lenth and space which was programmed as per specification on engineering drawings. It is easy to control and operate. The manual functions is used for debugging equipment, cleaning coating bucket and some exceptional circumstances.
2,The walking system of the machine adopts a hydraulic stepless speed changing device imported from abroad. It can work at ideal speed by shift the speed changinghandle when marking lines. And could move forward or back at any time which ensure the line marking project quality and time.
3,The paint bucket was manufactured carefully, esay to operate, walks smoothly. The marking lines marked by it are of good effect, uniform coating, neat shape, clear edges and corners.
4,The matched beads device's structure is advanced, compacted and convenient for operating. Also, it is flexible, and not necessary to change any parts for marking lines width of 100mm, 150mm and 200mm, the beads spraying rate could meet standard of GB5768.
