DSR350G Roots Blower ,rotary tri lobe blower for air supply

Name: DSR350G Roots Blower ,rotary tri lobe blower for air supply
Brand: DACHENG
Price: USD $11300 - 14000 / Set

FOB Price

USD $11300 - $14000 / Set

1 Set(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Other Cash
Delivery Detail:20 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

DACHENG

Place of Origin:

China

Model Number:

DSR350g

Product Description

DSR350G Oil Free tri-lobe Roots blower for powder conveying

Product Introduce

DICHENG DSR350G Series Double Oil Tank Roots Blowers adopts the advanced technology of Japan,
its air capacity is 97.9m3/min - 172.4m3/min,
the pressure is from 63.7Kpa to 98.0Kpa.
The main characteristic of our air blower is small volume, light weight, flow strong, noise small, steadily reliable operation.
This air blower is mainly applied to such trades as water treatment, air transport, mine, vacuum packaging, aquaculture and etc. Our products export to Southeast Asia, Europe, North and South America and etc.

Product Feature

1. Air flow and pressure can be customized
2. Stable air flow and less pressure variation
3. Clean air not with oil moist
4. Construction simple and easy maintenance
5. Bearing are all lubricated by oil moist
6. Long service life

Description of Performance parameters
The performance parameters table shows the model, outlet diameter, rotate speed, discharge pressure, air capacity and power of motor.

1. The air capacity and pressure in the tables is in standard suction state. The standard suction state is 20ºC temperature, 1.033 kgf/cm2(101.3Kpa) Standard atmospheric pressure and 65% relative humidity.

2. The air capacity and pressure range of some blower models is repeated, to ensure the service life and low noise, should use the larger model.

Type of technology	Positive displacement blowers
Design	Positive pressure
Air capacity	97.9 to 172.4 m³/min
Discharge Pressure	63.7 to 98.0Kpa
Medium	Air, Neutral gases
Conveying	Oil-free
Weight	2983kg
Discharge Diameter	350mm(or customized)

Blower Structure Diagram

No.	Name	Material	Q' ty	No.	Name	Material	Q' ty
1	Shell	HT200	1	14	Z sealing ring	Nitrile rubber	1
2	Impeller	HT200	2	15	Gear	35CrM	2
3	Drive shaft	45Cr	1	16	Gear lock washer	Q235	2
4	Driven shaft	45Cr	1	17	Gear lock nut	SS400	2
5	Drive side siding	HT200	1	18	Gearbox	HT200	1
6	Gear side siding	HT200	1	19	Sleeve	45	1
7	Drive bearing	NSK	2	20	End cover	Q235	2
8	Driven bearing	NSK	2	21	Pin	45	1
9	Sealing ring	Nitrile rubber	2	22	Plug	35	1
10	Sealing ring	Nitrile rubber	2	23	Oil gauge		1
11	Bearing sleeve	45	4	24	Vent		1
12	Bearing cover	HT200	1	25	Grease nipple	C3605	2
13	Bearing cover	HT200	1	26	Gearbox seals	Barley paper	2

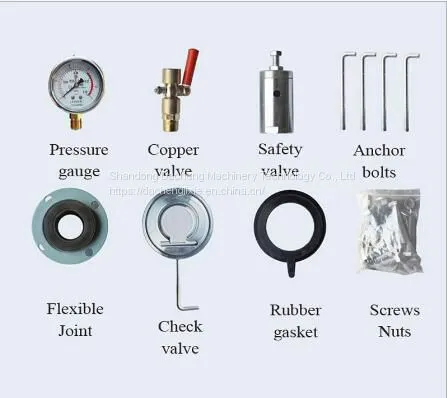

Blower Accessorie
Inlet filter silencer, Discharge silencer, Anchor bolts, Baseframe, Safety valve, Check valve, Discharge pressure gauge, Flexible connections, Lubricant oil.

Roots Blower Application

Water Treatment	Aquaculture	Powder and granules transportation
Be used in water treatment plant for water purification and sediment mixing	Be used in a variety of fish pond for oxygen supply and mixing, and also for aquariums and live fish tank	Powder or granules (such as plastic materials, etc.) can be transported by pressure or vacuum
Incinerator	Ballast pump	Sandblast
Air combustion and exhaust emissions	Used for chemical liquid unloading and other ballast pumps	Used as air source for blast jet
Booster	Compost fermentation	Cereals Transportation
Used for high-pressure exhaust to make the gas into tiny molecules	High-pressure air take into the livestock manure tank to increase contact area of livestock manure and air , also apply to sewage treatment	Cereals such as wheat are transported from the rotary pilot valve with air

Pipe clearing	Sauna	Plating Bath
Used to remove dirt and iron dust during pipeline replacement or overhaul	Used for the sauna to provide air bubbles, mainly used for hospitals, hotels and etc.	Use air to stir the electrolyte to keep the electrolyte circulation, and disperse the attached blister to make plating quickly, spread evenly
Produce line drying	Car wash dry	Smoke exhaust
Quickly remove the water or oil on the cleaned items	Dry the car after washing	Exhaust smoke quickly to reduce pollution
Stripping from mold	Air cushion of Cut off machine	Dry air knife
Easy to remove the finished product after stamping	Increase buoyancy, easy to move	Use the blower to blow off the tiny dust and water droplets on the circuit board
Feed paper/cloth	Washing machine blow dry	Gas /heavy fuel injection
Collect plastic, cloth, paper and other scrap generated after trimming	Dried bottles after washing, suitable for food industry	Provide high pressure (2000 mmAq) and sufficient air volume

Common malfunctions and Solution

Malfunctions			Reason	Solution
Blower	Can not rotate	Can rotated by hand	The motor is damaged	Repair or replace the motor
		Can rotated round by hand	The lobes are locked	Open to repair
		Can rotated round by hand	The impurity in blower	Open to clean
	Can rotate	Abnormal sound or vibration	Skid, v-belt is too tight or too loose	Adjust v-belt tension
			Pulley offset	Reset pulley
			Pulley and belt cover friction	Adjust belt cover
			Bearing oil lack or aging	To replace the oil
			Gear oil lack or aging	To replace the oil
			The safe valve leakage	Adjust the safe valve
			Foundation insufficient strength	To strengthen the foundation strength
			Piping resonance	Eliminate by the silencer and support
			Exhaust pressure rises abruptly	See *annotated
			Anchor bolt is too loose	Tighten
			Rotor interference	Open to repair
			The impurity in blower	Open to clean
			Check valve bad	Replace
		Overheating	Exhaust pressure rises abruptly	See *annotated
			Temperature of working environment exceeds 40 ºC	Ventilated working environment
			Inlet silencer obstruction	Cleaning/replace filter
		Airflow insufficient	Pipeline leaks	Tighten the pipe connection
			Inlet silencer obstruction	Cleaning/replace filter
			The safe valve leakage	Adjust the safe valve
			V-belt is too loose	Adjust v-belt tension
			Exhaust pressure rises abruptly	See *annotated
		Exhaust pressure rises abruptly	Shut off the valve	Fully open the valve
			The water level rises	Adjust water level
			Inlet/outlet pipe jams	Cleaning debris
			Valve bad or twist reversed direction	Replace or reverse direction twist
			Airflow overpowered	Reduce round speed or exhaust
		Oil leak	Lubrication oil overmuch	Refuel to the center of oil standard

Processing Workshop

FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment

A- Service life of blower is more than 10 years.

B- Service life of Impeller is more than 60,000 hours.

C- Service life of bearing is more than 30,000 hours.

D- Service life of gear is more than 60,000 hours.

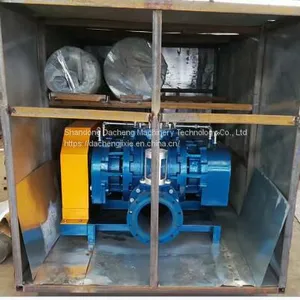

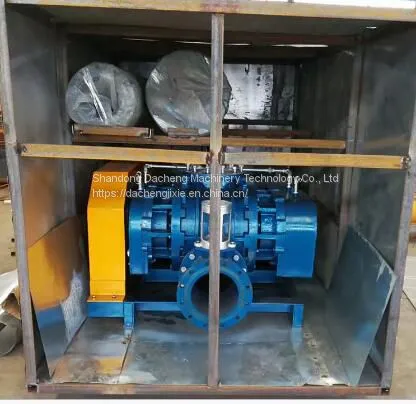

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6.What are your terms of payment?
1. TT 40% AS THE ADVANCE PAYMENT AND TT 60% AFTER INSPECTION BEFORE SHIPPING.
2. 100% IRREVOCABLE L/C AT STGHT.
