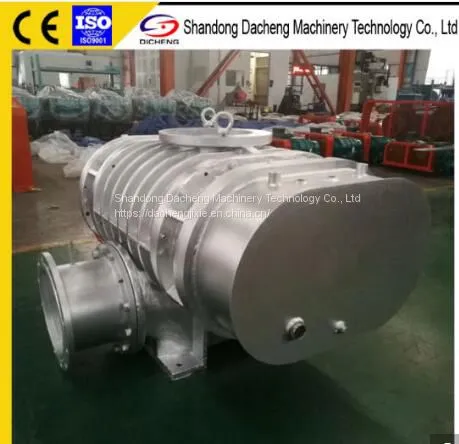

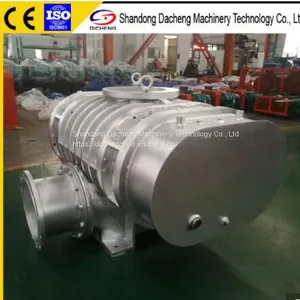

MVR Roots Steam Compressor
Our company's MVR roots steam compressors have been developed with air capacity from 5 m3/min to 130 m3/min. The maximum pressure difference between inlet and outlet is 58.8Kpa to 80Kpa.


Specific parameters are shown in the following table:

Note:

2. In the table, rotating speed is the recommended value. Don't try to exceed the range.

MVR steam recompression principle
MVR (mechanicak vapor recompression) is an abbreviation of Mechanical Steam Recompression Technology. MVR uses the secondary steam generated by the evaporation system and its energy to upgrade the low-grade steam to the high-grade steam heat source through the mechanical work of the steam compressor. An energy-saving technology that provides heat energy to the evaporation system so as to reduce the demand for external energy. In theory, the MVR technology saves more than 80% of energy compared to traditional evaporators, saves more than 90% of condensate, and reduces footprint by more than 50%.

MVR process drawings
The following MVR process drawings are for reference only. According to the evaporation solute, the process is also different.


MVR roots steam compressor features


Shell: The inlet adopts spiral type. When the impeller rotates, the gas enters the shell through the spiral line to form a circular cavity, thus reducing the pulsation of the blower.
Material selection 304/316L/2205/HT200+Ni-P

Rotor: Three-leaf or two-leaf type, compound type line, Impeller area utilization factor 0.5, volume efficiency increases 5%, noise reduces about 5dB
Material selection 304/316L/2205/HT200+Ni-P

Wallboard: The surface is provided with a backflow groove. This structure can increase the compression ratio of the blower and can also help reduce the noise of the blower.
Material selection 304/316L/2205/HT200+Ni-P

Mechanical seal: Double-faced container-type mechanical seal, moving ring using silicon carbide or graphite, static ring using carbide steel, easy installation and maintenance, special design structure, use more reliable.

Bearings: Positioning bearings are NSK bearings that are imported from Japan.

Gears: High-precision grinding gears are used to reduce mechanical noise, and the accuracy reaches level 5 of the national standard GB/T10095-2008.


Common Problem Solution of FSR-WN Roots Steam Compressor

 small conditions of temperature rise. SUS329 stainless steel is used for high temperature and
 severe working conditions due to its small thermal expansion coefficient and good corrosion
 resistance.

of thermal expansion of cast iron is much lower than that of stainless steel, which can effectively
 prevent the rotor from being locked up during rotation.


Sealing forms include:
multiple labyrinth seals,
Double shaft seal (VITON oil seal prevents oil in the mailbox from entering the side/main housing, Viton seal),
Air blowback seal,
Machinery Seal,
Such as, a variety of flexible forms of sealing combination, can guarantee the compressor under positive pressure or negative pressure working conditions, in water vapor or alcohol vapor and other different media environment, the seal can be long-term effective and reliable


2) Adopt SUS329 stainless steel with good cavitation resistance.
3) The inlet of the Roots steam compressor is sprayed with an appropriate amount of spray water to control the outlet temperature.

MVR Project




Production Workshop



FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
