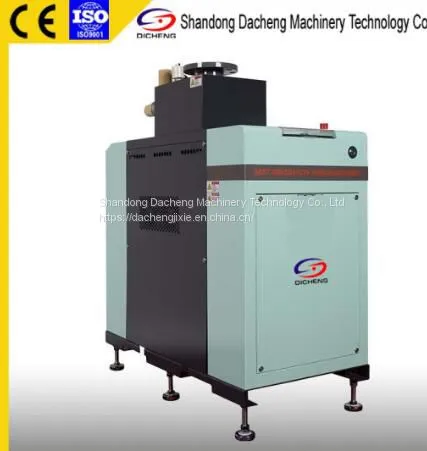

DC20 Air Suspension Turbo Blower for Sewage Treatment

DC20 Low Noise Air Suspension Turbo Blower for Sewage Treatment

Products Introduce
DICHENG DC20 Air suspension turbo blower is developing with TNE Korea Co., Ltd from Korea. The Core components(PMSM) and super high speed controller are imported from Korea.
The air capacity is from 6 m3/min to 18 m3/min,
the pressure is from 40 Kpa to 150 Kpa.
The advantages of the air suspension turbo blower are air suspension bearings, aviation aluminum alloy three-way flow impeller, closed loop air cooling system, modular control and detection system, Anti-surge protection and etc.

Model and Technical Details

Advantage

High speed permanent magnet synchronous motor (PMSM):

3. It can achieve two motor parallel control, according to the user demand for large air volume.


Air suspension bearing devise:

2. We strictly check the bearing pre-installed detection link, to obtain the best fluid dynamic performance and achieve the maximum speed of 80000 RPM

Patented cooling filter system:

2. The function of instructions and settings for filter safety alarm value.


High efficiency turbocharged turbines:

3. The design is equipped with a single / double guide vane diffuser, compact, to help achieve the wide range of wind efficiency and efficiency maximization.



Control panel:

3. Design a variety of security definition options. Such as: temperature, surge feedback, anti-return damage self-locking, air dust safety settings and so on.

Frequency convertor (VDF):

3. Using closed-loop vector control program, it can meet the smooth start of the motor and no damage to stop under different power conditions.

Working condition operation model control:

5. High altitude operation control - engineering application at altitude above 2000 meters.

Machine to provide outdoor type:

2. All stainless steel chassis can prevent rust.


Application

1. Municipal and industrial water treatment/sewage treatment biochemical aeration
2. Steel, chemical, carbon black industry high pressure air supply
3. Desulfurization System
4. Zinc plating technique
5. Mine flotation
6. Process gas supply
7. Landfill gas extraction
8. Pneumatic transmission
9. Vacuum Pumping Application

Package:
Fumigation free plywood case or in accordance with customer requirements

Certificate:
ISO9001 and CE certificate

FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Purpose
D: Use environment(Temperature, atmospheric pressure)
Or other specials you give us will be more appreciated.
2. How long is your warranty?
Our warranty is 12 months after received the multistage centrifugal blowers.
3. How long is the service life of air suspension turbo blowers?
About 30 years under common use.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation free plywood case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6.What are your terms of payment?
1. TT 40% AS THE ADVANCE PAYMENT AND TT 60% AFTER INSPECTION BEFORE SHIPPING.
2. 100% IRREVOCABLE L/C AT STGHT.
