Home > Products > Industry Special instruments > SYD-510Z-2 Automatic Condensation Pour Point Tester

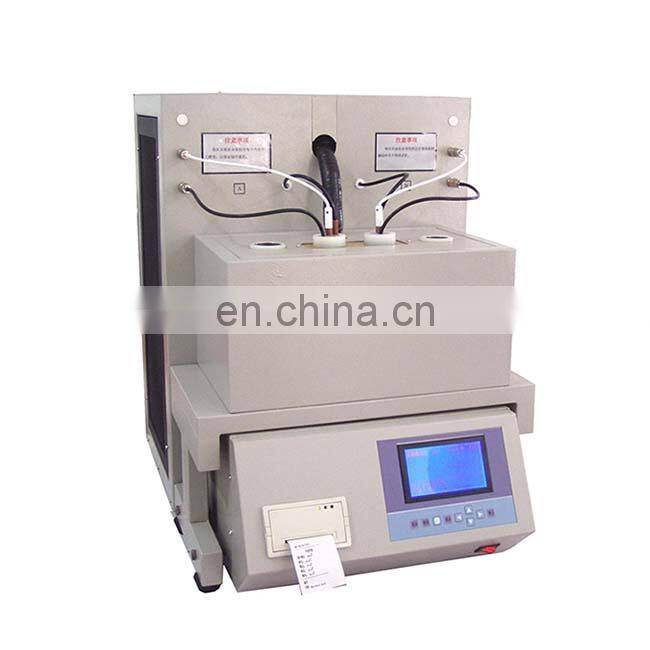

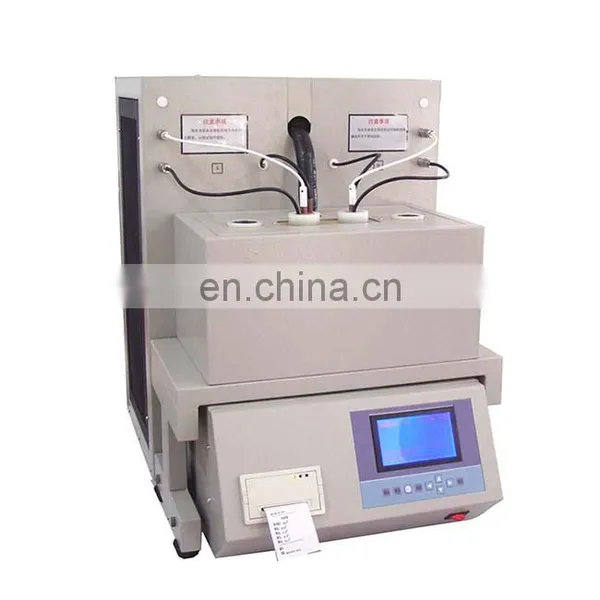

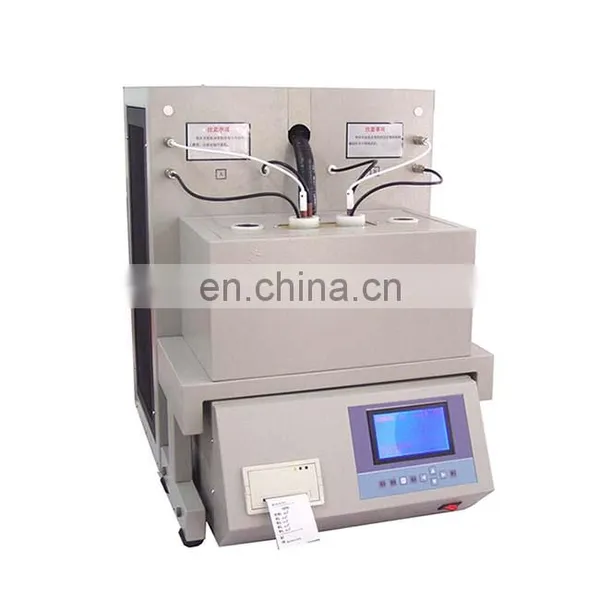

SYD-510Z-2 Automatic Condensation Pour Point Tester
- 20 Set / Sets per Month
- SHENZHEN
- T/T Credit Card
Product Details
| Brand Name: | SHCJ | Place of Origin: | Shaanxi, China | Model Number: | SYD-510Z-2 |
| Power: | Electronic |
Product Description
SYD-510Z-2 automatic condensation point pour point tester is based on the People's Republic of China Standard GB/T 510-1983 (Confirmed in 2004) "Determination of Condensation Point of Petroleum Products" and GB/T 3535-2006 "Determination of Pour Point of Petroleum Products". Designed and manufactured in accordance with the requirements of the Law, it is suitable for testing the freezing point and pour point of dark petroleum products, crude oil and other transparent or translucent petroleum products.
SYD-510Z-2 automatic freezing point pour point tester uses embedded control technology to integrate light, machine and electricity. It has compact structure, stable operation, beautiful interface, simple operation and high measurement precision. It realizes the experimental process. Fully automatic control is the ideal equipment for testing the pour point and pour point of petroleum products in laboratories and laboratories of petrochemical, electric power, railway, aviation, oil storage stations and national defense research departments.
Features:
1. An embedded control system is constructed with advanced high-performance single-chip microcomputers as the core to realize the automatic control of the entire experimental process.
2, set refrigeration, heating, pour point / condensation point detection in one.
3, use SMD surface packaging components to ensure the system has a high stability and anti-jamming.
4, 240 × 128 dot matrix LCD graphic display as a man-machine conversation window, Chinese interface, menu operation tips.
5. The micro-movement sensor detects the pour point/coagulation point of the sample, and the detection sensitivity is high.
6, built-in micro-heater to quickly warm up the sample to avoid heating the temperature of the cooling medium too high.
7. Automatically print experimental result data.
8, embedded 100 years real-time clock circuit, and equipped with lithium-ion batteries, no need to enter the experimental date.
9. Using high-precision temperature sensor, imported compressor and microcomputer control technology to realize the automation of oil pitting point and pour point test; and parallel test of two samples at the same time.
Technical Parameters:
1, temperature range: -70 °C ~ 100 °C; resolution: 0.1 °C.
2, temperature measuring element: Pt100 (Germany JUMO original temperature sensor).
3. Number of test samples: 2 ways.
4, detection methods: micro-motion detection.
5. Refrigeration mode: Cascade dual compressor refrigeration (France DANFOS).
6. Display mode: 240×128 dot matrix monochrome LCD display.
7, printout: 20 columns of Chinese thermal printing.
8, the whole power: not more than 2000W.
9, working power: (220 ± 10%) V, 50Hz ± 2Hz.
10, the use of the environment: Temperature: 15 ~ 35 ° C; humidity: 30% ~ 80% RH.
11, the instrument net weight: 80kg.
12. Dimensions: 550mm × 650mm × 700mm (length × width × height).
