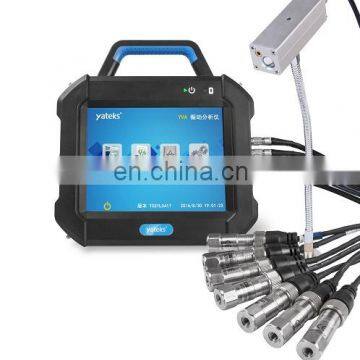

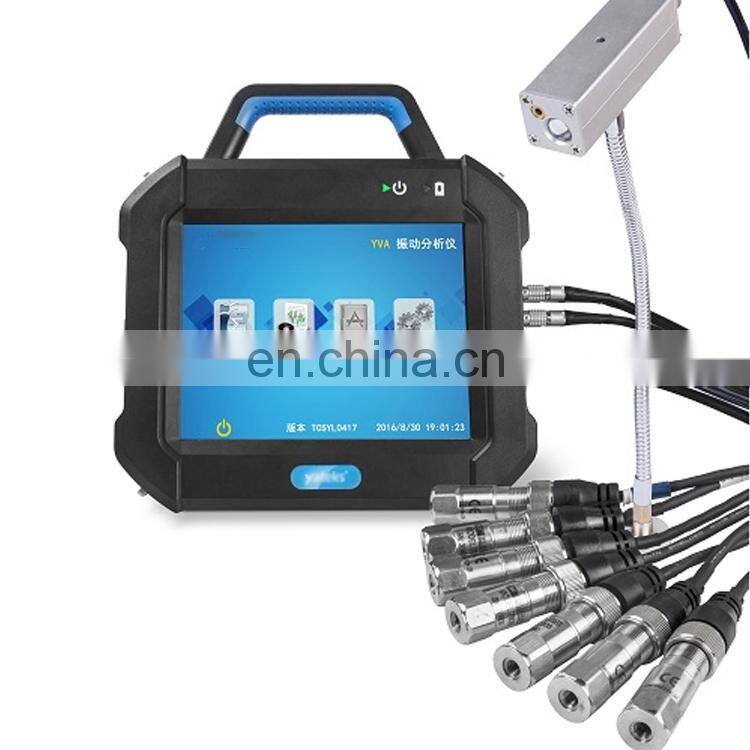

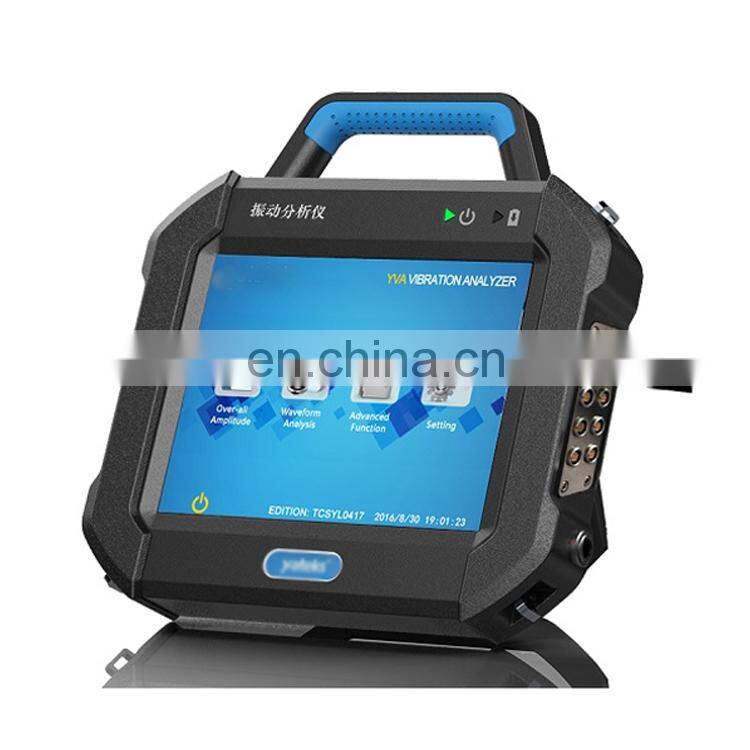

YVA-8 Multi-channel vibration analyzer
- 30 Set / Sets per Month
- shenzhen
- T/T Credit Card
Product Details
Brand Name: | YT | Place of Origin: | Shaanxi, China | Model Number: | YVA-8 |
Product Description
Introduction:
Adopt 8 "IPS high definition LCD touch screen, resolution as high as 1024*768, easy to operate. Used in all kinds of mechanical equipment monitoring with real-time monitoring, data playback and historical trend analysis function, through a variety of ways such as: time domain, frequency domain and axis path and to judge equipment state, can preserve the original data according to the field situation and characteristic value, the saved data for later playback analysis, eigenvalue analysis data for historical trend analysis. The system has built-in ISO 10816-3 vibration standard. the threshold alarm by oneself can be set according to the standard, and the alarm mode has indicator lights and buzzers.
Application:
Is mainly used for measurement, analysis and diagnosis of large industrial rotating equipment, such as: turbo-generator set, hydroelectric generating set, compressor, blower, motor, pump running status of equipment and its performance, predicting maintenance, to ensure the secure and stable operation of the equipment.
Product features:
1. 8 "IPS industrial HD LCD touch screen, resolution 1024*768
2. Accurate data collection, analysis and storage functions include time domain, frequency domain, axis trajectory, modal analysis, waterfall diagram and revolving speed indicator analysis
3. Eight vibration channel monitoring channels, one speed channel to meet the different needs
4. It is easy to carry, both online and offline choice
5. The interface is easy to operate, rich in built-in algorithms, and more freewill
6. The original data can be stored and played back and analyzed
7. The system development can be customized , expand channel number, support 485 or TCP communications
Specification:
Sampling parameters | 1.The sampling accuracy is 24 bits, 8 vibration channels and 1 speed channel 2.The maximum sampling rate of the single channel is 51.2kHz ing temperature: - 10 ℃ to 50 ℃ |
The acceleration sensor | 1.magnetic seat/thread connection, the sensitivity of the standard sensor is 100mV/g 2.The range of measurement is 0-50g;Frequency range of 0.4-10khz ing temperature: - 50 ℃ to 120 ℃ |
the tachometer | 1.It's non- contact, straight read 2.Measuring range : 25 mm - 1000 mm /7rpm-50000rpm ing temperature: - 10 ℃ to 50 ℃ |
Storage parameters | It can store raw data in TDMS format, also store the eigenvalue data continuously in the database |
Diagnostic function | Refer to ISO10816 standard, automatic threshold alarm |
Playback function | 1.waveform playback, simulated mp3 playback mode 2.The sound playback of vibration signal and the analysis function playback 3.The historical trend analysis of the characteristic value |
Dear Customer,
We,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history.
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents,bundant supply for various components & parts and special materials,full producing & processing equipments,strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA,Europe and South Africa and got good feedback on Alibaba.
We firmly believe that science and technology is no boundaries.
Our mission is to make every effort to contribute to all humanity.
