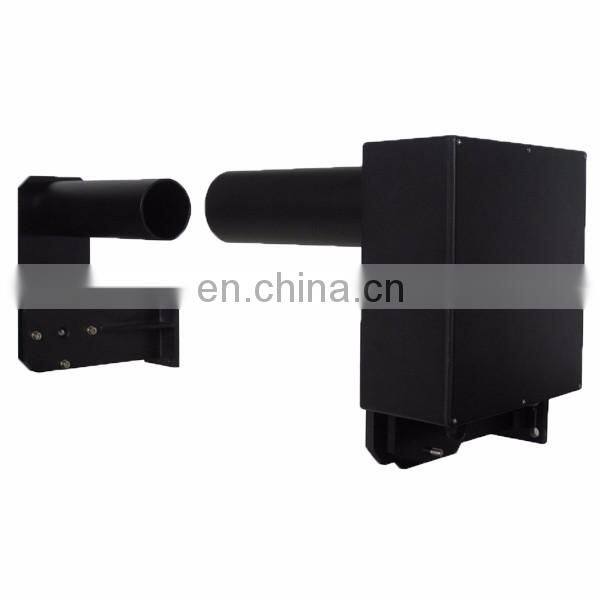

HY-DPM11 Stack Dust Concentration Opacity Analyzer Exinction Index Monitor

measurement system

Working principle:

Optical transmission method;

Light source:

Modulation of high intensity LED, its wavelength 637nm;

Measure range:

opacity:

0-20% or 0-100%

transmission:

0-100%

dust concentration:

(0-999)mg/M3

Accuracy:

± 0.4% of reading

Drift:

< 1% /month

Resolution:

0.1%;

Response time:

5 sec to reach max value

Temp of flue gas:

65 - 650℃

Optical path length:

0.5 - 10 meter standard type (other length can be customized)

Calibration:

Manual zero and range check, conform to USA EPA regulations;

linearity:

Equipped with three sets standard calibration lens

I/O

Analog output:

2 ways of 4-20mA output(Max.500Ω);

Digital output:

1 way RS485

Relay output:

Two way alarm relay(Alarm value can be set via operation panel)

Display:

32 bits LCD

Key board input:

6 pcs micro touch button input

Basic parameter

Material of body:

Aluminum material coated,conform to IP65;

Environmental temperature:

-30 ~ +70℃;

Power supply:

220V DC,10VA;

Blowback gas requirement:

Compressed air 80 L/h @ 1bar;
