PH7685 PH/ORP Monitor With 2+1 Isolated Relays - Ideal for PLC/DCS Integration in Chemical Plants

PH7685 PH/ORP Monitor With 2+1 Isolated Relays - Ideal for PLC/DCS Integration in Chemical Plants thumbnail-1
PH7685 PH/ORP Monitor With 2+1 Isolated Relays - Ideal for PLC/DCS Integration in Chemical Plants photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service:
Support
Transport Package:
Export packaging
Specification:
96*96*95mm (including 104mm panel)
Contact Supplier Request Quote Chat Now
Shanghai CAMP Environmental Protection Technology Co., Ltd.
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
After-sales Service Support
Transport Package Export packaging
Specification 96*96*95mm (including 104mm panel)
Origin China

  • Product Series: AMP pH/ORP Analyzer

  • Display: High-brightness LED nixie tube display (clear readability for long-distance observation)

  • Input Ranges:

    • pH: 0.00～14.00pH, accuracy ±0.01pH

    • ORP: -1000～+1000mV, accuracy ±1mV

    • Software Filtering: Achieves 90% full-scale filtering with variable limits of 0.4～20.0s

  • Temperature Performance:

    • Measurement & Compensation Range: -10～+110℃

    • Zero Adjustment Range: ±2℃

    • Zero Point Range: 0.0～10.0% of full scale

    • Sensitivity/Slope: 80.0～120.0% adjustable

  • Outputs:

    • Relays A/B: 2 SPDT relays, 5A 220Vac (passive contacts), support upper/lower limit control, delay time 0.0～99.9s, hysteresis function

    • Alarm Relay: 1 SPDT relay, 5A 220Vac (passive contacts), with hysteresis, delay 0-99.9s, and upper/lower limit control

    • Auto-Clean Relay: Supports fully automatic, auto+manual control modes

    • Analog Current: 0-20mA/4-20mA (isolated), response time 2.5s to reach 98%

    • Digital (Optional): RS232

    • Second Current Output (Optional): Identical function to the first channel

    • Relays:

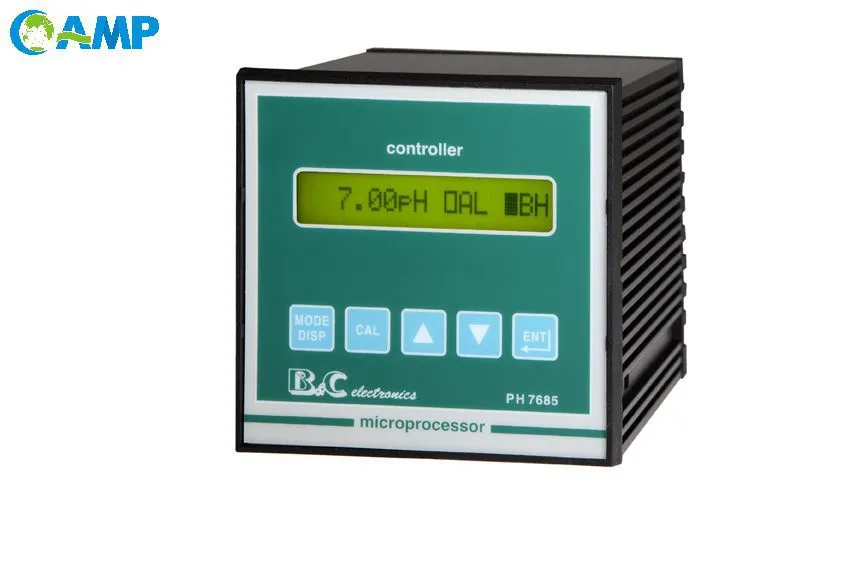

  • PH7685.jpg

  • Power Supply: 110/220Vac ±10%, 50/60Hz (other power options available), power consumption 5VA

  • Isolation: Input to output 4kV, compliant with IEC348; isolation voltage

  • Physical Specifications:

    • Housing Material: Cast aluminum

    • Dimensions: 96×96×155mm

    • Protection Class: IP54 (housing); IP65 (with BC931.2 protective enclosure, engineering plastic with large transparent front panel, 270×180×238mm)

    • Electrical Connection: Pluggable terminal block

    • Weight: 850g

    • Installation: Panel-mounted, 92×92mm cutout

  • Operating Environment: Temperature -2～50℃, humidity

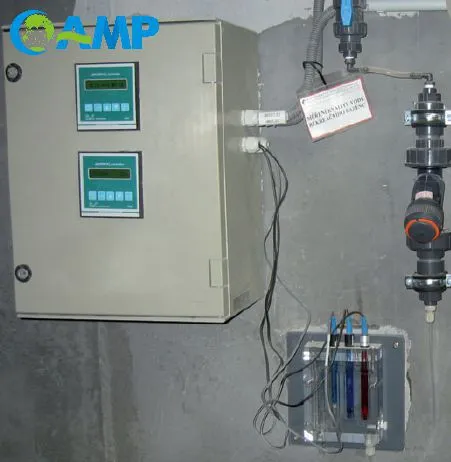

  • CL7685 现场图.jpg

Core Advantages

  • Ultra-Precision Measurement & Filtering: Boasts 0.01pH pH resolution and 1mV ORP resolution, paired with software filtering (0.4～20.0s variable limits) to eliminate interference, ensuring data stability in complex environments.

  • Wide-Range Temperature Adaptability: Covers -10～+110℃ for measurement and compensation, with adjustable zero point and sensitivity (80.0～120.0%), maintaining accuracy under extreme temperature fluctuations.

  • Multi-Output & Intelligent Control: Features isolated 4-20mA current output, optional RS232 digital output, and multi-channel relays (with delay/hysteresis functions). The auto-clean relay reduces manual maintenance workload.

  • Robust & Versatile Design: Cast aluminum housing (IP54) and optional IP65 protective enclosure suit harsh industrial environments. Broad power supply compatibility (110/220Vac ±10%) and pluggable terminals enable easy integration.

  • Fast Response & Safety Isolation: Achieves 98% response in 2.5s for current output; 4kV input-output isolation meets IEC348 standards, ensuring operational safety.

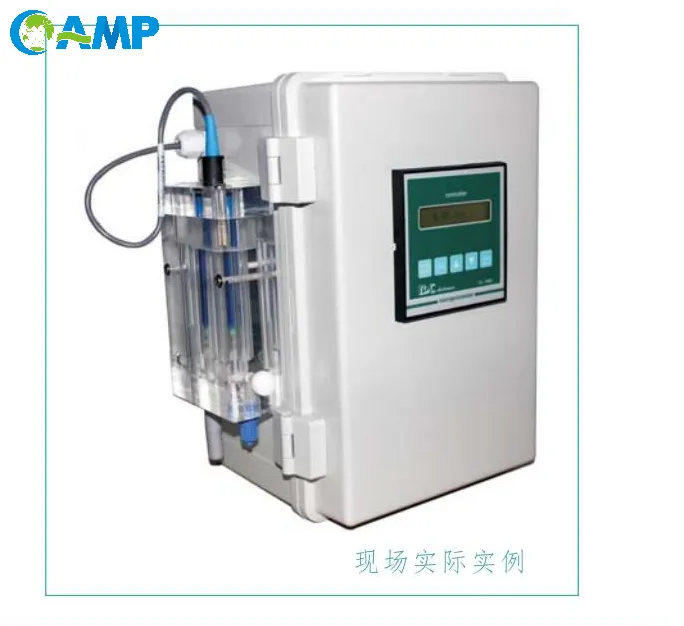

  • CL7685现场实例

Application Scenarios

  • Heavy Industry Water Treatment: Ideal for steel, chemical, and mining industries to monitor pH/ORP of process water and wastewater. Multi-relay control (with delay/hysteresis) triggers dosing or cleaning systems, ensuring compliance with strict discharge regulations.

  • Extreme Environment Monitoring: Suitable for outdoor or high-temperature/pressure scenarios (e.g., geothermal water monitoring, industrial cooling systems) with -10～+110℃ temperature compensation and IP65 protection.

  • Pharmaceutical & Biotechnology: Used in pharmaceutical synthesis and bioreactor processes for precise pH/ORP control. RS232 digital output enables seamless connection to SCADA systems for data logging and remote control.

  • Food & Beverage Quality Control: Applied in brewing, dairy, and canned food production. Auto-clean relay maintains electrode performance, while high precision ensures product consistency and safety.


Product Tags: PH7685 pH/ORP Analyzer , Isolated Output pH/ORP Transmitter , Auto Temp Compensation pH/ORP Monitor
