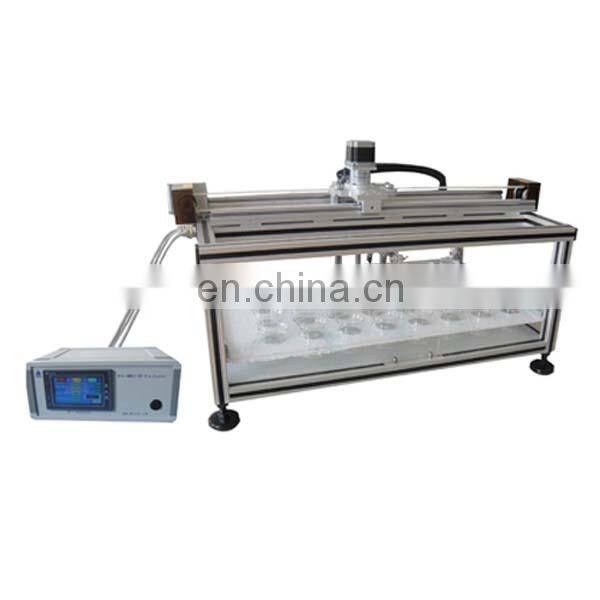

PTL-MM02-8P Pulling Coating Machine

Introduction:

PTL-MM02-8P Tire Coating Machine is a precision equipment designed for studying liquid-phase growth film. It is used to grow thin films by vertically pulling samples in the liquid phase. It is widely used in universities, research institutes, etc. Research areas. The machine adopts high-precision speed control system and touch screen parameter input end, and simultaneously realizes automatic control of 5 sample pulling films.

Features

1,8 stations can be set with different pulling speed, dwell time and drying time

2, a wide range of applications.

Technical Parameters

Power supply: 220V 50Hz

X-axis speed: 500mm/min-5000mm/min

Z-axis speed: 1mm/min-200mm/min

Travel: 65mm

Sample size: 75mm×25mm×2.5mm

At the same time pulling the sample number: 5

Lift station: 8

Stay and dry time: 1s-999s

Cycle times: 1 -999 times

Size: 900mm×520mm×540mm;

Weight: 20kg

Installation conditions:

This equipment is required to be used at altitudes below 1000m, temperature 25°C±15°C, and humidity 55%Rh±10%Rh.

1, water: no

2, electricity: AC220V 50Hz, must have a good ground

3, gas: no

4,Workbench: size 800mm×600mm×00mm, load-bearing more than 200kg

5, ventilation device: no

Standard accessories:

Loading cup fixing plate 1

Clip fixing plate: 1

Loading cups: 40

Clips: 5

Protective cover: 2

Optional accessories

1, according to your needs can be customized different size of the carrier cup and carrier cup holder

2, constant temperature water tank (power: 800W; constant temperature: RT-70 °C; temperature accuracy: without considering the environmental impact of ± 1 °C; volume: 25L)
