SYD-507 Dielectric Insulating Oil Breakdown Voltage Tester/BDV Tester

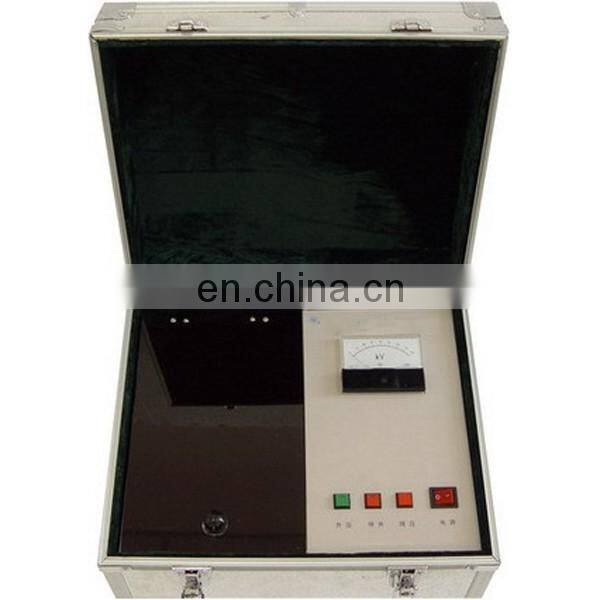

SYD-507 Dielectric Insulating Oil Breakdown Voltage Tester/BDV Tester photo-1
US$ 3,100 - 3,400 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Changji
Place of Origin:
Shaanxi, China
Model Number:
SYD-507-X
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Changji
Place of Origin Shaanxi, China
Model Number SYD-507-X
Power Electronic

SYD-507  Insulating Oils Breakdown Voltage Tester

Brief introduction

The instrument is designed and made as per national standard of People’s Republic of China GB/T 507 Insulating liquids-Determination of the breakdown voltage at power frequency and industrial standard of People’s Republic of China DL429.9-91, and the characteristics of similar instruments all over the world.



Features

Adopting specially designed solid voltage increasing technologies, the instrument is intuitive, simple and convenient to operate, accurate, beautiful, and it has the reasonable structure, excellent repeatability and low system error. The instrument has been widely used in the fields of railway, aviation, power plant, petroleum, and scientific research institutes, etc to determine the breakdown voltage of insulating oils. It is especially suitable for determination on site.

Technical parameter

1. Output power: 2kVA

2. Measuring range: 0~75 KV

3. Voltage increasing speed: 3 KV±10%/s

4. Distance between electrodes: 2.5 mm

5. Power supply: AC 220 V±10%, 50 Hz

6. Dimension: 330 mm×350 mm×360 mm



SYD-507 dielectric insulating oil breakdown voltage tester/BDV Tester



 Dear Customer,

We,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history.

Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing,bioscience,medical apparatus and instruments,internet technology and some frontier science.

Through a long-time development,we own a national resources system of various professional talents,abundant supply for various components & parts and special materials,full producing &processing equipments,strong Technological standardization and a complete quality assurance system.

If you need OEM or ODM in manufacturing,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba.





We firmly believe that science and technology is no boundaries.

Our mission is to make every effort to contribute to all humanity.

Your earlier friendly enquire from us would be highly appreciated.Thanks in advance!
