DMT-E Metal Coating Thickness Gauge

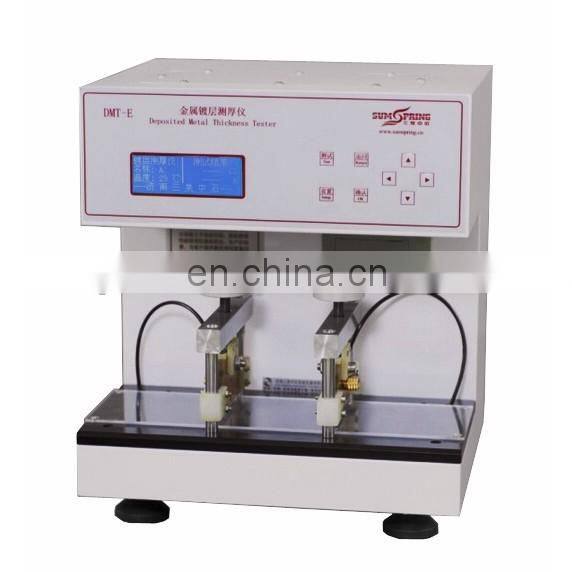

DMT-E metal coating thickness gauge

Introduction

DMT-E metal coating thickness for a variety of aluminum film , metallized paper test resistance , uniformity, thickness values of the test , the testing process convenient short , the operator simply provides a good crop size specimens , placed in the instrument measuring position , the instrument can automate the entire course of the experiment , high precision short process , applicable to all inspection agencies and packaging materials manufacturers.

Features
1. Microcomputer control, LCD liquid crystal display , PVC operation panel , user-friendly quick , intuitive view the test data and results
2. Temperature display
3. High-precision contact measurement
The real-time data display resistance , the thickness value
5. Test results memory function , user-friendly query
6. Configure the micro-printer, fast printing sheet resistance value , thickness value , evenness

Test Principle
Sample metal coating for a period of a metallic conductor , according to Ohm's law provides metal coating resistance measuring the length and width of the sample, in order to indicate the thickness of the sheet resistance of the metal coating or directly calculate the thickness.

Technical  parameters
Thickness Measurement Range : Thickness 90-570A
Sheet resistance measurement range : 0-20Ω
Sheet resistance measurement accuracy : ± 1%
Sample size : 100 × 100mm
Clip -like precision : ± 0.1mm
Temperature range : 0 ~ 50 ℃, accuracy ± 1 ℃
Dimensions : 370mm × 330mm × 450mm ( LWH )
Weight : 19kg
