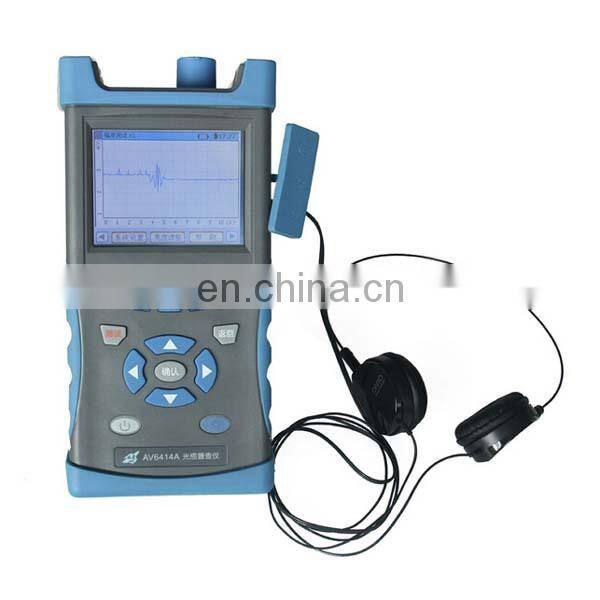

AV6414A fiber cable survey instrument
- 100 Set / Sets per Month
- shenzhen
- T/T Credit Card
Product Details
Brand Name: | CETC41 | Place of Origin: | Shaanxi, China | Model Number: | AV6414A |
Product Description
AV6414A fiber cable survey instrument
Brief introduction
AV6414A cable survey instrument, intelligent instrument for optical cable line is specialized in optical communication system construction and maintenance and design, suitable for the accurate identification of cable in the manhole, tunnel and overhead, pipeline environment, is a new instrument which cable construction, acceptance and maintenance technology tailored personnel. In optical cable maintenance, first by using the OTDR test fault point position of optical cable, and then along the cable along to find the fault point location, and carry out maintenance. If there are a lot of other cable in the fault location, you need to identify cable, once recognition is wrong, it will cause the human communication interruption. The traditional recognition methods of cable is generally bent, frozen, pull, the operation is tedious and prone to damage optical fiber.
AV6414A cable survey instrument adopts the remote vibration monitoring and recognition model, to each point along the vibration monitoring cable, is a new nondestructive testing technology. The use of this instrument, line maintenance personnel only need a cable access to the AV6414A test end to be measured, and then tap the cable in the distal, AV6414A test instrument to the audio and video signals in two ways to fast, accurately find the target cable, can greatly improve the working efficiency, reduce working intensity and maintenance cost.
AV6414A cable survey instrument with the industry's most for double color double integration of the mould design and advanced processing technology, novel appearance beautiful, durable, operation is very convenient. The machine is equipped with a lithium battery, large capacity, working 8 hours or more, suitable for long time work in the field.
Features
1.industry's most advanced double -color mold process integration , durable ;
2.handheld , easy to carry ;
3.both audio and video output format ;
4.high detection sensitivity , monitoring distance ;
5.Head light output end face clean and convenient ;
Technical Parameters
Operating wavelength | 1550nm±30nm |
maximum light output power | -4dBm |
Detection Dynamic Range | ≥25dB |
SNR | 30dB |
Optical connector | FC/APC |
Signal processing mode | High sensitivity, low noise |
Output mode | Video: perturbation amplitude ( digital waveform display ) |
External Interface | Headphone jack |
Power | <8W |
Power supply | AC / DC adapter : voltage range : 100V ~ 240V (1.5A), the frequency of the allowable range : DC : 19V ± 2V (2A) |
Dimensions | 210×100×60(mm) |
Weight | About 0.9kg |
