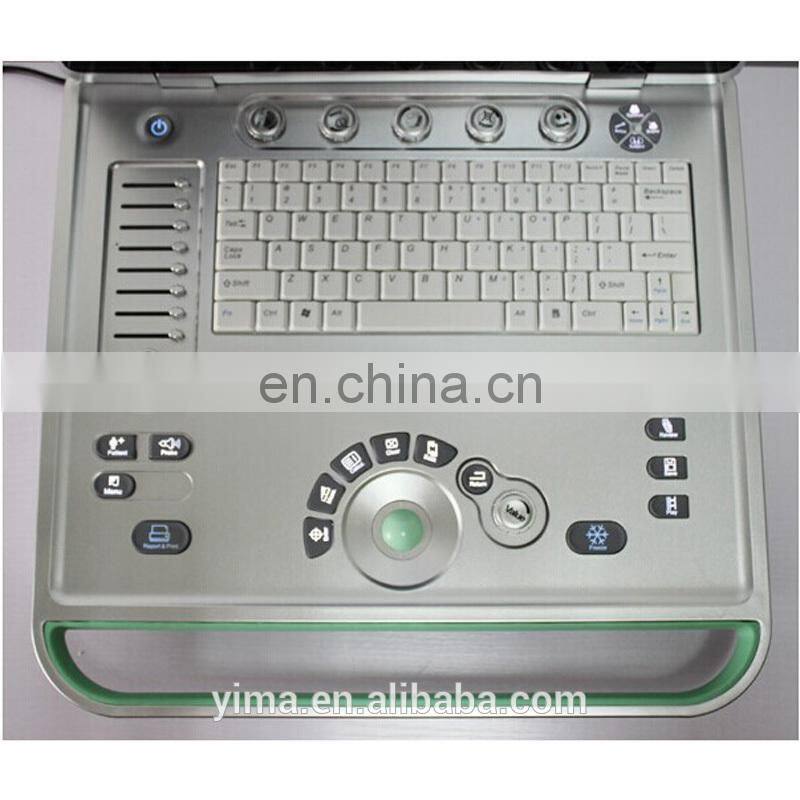

Medical diagnostic system cheaper Portable BW 3D 4D Live ultrasound Scanner Machine

Name: Medical diagnostic system cheaper Portable BW 3D 4D Live ultrasound Scanner Machine
Brand: YIMA
Price: USD $5,898 - 6,000 / Set

FOB Price

USD $5,898 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

YIMA

Place of Origin:

Guangdong, China

Model Number:

YM-DUE-141

Product Description

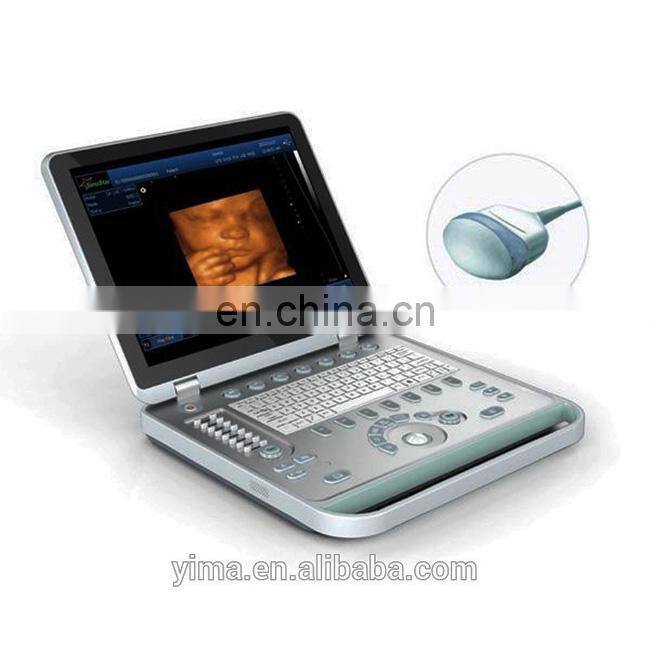

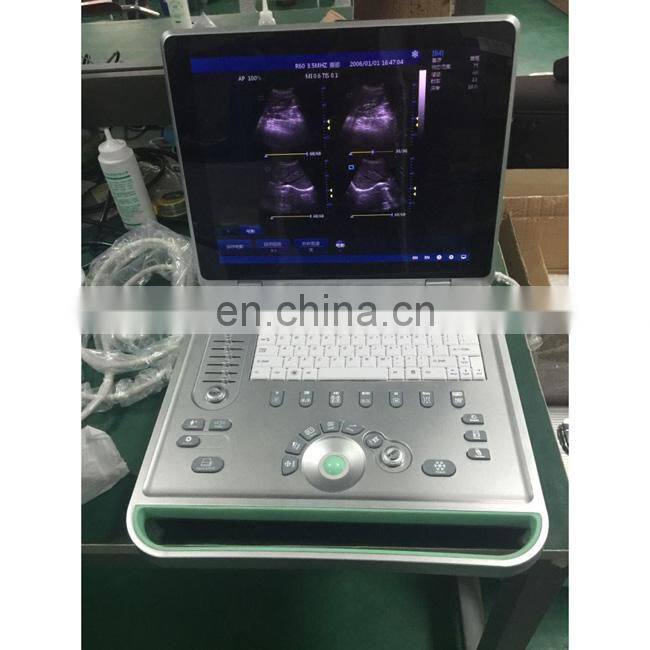

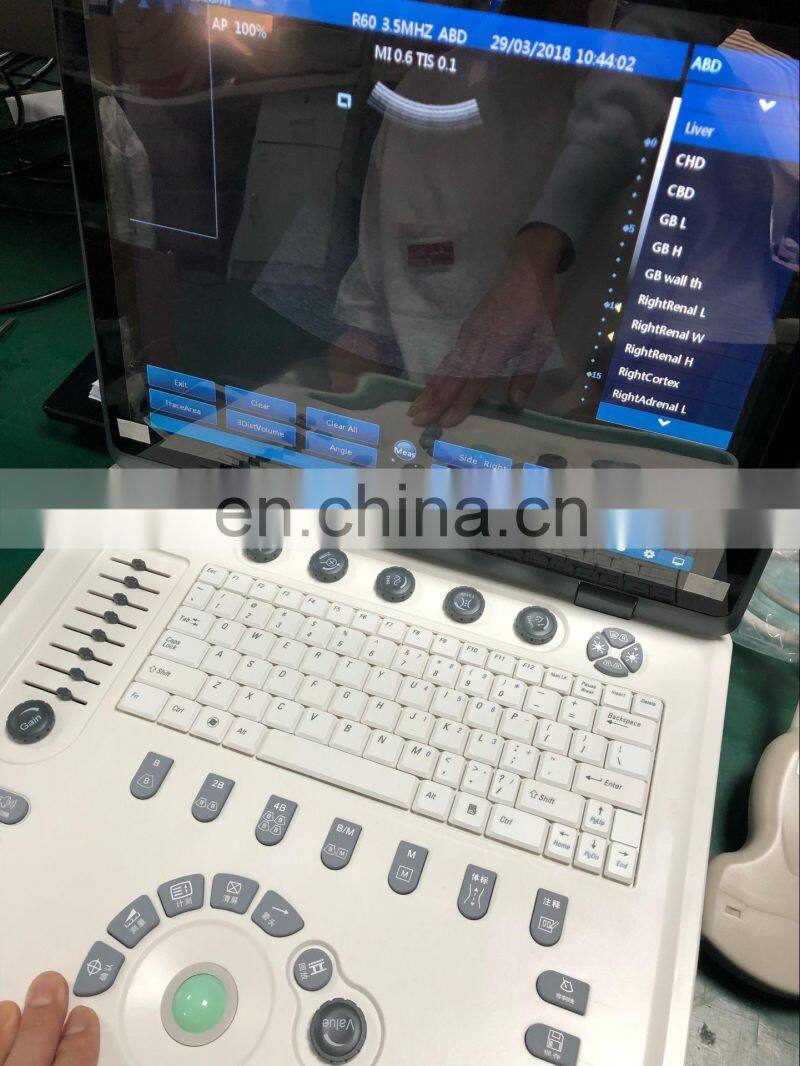

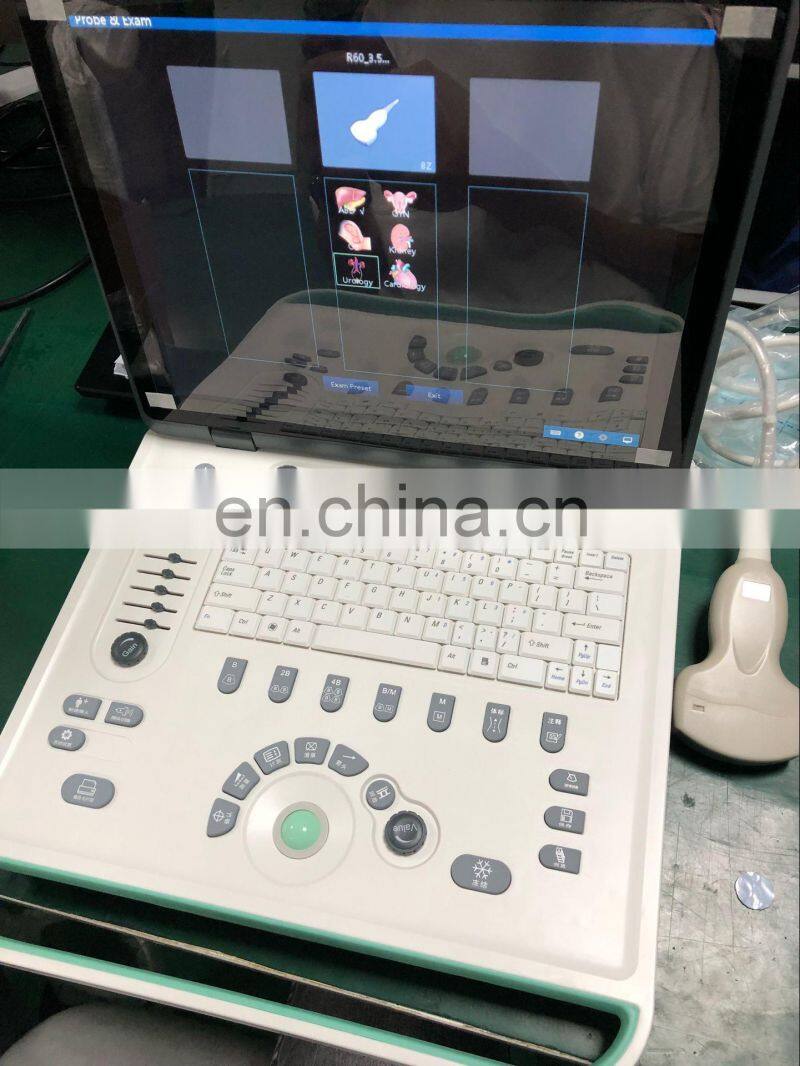

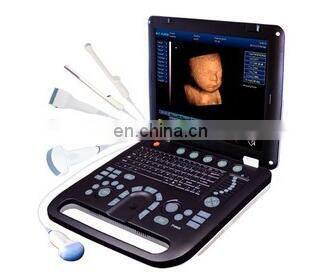

Portable Ultrasound Scanner machine Laptop ultrasound

Product Description

Feature:
-4D imaging function

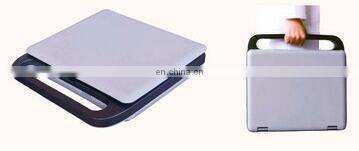

-15 inch LED screen, pretty, portable and light
-1 probe connector
-Full digital imaging technology, crystal-clear Image
-PC based, abundant functions
-Powerful image and report management
-Large volume storage image and cineloop
-DICOM display and transfer(optional)
-Compatible with laser/inkjet printers
-Built-in battery(Work 5 hours)

Specification:
-Monitor: 15 inch LED
-Display mode: B, B+B, B+M, M, 4B, 9B
-Image gray scale: 256 level
-Cine loop: Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M
-Image storage: >50,000 frames
-Scan angle: 60-160 degrees, depending on probe
-Scan depth: 20mm~240mm
-Dynamic range: ≥100dB, 4-level adjustable
-Image flip: Up/down, left/right, black/ white, 90/180/270°
-Zoom: Continuously, real-time dynamic PIP
-Focus position: Adjustable
-Focal space: Adjustable
-Measurement: Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc.
-Software packages: General, OB, GYN, cardiology, urinary, small organ
-Notation: Date, time, name, sex, age, doctor, hospital name, full screen notation
-Body mark: 43 types
-Peripheral port: Video, S-video, USB2.0, DICOM3.0, VGA
-Battery volume: 8,000mAh
-Power consumption (MAX): 75VA
-Dimension: 35.5*36.6*7.5 CM
-Net Weight: 5kgs

Standard Configuration:
One Main Unit, One 3.5MHz/R40 volume probe, One Power adapter.

Optional:

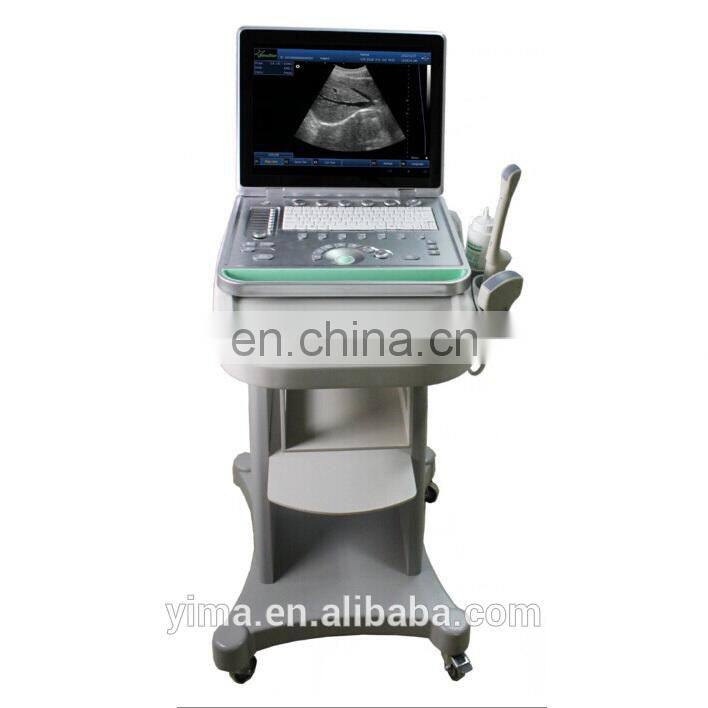

Convex, Linear, Trans-vaginal, Micro-convex,Rectal Probe; DICOM3.0; Trolley; Laser Printer.

Optional:
Convex, Linear, Trans-vaginal, Micro-convex,Rectal Probe; DICOM3.0; Trolley; Laser Printer.
