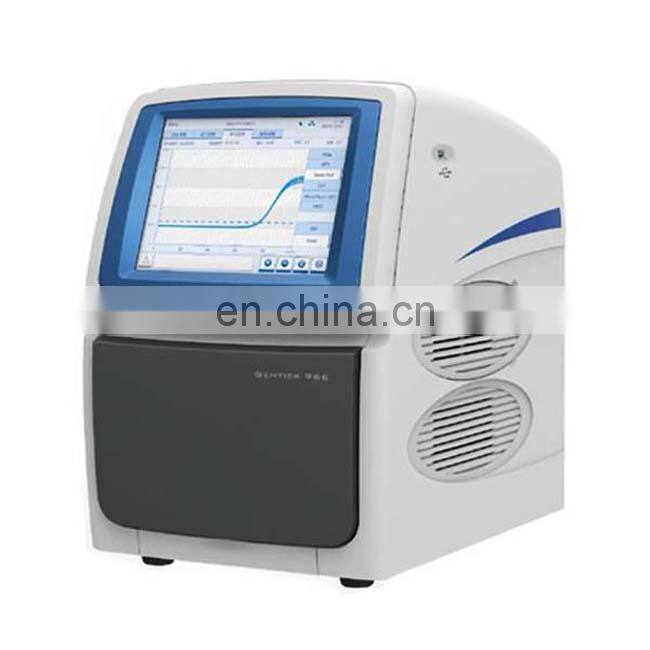

Gentier 96E Automatic Medical PCR Instrument

Introduction:

Fully automated medical PCR analysis system is the latest generation of Tianlong Technology, tailored to meet the experimental needs of high-end users. This product has many advantages such as scientific and efficient temperature control system and optoelectronic system, powerful and easy-to-use software analysis functions, and humanized control methods. It is easy to implement downstream multiple gene detection, quantitative analysis, SNP analysis, HRM analysis and other applications.

Features:

1. Six-channel synchronous detection

 Five kinds of conventional excitation and detection channels, compatible with most fluorescent dyes and probe types, enabling detection of absolute quantification, relative quantification, and genotyping; introduction of the FRET (Fluorescence Energy Resonance Transfer) channel enables users to have low fluorescence background values The need for high-sensitivity detection makes detection more convenient, professional, and accurate;

2. Diversified operation methods

Based on the one-to-one control of the classic external computer, it has creatively introduced the remote operation of the local area network and local operation mode of the instrument. The built-in 10.4-inch touch screen is equipped with self-developed control software, experimental settings, real-time monitoring of experiments, and instrument settings. Other operations are more convenient.

3. Accurate and efficient temperature control system

Based on the Peltier effect, six semiconductor cooling sheets are arranged under the Block. The temperature uniformity, accuracy, and temperature rise/fall rate are all significantly improved, shortening the experimental period; realizing the temperature gradient function, eliminating the need for annealing temperatures in the past. Repeatedly explored to improve the efficiency of the experiment.

4. Scientific and reasonable optical system

The fluorescence excitation light source adopts the bright long-life LED, and the fluorescence detection system is free of maintenance for life;

The optical system is located on the top of the instrument. During operation, the top is excited and scanned. There is no need to worry about the adverse effects of dust in the hole.

The compact optical system integrates six fluorescence detection channels to achieve a number of technological breakthroughs. At the same time, it increases the temperature control to ensure the accuracy and stability of fluorescence detection.

It takes only 7 seconds to complete a hole-by-hole scan of 96 channels of 6 fluorescence channels, with high efficiency and no fluorescence edge effect.

5. Powerful and complete software features

According to the needs of users in different industries, it has various function modules such as absolute quantification, relative quantification, SNP analysis, HRM analysis, etc. The custom report template function highlights the fine and professional detection reports; the rights management function further protects your experimental data and prevents Leakage to ensure data security.

6. Intimate auxiliary functions

Real-time storage of experimental data during experimental operation;

Automatic power-off protection function, to avoid the loss of experimental data and waste of reagents due to abrupt abnormal power-off, automatic execution of unfinished experiments after power restoration, and the formation of a complete experimental data report;

With the intelligent troubleshooting function, the system can intelligently determine the type of fault and provide the scope of maintenance and inspection, which facilitates the later maintenance of the equipment.

7. Reserve fully automated features

The sample bin can be ejected and closed by software control, leaving an interface for the loading of the PCR plate in the fully automatic nucleic acid detection workstation at the later stage; the open LIS port is compatible with the current mainstream LIS system, and is a station for sample information and experimental data. Conduction and integration to make technical preparations.

Technical Parameters:

Light source: High-brightness long-life maintenance-free LED light source

Detector: Photodiode (PD)

Detection position: top excitation, top scan

Detection method: 6 fluorescence channels scan at the same time by hole, no fluorescence edge effect

Detection duration: Complete detection of 96 holes in 6 fluorescence channels within 7 seconds

Excitation wavelength: Channel 1: 465 nm Channel 2: 527 nm

Channel 3: 580nm channel 4: 632nm

Channel 5: 680 nm channel 6: 465 nm

Detection light wavelength: Channel 1: 510 nm Channel 2: 563 nm

Channel 3: 616 nm Channel 4: 664 nm

Channel 5: 730 nm channel 6: 616 nm

Fluorescence Detection Dynamic Range: The fluorescence detection dynamic range can be adjusted according to the reagent

Hot cover temperature: Room temperature ~110°C

Constant pressure hot cap: Compatible with different heights of consumables

Module temperature: 0°C~100°C

Module temperature control principle: Peltier effect, semiconductor refrigeration technology

Maximum heating rate: 6.1°C/s

Maximum cooling rate: 6.1°C/s

Temperature uniformity: ≤±0.1°C

Gradient temperature width: 1°C to 40°C

Gradient temperature: 12 columns

Operating System: Win XP, Win 7, Win10

Interface Type: 1 Ethernet port, 1 front USB, 2 rear USB

Dimensions: 355mm × 480mm × 485mm (W × D × H)

Weight: 30kg

Input power: AC220V, 50Hz

Power Consumption: 900VA

Working environment: Temperature: 10°C~30°C

Relative humidity: 20% to 85%
