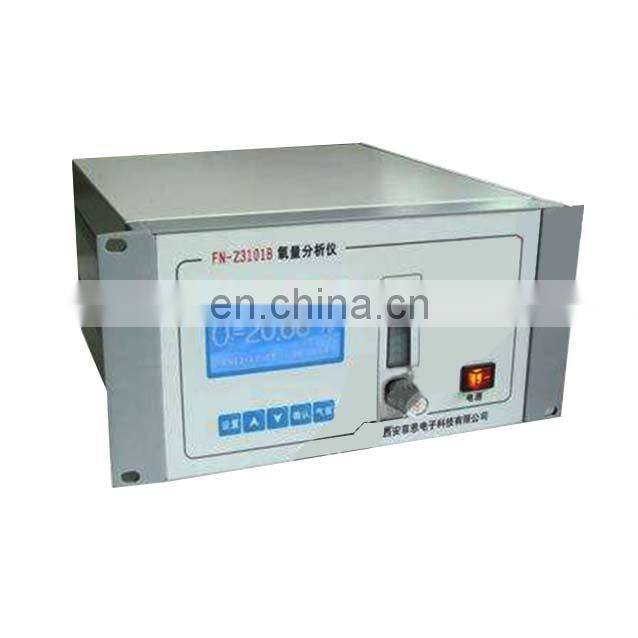

FN3101C Online Insitu Insert Plug-in Type Zirconia Oxygen Analyzer Meter

Brief introduction

FN3101C Zirconia Oxygen Analyzer (plug-in type) is composed of an intelligent signal converter with microprocessor as its core and a zirconia detector and used for online detection of oxygen content in the gas detected.

Application fields:

Automatic analysis on oxygen content in the exhaust smoke from electric, metallurgical, heating, building material, electronic, power station, and industrial boilers and various combustion systems

Features

Zirconia detector adopted, featuring long service life, stable performance, and quick response;

Alarm point can be set at will within the whole range;

Alarm for out-of-control temperature;

Display switchable between oxygen content and operating furnace temperature.

Technical parameters

1. Measurement range: 0.0~5.0%/10%/25% O2 optional;

2. Accuracy: ±2% F.S;

3. Stability: Zero drift ≤ ±2% FS/7d;

Span drift ≤ ±2% FS/7d;

4. Repeatability: ≤ ±1.5%;

5. Response time: T90 ≤ 5 sec.;

6. Operating temperature: 700℃;

7. Preheating time: ≤ 15 min;

8. Output signal: 4~20 mA;

9. Operating power supply: 220 VAC±10%, 50 Hz±5%;

10. Overall dimensions of secondary meter: Panel-mounted: 160 mm (W) × 80 mm (H) × 250 mm (D);

                                    Wall-mounted: 325 mm (W) × 250 mm (H) × 110 mm (D);

11. Mounting dimensions of secondary meter: Panel-mounted: 150 mm (W) × 75 mm (H);

                                      Wall-mounted: 310 mm (W) × 128 mm (H);

12. Detector length: 0.4 m, 0.6 m, 0.8 m, 1.0 m, 1.2 m, 1.5 m (optional)
