TP107 Online Phosphate Analyzer

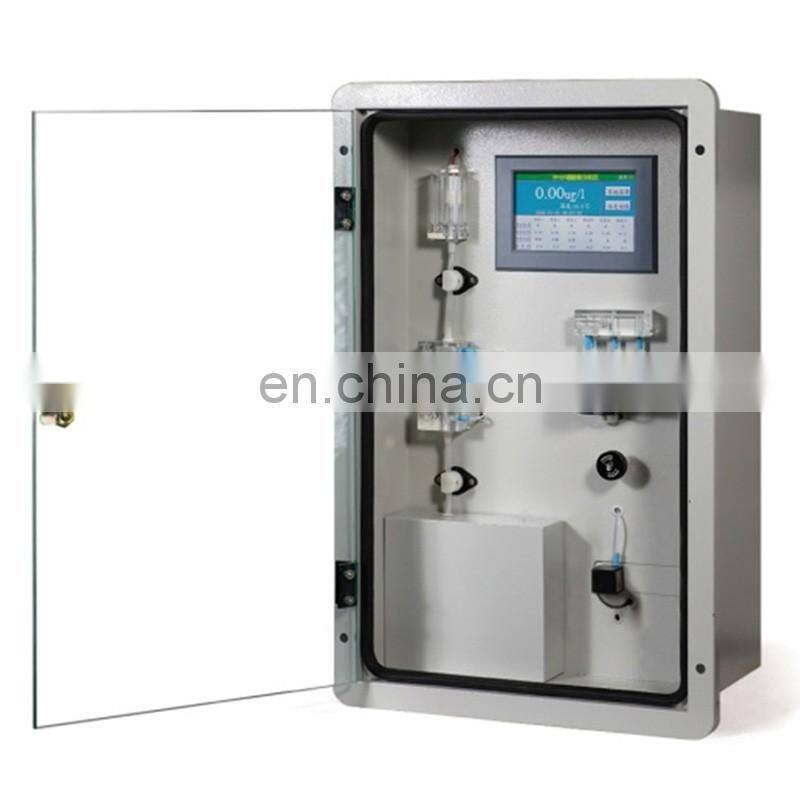

TP107 Online Phosphate Analyzer photo-1
US$ 2,960 - 3,150 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
YIMA
Place of Origin:
Shaanxi, China
Model Number:
TP107
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name YIMA
Place of Origin Shaanxi, China
Model Number TP107
Product Description

TP107 Online Phosphate Analyzer

• Applications:

• Power
• Chem or Petrochemical
• Pulp and Paper

Features:

• Programmable multi-stream switching up to 6 streams, cost saving.
• Imported High precision electromagnetic valve---long life, accurate and reliable measurement
• Set period time according to user for two sample automatic calibration----ensured the stability of the operation and reduced the workload of maintenance.
• Color LCD display, different color display real time curve and history curve of each channel at the same screen.
• Previous measurements can be stored up to one month-- For tracking convenience
• Monochromatic cold light source
---long life, stable and reliable
。 Programmable Multi-channel high precision current signal output--- Facilitate subsequent connections and automatic dosing.
• Panel mount, exquisite structure, easy to operate and maintenance.

Specifications:

Measurement principle
Phosphorus vanadium molybdenum yellow photoelectric colorimetry method
Display
7.0 inch color LCD display in English.
Measurement Range
(0-20.00)mg/L, (0-50.00)mg/L (optional)
Measurement Cycle
About 3 min/channel
Response Time (T90)
<4 min
Accuracy
±2%F.S
Repeatability
±1%F.S
Stability
Chemical drift: ±1%F.S/24h
Temperature
5 to 50 ℃
Sample Condition
Flow: (10-40)L/h
Impurity
Solid contents in sample: ≤5μm (no gel and grease)
Ambient Temperature
5 to 45℃
Ambient Humidity
≤90%RH (no condensation)
Reagent Consumption
3L/month
Alarm Outputs
No flow, high alarm and low alarm (each channel output individually)
Analog Output
(0-10)mA, (0-20)mA or (4-20)mA,optional (each channel has its isolated output)
Power Supply
AC(165-265)V, (50) Hz
Power Consumption
About 100W
Overall Dimension (mm)
720(H) × 460(W) × 270(D)
Cutout Dimension (mm)
645 × 410
Net Weight:
24kg
Detailed Images
Packing & Delivery

Standard packages

Serial No.
Item
Specification
Quantity
Remark
1
Phosphate Analyzer
TP107
1 piece
Single channel
2
Standard sample bottle
2 pieces
Put inside of the meter case
3
Reagent bottle
1 piece
Put inside of the meter case
4
Water sample filter
2 pieces
Choose and order parts
5
Water sample connection pipe
1 meter
1 piece
6
Soft and hard pipe Connecting adapter
Ø6
1 set
7
Exhaust pipe
1 piece
With joint
8
Front door key
1 piece
Big
9
Back door key
1 piece
Small
10
Installation clip
4 pieces
11
Phosphate mother liquor
60ml
1 bottle
1mg/ml
12
Manual
TP107
1 piece
13
Certificate of inspection
TP107
1 piece
14
Warranty card
TP107
1 piece
