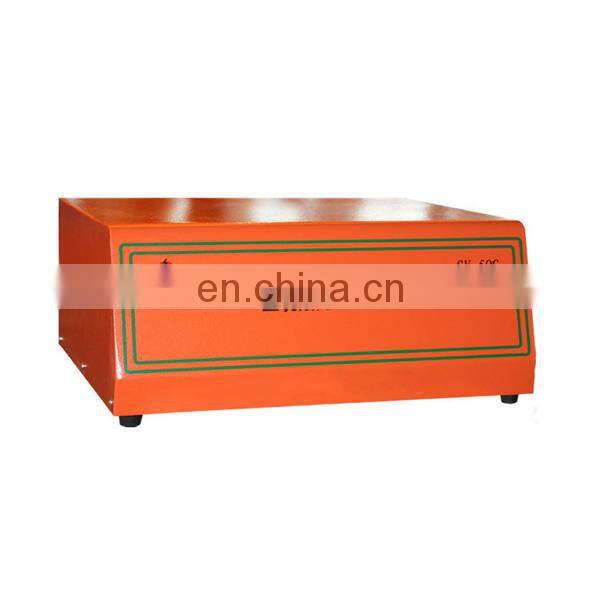

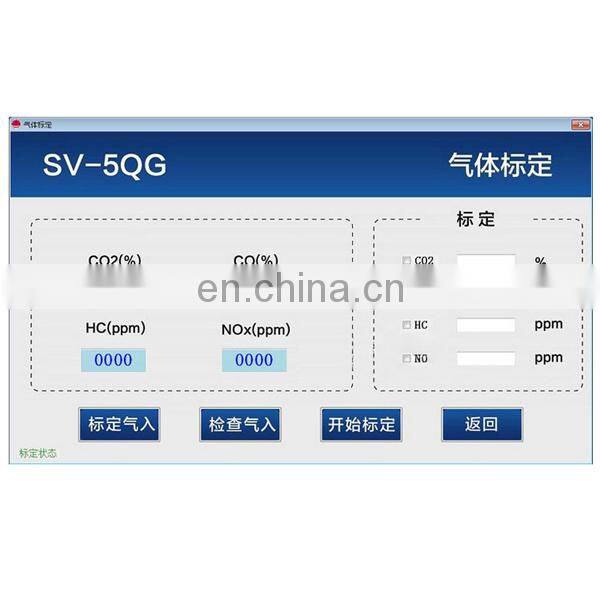

SV-5QG Car Exhaust Analyzer Working Conditions Exhaust Analyzer

Introduction:

SV-5QG car exhaust gas analyzer (hereinafter referred to as the instrument) uses the principle of non-divisional infrared absorption method, by microcomputer analysis, can be directly measured vehicle exhaust emissions of HC, CO and CO2 concentration; electrochemical principle of measuring exhaust In the concentration of NO and O2, and based on the measured concentration of CO, CO2, HC and O2 calculated excess air coefficient λ. The instrument imported advanced foreign technology, assembled by a complete set of imported movement, with accurate measurement, easy operation, high durability, fast detection speed and other advantages, and equipped with a microprocessor, the use of liquid crystal display, intelligent Chinese interface instrument . The instrument also equipped with other features such as inductive tachometer, temperature sensor probe and built-in mini-printer for users to choose from, while also increasing the storage function, can detect the exhaust gas at the same time detect the engine speed, lubricant temperature and storage, printing Current test result.

The instrument out of real-time testing functions, but also in accordance with national standards "GB / T 18285-2005 ignition engine exhaust emission limits and measurement methods (double idling method and simple conditions)" double idle method Of the provisions of the preparation of a double idling test conditions under the special procedures for the detection process of automatic control. Therefore, it is very convenient to measure with double idle discharge. The instrument is small, light weight, can store 500 sets of measured emissions test data, especially for roadside inspection. Testing for automotive manufacturers, motor vehicle testing stations, car repair shops and other use.

Technical Parameters:

1. The use of environmental conditions

Temperature: -5 ~ 40 ℃

Humidity: not more than 95%

Atmospheric pressure: 70.0 ~ 106kPa

Power: AC 220V ± 10%; 50Hz ± 1Hz

2. Measuring range

HC: 0-10000    10-6 (ppm) vol

CO: 0-10.0     10-2 (%) vol

CO2: 0-20.0    10-2 (%) vol

O2: 0-25.0      10-2 (%) vol

NO: 0-5000     10-6 (ppm) vol

Speed: 0 ~ 10000rpm

Oil temperature: 0 ~ 120 ℃

3. Sampling methods

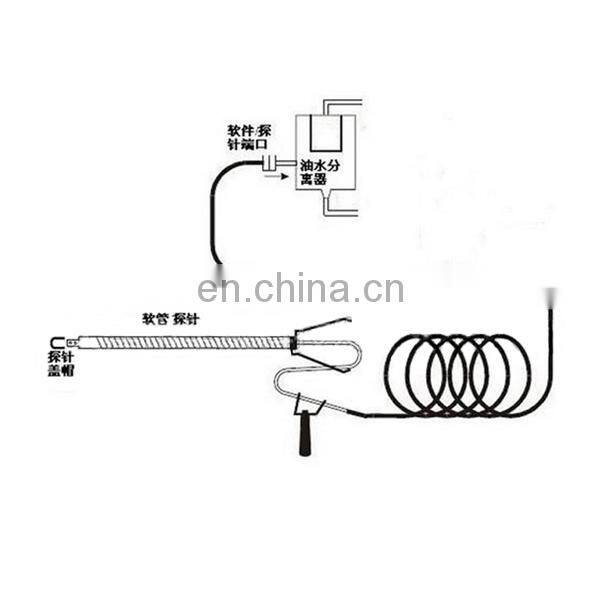

Exhaust: direct sampling. Sampling tube length 5m, sampling probe length 900mm.

Oil temperature: The temperature sensor is inserted into the oil dipstick hole of the engine. The length of insertion is the same as the length of oil dipstick. The rubber plug is used to see the death to prevent the oil from spouting. The lead length is 5m.

Speed: Non-contact measurement method, as long as the pressure near the gasoline engine soft line distance of not more than 20cm, you can measure the speed of the gasoline engine.

4. Warm up time: 10 minutes

5. Resolution:

CO: 0.01% vol

HC: 1 ppmvol n-hexane equivalent

CO2: 0.01% vol

O2: 0.01% vol

NO: 1ppmvol

Speed: 1rpm

Oil temperature: 0.1 ℃

6. Indication tolerance

CO: ± 0.06% vol or ± 5% relative error

HC: ± 12ppm vol or ± 5% relative error

CO2: ± 0.5% vol or ± 5% relative error

O2: 0.1% vol or ± 5% relative error

NO: ± 25ppm vol or ± 5% relative error

Speed: ± 10rpm (0 ~ 10000rpm)

± 1% of the measured value (> 10000rpm)

7. Time stability

After preheating, instrument 4h zero drift and gauge drift does not exceed its indication error.

8. Repeatability

The indication repeatability of the instrument is not more than 1/2 of the absolute value of the tolerance of the indication.

9. Output signal

Digital: RS232 serial communication
