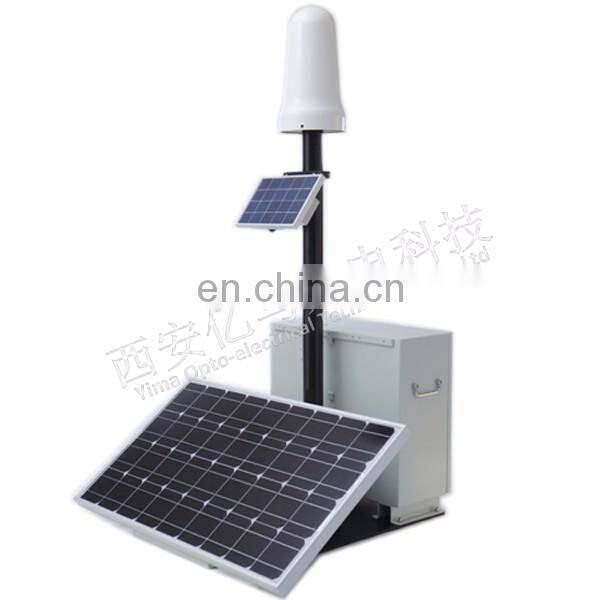

OS-8 Fixed Electromagnetic Radiation Environment Online Monitoring System

Brief introduction

The online monitoring system of fixed type electromagnetic environment settings for the long-term continuous electromagnetic radiation monitoring in the mobile communication base station, high-voltage transmission and distribution facilities, radio and television transmission tower around specific locations and sensitive points, and real-time data display on the website and released to the public, set up propaganda and public communication and science platform to dispel public monitoring the data was artificially controlled concerns, and can be used for monitoring public complaints.

Features

Fixed long time continuous online monitoring

Accurate measurement value

Stable performance

Easy to install, suitable for a variety of environments

Support a variety of wireless and wired communication

To publicize the public

With independent intellectual property rights

The highest level of the same industry in the world

Technical parameters

system function

OS-8 fixed electromagnetic environment online monitoring system is a set of electromagnetic environment monitoring, wireless transmission, data publicity and popularization of science and technology and other functions in one of the electromagnetic environment monitoring and publicity of the overall solution.

1Hz-18GHz full band electromagnetic radiation monitoring, power frequency electric field, power frequency magnetic field, radio frequency electric field,

Real time monitoring data acquisition

Multi site network monitoring

Complete solar power supply, support external power supply

All-weather environmental adaptability

Data in-depth statistical analysis

Network, outdoor display and other real-time data release

Extensible weather, noise and ionizing radiation monitoring

Unique technology applications

Modern Internet and wireless communication technology

Electromagnetic interference measurement technology

GIS information technology and graphic software design

Multimedia technology and other high-tech

Real time automatic monitoring and alarm

Standard basis

Technical standard for electromagnetic radiation online monitoring system of communication industry standard (YD/T 2830-2015)

The environmental protection industry standard "mobile communication base station electromagnetic radiation environmental monitoring method" (UNCED No. [2007]114)

Environmental protection industry standard "radiation environmental protection management guidelines for electromagnetic radiation monitoring instruments and methods" (HJ/T 10.2-1996)

International Telecommunication Union standard "Monitoring field of electromagnetic fields" (ITU-T K.83)

system composition

The system is composed of a plurality of electromagnetic environment monitoring stations, monitoring centers and data publicity platform:

The monitoring sub station is composed of electromagnetic radiation monitor, data acquisition and transmission system and power supply system. The electromagnetic radiation monitor is used to monitor the electromagnetic radiation of the environment, the data acquisition and transmission instrument collects the monitoring data of the electromagnetic radiation monitor, and transmits the data to the remote monitoring center through the wireless or wired communication mode.

The monitoring center server, network equipment and electromagnetic radiation monitoring system software platform, access to a number of monitoring data of monitoring stations, storage, data processing, statistics and data release, the client and the server, and the popularization, management of the monitoring stations and public display.

The data including publicity display and publicity platform ", according to the needs of public display can select one or more outdoor LED display or high-definition LCD screen, access to monitoring data from the monitoring center, monitoring data released a single site or multiple sites, video, animation and character of electromagnetic radiation, green, green base station substation the propaganda of popular science. At the same time, through the way of the web page to the internal staff or the public release of monitoring data and popular science propaganda.
