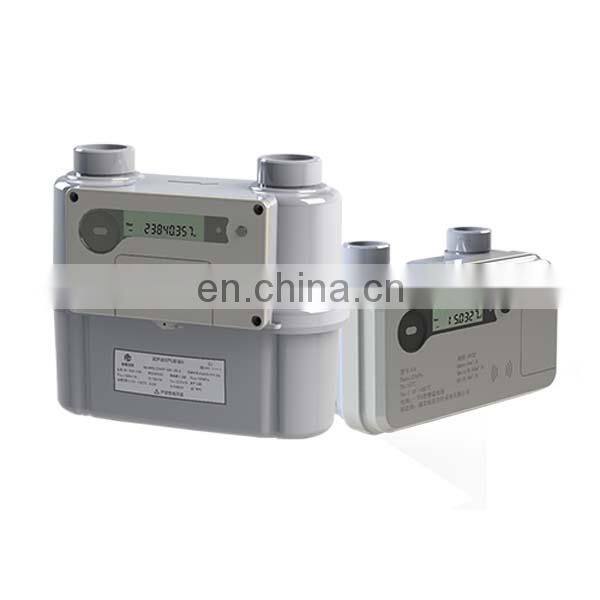

USM-G2.5 Ultrasonic Gas Meter

Introduction:

The USM series ultrasonic gas meter is a smart metering instrument that uses the ultrasonic time difference method to measure the media flow rate and is suitable for the cumulative measurement of natural gas flow.

Features:

1.Compared with membrane type, the pressure loss is small, the volume is small, the weight is light, and it is not easy to leak gas;

2. Integrated probe, can measure gas flow, temperature, pressure and composition at the same time;

3. Ultrasonic technology, wide range, high sensitivity and high precision;

4. Smooth operation, no noise, no corrosion, long life;

5. No magnetic sensor, measurement is not easily affected by the magnetic field;

6. All-electronic type, no moving parts, stable performance, long-term use accuracy is not easy to deteriorate;

7. Digital design, complete functions, intuitive display, easy installation;

8. Low power consumption, built-in lithium battery / AA alkaline battery, can continue to work for a long time, easy to replace;

Technical Parameters:

Specification Model: USM-G2.5

Measurement range (my/h): 0.025-4

Interface mode: G1 1/4

Interface spacing (mm): 130

Size (mm): 239*151*102

Weight (Kg): 1.1

Battery: 3 AA alkaline batteries

Accuracy level: 1.5

Measurement error: ±1.5%

Working pressure: 0-20k Pa

Working temperature: 10°C~40°C

Storage temperature: 20~60C

Explosion-proof grade: Exibllbt3 Gb

Protection class: IP65
