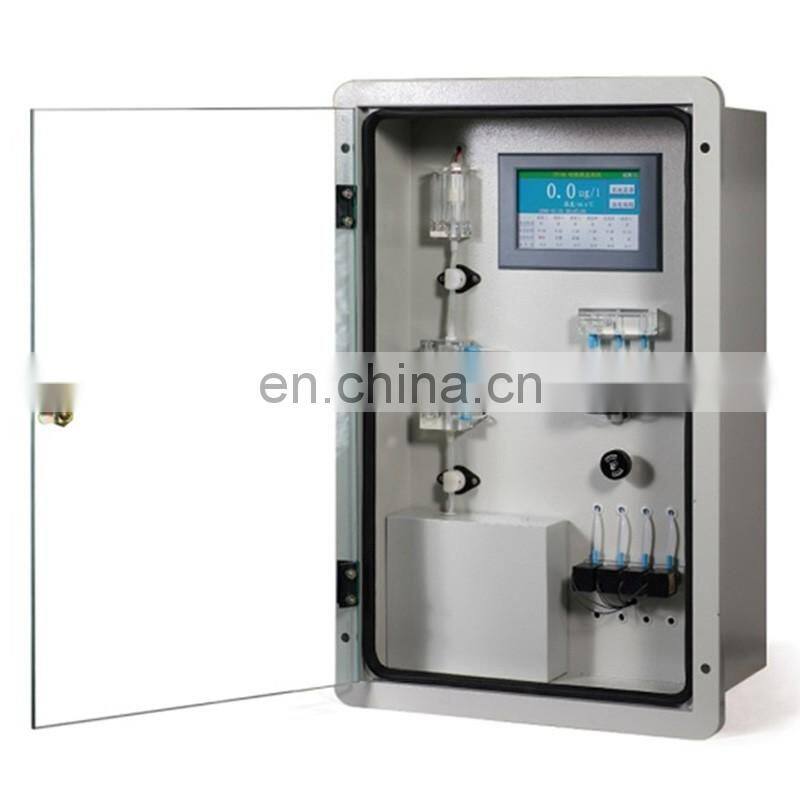

TP106 On-line Silicate Monitor

TP106 On-line Silicate Monitor thumbnail-1
TP106 On-line Silicate Monitor photo-1
US$ 12,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
YIMA
Place of Origin:
Shaanxi, China
Model Number:
TP106
Contact Supplier Request Quote Chat Now
Lixian Instrument Scientific Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YIMA
Place of Origin Shaanxi, China
Model Number TP106
Product Description

TP106 Silica Analyzer

Applications:

• Power
• Chem. or Petrochemical
• Chemical Fibre

• Features:

• Programmable multi-stream switching up to 6 streams, cost saving.
• Imported High precision electromagnetic valve-long life, accurate and reliable measurement
• Set period time according to user for two sample automatic calibration----ensured the stability of the operation and reduced the workload of maintenance.
• —Ensure stability and high precise measurement accuracy.
• Color LCD display, different color display real time curve and history curve of each channel at the same screen.
• previous measurements can be stored up to one month-- For tracking convenience
• Monochromatic cold light source
---long life, stable and reliable
。 Programmable Multi-channel high precision current signal output--- Facilitate subsequent connections and automatic dosing.
• Panel mount, exquisite structure, easy to operate and maintenance.

Specification:

Measurement principle
Silicon molybdenum blue Photoelectric colorimetry method
Display
7.0 inch color LCD display in English.
Measurement Range
(0-200)μg/L, (0-2000)μg/L (optional)
Measurement Cycle
About 10 min/channel
Response Time (T90)
<10 min
Accuracy
±2%F.S
Repeatability
±1%F.S
Stability
Chemical drift: ±1%F.S/24h
Temperature
5 to 50 ℃
Sample Condition
Flow: (10-40)L/h
Impurity
Solid contents in sample: ≤5μm (no gel and grease)
Ambient Temperature
5 to 45℃
Ambient Humidity
≤90%RH (no condensation)
Reagent Consumption
3L/month for each reagent (total 4 kinds of reagent)
Analog Output
(0-10)mA, (0-20)mA or (4-20)mA (each channel has its isolated output)
Power Supply
AC(165-265)V, (50) Hz
Power Consumption
About 100W
Overall Dimension (mm)
720(H) × 460(W) × 270(D)
Cutout Dimension (mm)
645 × 410
Net Weight:
24kg
Alarm Outputs
No flow, high alarm and low alarm (each channel output individually)
Detailed Images
Packing & Delivery

Standard packages

Serial No.
Item
Specification
Quantity
Remark
1
Silica Analyzer
TP106
1 piece
Single channel
2
Reagent bottle
3 pieces
Built inside of meter case
3
Standard sample bottle
1 piece
Built inside of meter case
4
Holder of reagent bottle
3 pieces
Built inside of meter case
5
Holder of standard sample bottle
1 piece
Built inside of meter case
6
Key
Front door
1 piece
7
Key
Back door
1 piece
8
Standard liquid of silica
60ml
1 bottle
10ug/L
9
Installation clip
4 pieces
10
Water sample connecting pipe
1 piece
1 meter
11
Soft and hard Connecting pipe adapter
1 set
12
Manual
TP106
1 piece
13
Certificate of inspection
TP106
1 piece
14
Warranty card
TP106
1 piece
