Grad12 Laboratory Constant Flow Pump
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | Grad12 | Place of Origin | Shaanxi, China | |
| Model Number | Grad12 | |||
| Fuel | Diesel | Power | Electric | |
| Usage | Water | Theory | Mixed Flow Pump | |
| Standard or Nonstandard | Nonstandard | Structure | Multistage Pump | |
| Pressure | High Pressure |
Product Description

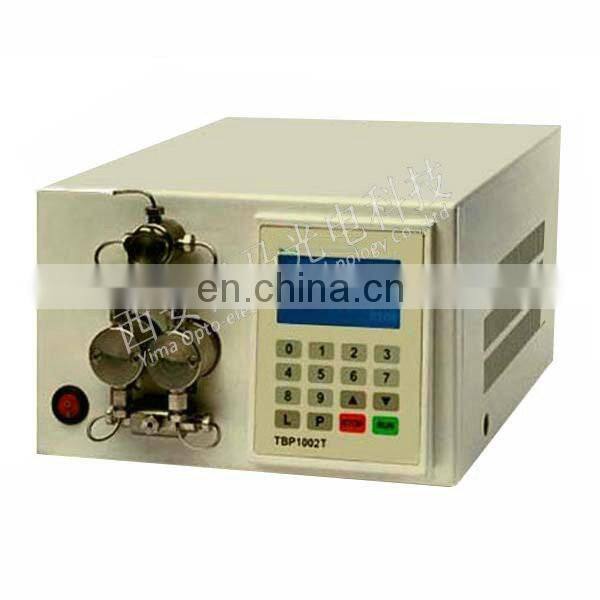

Grad12 Laboratory Constant Flow Pump
SPECIFICATIONS
Increment Rating | 0.1ml/min |
Incremental range | 0.1-10ml/min |
Mixing Range | 0.0-100% |
Gradient Accuracy | 1% |
Flow Rates | 0.1-10.0ml/min |
Pressure | 0 - 5.0MPa |
Pulsation | ≤ 0.08MPa |
Pressure Accuracy | ≤ 0.05MPa |
Flow Accuracy | ≤ 1% |
Flow Precision | ≤ 1% |
Pipeline Materials | Ruby,316L stainless steel,Zirconia ceramics |
Power Source | 220V±10%,50/60Hz |
Power | 75W |
Dimensions | 360 mm × 260 mm × 160 mm |
Weight | 12Kg |
STANDARD FEATURES & CONTROLS
Dual Self Flushing Pump Heads for Reduced Pulsation
Dual ball and High Quality Plunger for Consistent and Precise Flow Performance
Real-time pressure monitoring.
Simple Front Panel Key Pad Controls with Big LED Display
Overvoltage protection and Flow Correction System
Materials resistant to chemicals used, including organic solvents
Stainless Steel or PEEK Fluid Path
Prime Purge Valve
RS-232 Serial Com Port for Complete Control & Status Monitoring
APPLICATION FIELDS
Chromatography analysis
Organic synthesis
Botanic chemistry
Bioengineering
Fine chemistry
Pharmaceutical chemistry
Life science
Environment protection
Control System Software
Real-time Display of Current Pressure, Set Pressure and Set Flow Rate
Real-time Display In Curve of Working Pressure
Operation via Computer
Timing Function For The Facility of Working Time Setting
Function of Saving Current Working Pressure For Checking
Function of Printing Important Parameters Such As Current Pressure

Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
