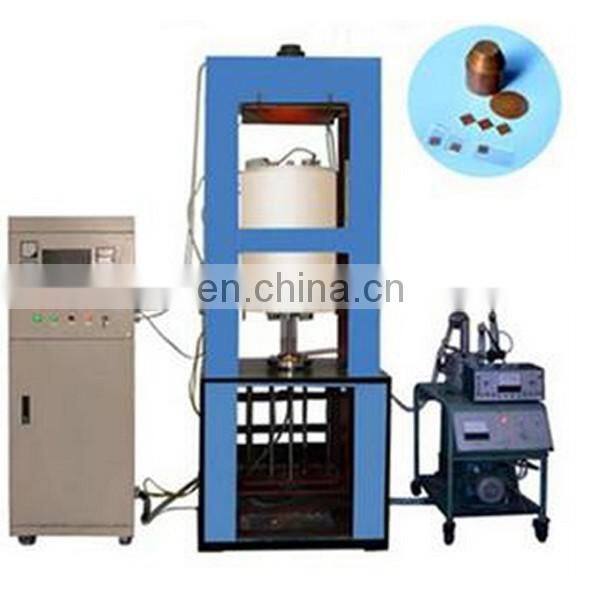

SKJ-M50-16 Metal Crystal Small Crystal Growth Furnace

Brief introduction

SKJ-M50-16 metal crystal growth furnace is a device used to grow metal crystal by the method of crucible descent method, which can be operated under the condition of vacuum, atmosphere, inert gas or other protective atmosphere. According to the properties of the metal, the machine can be by medium frequency induction heating power supply, and graphite resistor heating two heating methods; the European microprocessor and thermocouple closed-loop temperature control, crystal controlled according to a certain diameter.

Features

Small crystal growth furnace, suitable for college, Institute.

Technical parameter

1, power: AC 208-240V three-phase 15KW 50/60Hz
2, the volume of the furnace body: about 100L
3, furnace tube: quartz tube or corundum tube
4, Crucible: high pure graphite crucible
5, heating elements: 1800 silicon molybdenum bar
6, temperature control system: 50 section of the temperature control procedures
7, temperature control accuracy: + 1
8, working temperature: continuous work 1600 degrees, short time work 1700
9, temperature control mode: automatic program control
10, growth method: the zone melting method (the sample is fixed, the furnace body moves upward)
11, moving speed: 1mm/h-10mm/h adjustable
12, fast moving: Manual
13, crystallization speed: 1-50rpm
14, vacuum system: mechanical pump and diffusion pump
15, the ultimate vacuum degree: 10-5torr
