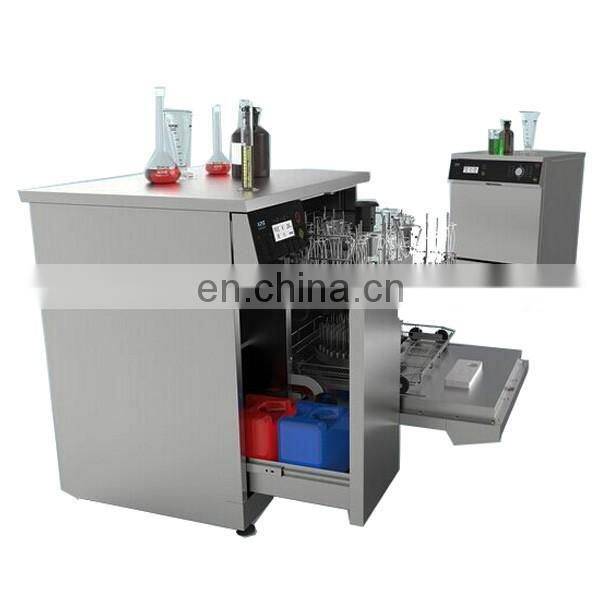

Aurora-F1 Laboratory Glassware Bottle Washer Machine

 Aurora-F1 Laboratory Glassware Bottle Washer Machine

Introduction

   For automatic cleaning and drying laboratory glass, ceramic, metal or plastic containers and other materials, and can clean laboratory flask, injection vials, jars, flasks, graduated cylinder, heart-shaped bottle, colorimetric tubes, culture dishes and other laboratory vessels.

Feature

 1 Auto-check when openning , LED display, touch control, online synchronous display temperature, running time, running steps and other parameters

2 Control system has ten standard cleaning procedures, and two custom programming cleaning procedures to ensure that meet the user's requirements for cleaning

3 Circulatory system: 400L / min speed to provide circulation of strong cleanability

4 Imported circulation pump and circulation velocity sensor to ensure proper pressure spray process speed

5 Inlet pipe and water connections standard mesh filter, to ensure that monitoring data flow controller

6 Lumen cleaning machines are made of 316L stainless steel plate through full-page bending, stamping processing, no welding, anti-corrosion, the use of cavity mirror polished AISI 316L stainless steel, rounded corners and the bottom surface of the ramp design to ensure the cavity clean

7 Flat oval with the word arm rotating water jet type rectangular slot, a wide range of water spray, cleaning more thoroughly

8 Dual steam condensing system to ensure clean hot steam chamber can be quickly converted into water

Standard dual probe PT1000 temperature sensor to ensure accurate temperature cleaning process

Technical Parameter

1 Water requirements: municipal water and rinsed with pure water laboratory

2 Working environment: 5-40 ℃

3 Power: 220V -230V, single-phase: 50HZ

4 Cleaning chamber volume: 176L

5 Circulating pump power: 900W

6 Heating power: 2000 / 4000W; optional guarantee quickly reach qualified wash and rinse temperature

7 316 stainless steel enclosure and 316L stainless steel, with superior anti-corrosion features

 8  Wash basket can be placed on two upper cleaning vessel can be achieved is 170mm, while the lower container when two highly placed up to 210mm, when the single cleaning vessel height up to 450mm

9 Built-in water softening system, removal of calcium and magnesium ions to prevent scale, the protection of stainless steel, with automatic regeneration means

10 Built-in detergent defoaming system (no foam cleaning to ensure cleaning effect)

11 Stainless steel cavity rounded base and slopes without welding design

12 Equipment can be installed independently or installed within the clamp

13 Control Panel, there are four colors (black, orange, navy, yellow and green) to choose from

14  Dimensions: length × width × depth (880 × 920 × 650mm)
