Home > Products > Lab equipments > MKX-M2A High-temperature Microwave Oven
MKX-M2A High-temperature Microwave Oven
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | MAIKEWEI-Y | Place of Origin | Shaanxi, China | |
| Model Number | MKX-M2A | Power | Electronic | |
Product Description

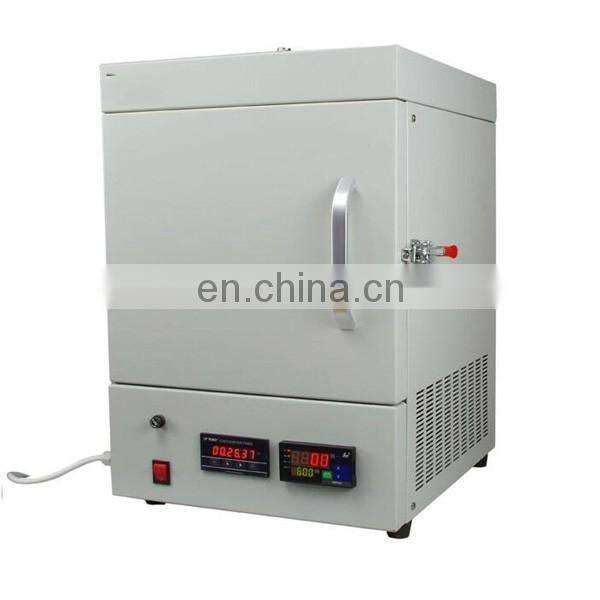

MKX-M2A High-temperature microwave oven
Introduction
The instrument is used widely applicable to all types of institutions of higher learning laboratory, industrial and mining enterprises, the quality inspection, Institute for Drug Control laboratory for chemical analysis, component measurement, physical measurement as well as metal, ceramic sintering and dissolution of small parts such as heating, roasting, drying, heat treatment.
Feature
1, Heating speed: within 20min can be heated from room temperature to 1000 ℃ (graphite as an example)
2, Ambience: a vacuum environment, maximum vacuum -0.099Mpa (Qingdao altitude measured data)
3, Water cooling system: according to the material properties, the maximum temperature up to 1100 ℃, long continuous working temperature 100 ~ 1000 ℃
4, Eramic crucibles :100×100×30mm ceramic crucibles
5, Single atmosphere: a gas export and the cavity gas discharge outlet
6, Thermocouple temperature control, test accuracy of ± 1%
7, Door Multi-chain structure, door off to protect the operator, in line with the national standard microwave leakage protection
Technical parameter
Product name | High-temperature microwave oven | Quanlity | 1 set |
Model | MKX-M2A | Brand | MAKEWAVE |
Functional requirements and Prameter
| 1,Power supply :220±10V/50Hz 2,Microwave frequency:2450±50Mhz 3,Maximum output of the microwave power2400W 4,Microwave power can be adjusted continuously 5,Device uses stainless steel cabinet design, the appearance of carbon steel, overall nice 6,Allowing a variety of ambient atmosphere: such as air, nitrogen, argon, oxygen and other gases 7,Infrared temperature sensor, temperature range 700 ℃ ~ 1700 ℃, temperature measurement accuracy ± 1% 8 ,Electrification control, key operation, time, temperature, power digital display, adjustable controllable <![if !supportLists]>9,<![endif]>High temperature heating zone volume: about 150 × 150 × 200mm (width × depth × height) 10,Use Patent no. ZL200920352601.3 patented insulation way, in order to reduce the maximum degree of energy loss 11. insulation materials with low loss ceramic fiber material, light weight, good insulation effec 12,According to the material properties, the maximum temperature can reach 1600 ℃ 13,Side door, the door anti-fluid structure, to prevent microwave leakage. Multi-chain structure, door off to protect the operator. 14 Mumulti-door interlock structure, door off to protect the operator, in line with the national standard microwave leakage protection 15,Through the ISO9000 quality management system certification | ||
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
Your earlier friendly enquire from us would be highly appreciated.Thanks in advance!
