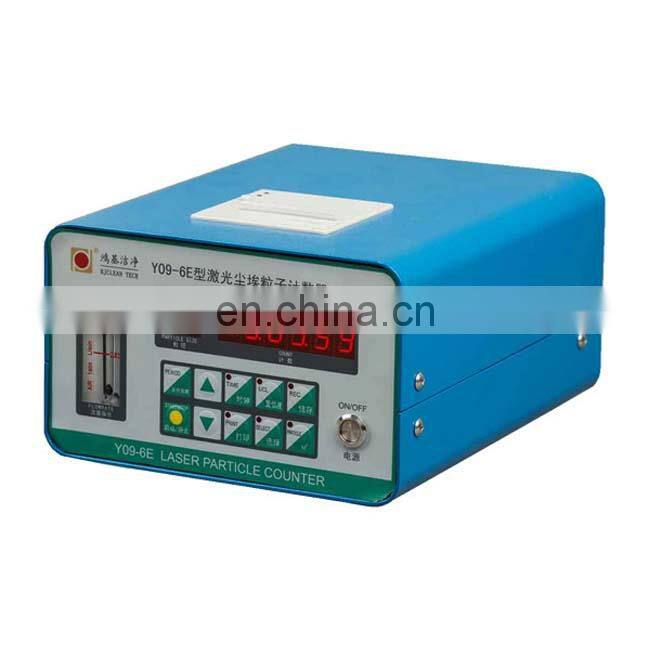

Y09-6E laser dust particle counter
Introduction:
The Y09-6E laser dust particle counter is used as a particle count, 0.3, 0.5, 1, 3, 5, 10 μm. The 6-channel particle data is displayed in real time, and the cumulative number of particles of 3 channels can be displayed after one sampling period. It is comparable to some expensive equipment. Built-in long-life laser diodes, high-efficiency light-collecting elliptical lenses, and a unique optical system to provide high accuracy and concentration measurement range. Vacuum pump, constant speed sampling head, microprocessor circuit, computer interface, all information is displayed on the LCD screen.
Products are widely used in medical and sanitary, optical, chemical, food, cosmetics, electronics, biological products, aerospace and other enterprises in the clean room testing.
Features:
2.83 liters / minute sample size, system confidence level UCL measurement without manual calculation
2. Lithium battery is fully used for more than 6h
3. Aviation aluminum material shell is not easy to accumulate dust, easy to clean, beautiful appearance
4. 6 particle size channels: 0.3, 0.5, 1.0, 3.0, 5.0, 10μm
5. High-resolution LCD display, simultaneous measurement of each particle size
6. 500 sets of data storage, data can be printed in real time, stored in the machine
7. Optional and computer connection software
8. Hand-held design, easy to carry, ready to measure
Technical Parameters:
Dimensions: 205*280*125mm
Weight: 3.2Kg
Power supply: 220V ± 10%, 50Hz
Light source: semiconductor laser (lifetime greater than 30,000 hours)
Sampling period: 1-10min self-setting
Print : Built-in thermal printer
Self-cleaning time: ≤10min
Display mode: highlight digital tube display LED
Maximum power consumption: 40W
Particle size channel: 0.3, 0.5, 1, 3, 5, 10μm can directly display particle concentration
Sampling flow: 2.83L/min
Alarm level : 95% UCL value
Data storage: 500 pages of data storage
Working time : 8 hours
|
