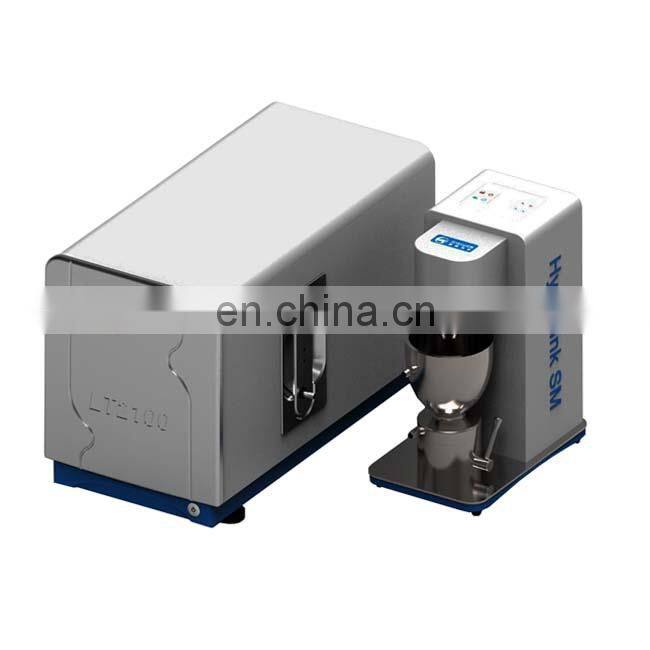

LT2100 Series Laser Particle Size Analyzer
Introduction:
The LT2100 series laser particle size analyzer is a new generation particle size analyzer that is based on years of research and development by the Truth Optical Technology team. It is a new generation particle size analyzer that supports both dry and wet methods.
The LT2100 mainframe uses a laser diffraction particle size analysis system with a particle size range of 0.1um to 800um. The system uses a new optical path design and improved optical model and optimized inversion algorithm to overcome the abnormal variation of Ai Liye (ACAD). Interference with the results of the particle size analysis without the need to select an analysis mode. The light source is an ultra-high stability solid-state laser with a wavelength of 638nm and 20mW integrated thermostat system. It adopts polarization filtering technology, uses oblique incident window and super-large angle detection technology, and has no blind zone in the whole angle range. It can be accurate and reliable in the whole particle size range. result. The optical path is automatically centered and designed to be highly automated.
Features:
The LT2100 is complemented by several innovative technologies:
1. Polarization filtering technology
2. Compensation correction technique for the diffraction of the Amber spot abnormality (ACAD)
3. Oblique incident anti-Fourier optical path configuration
4. Grid type large angle detection array technology
5. Unified granularity analysis mode
6. Continuous liquid level sensing and control technology
7. High sensitivity light energy tracking and stabilization technology
The outstanding performance of the LT2100 optical measurement system also includes:
8. Full compliance with ISO13320 diffraction method measurement technology standards
9. No need to change lenses, no need to use standard calibration, range of 0.05 microns to 1200 microns
10. Real-time measurement rate is up to 2000Hz per second, which is superior to similar products at home and abroad.
11. Ultra-high stability solid-state laser light source system with automatic temperature constant technology, completely overcomes the shortcomings of long gas-heating time and short service life of helium gas laser
Hydrolink SM Manual Wet Dispersion Injector
12. Standard capacity up to 500 ml
13. Manual control, simple and clear operation
14. The system has built-in high-efficiency anti-drying ultrasonic disperser to ensure that all kinds of samples can be effectively dispersed and transported.
15. Suspended liquid level sensing, automatic bubble elimination
16. Fully automatic sample dispersion and cleaning
17. Easy to use tools for quick disassembly and cleaning of the sample cell window
Technical Parameters:
Model: LT2100
Measuring principle: laser diffraction / static scattering
Optical model: Full-scale Mie theory and Fraunhofer theory
Particle size range: 0.1μm-800μm
Injection method: Capacity 400mL, centrifugal pump, built-in ultrasound (anti-dry, manual control), manual water, drainage, single motor drive
Light source: semiconductor solid-state laser
Centering mode: automatic
Injection system: split type
Optical system: inverse Fourier transform
Accuracy: Dv50 is better than ±0.8% (NIST traceable latex standard)
Repeatability: Dv50 is better than ±0.8% (NIST traceable latex standard)
Software SOP function: Yes
Number of detectors: 42
Optical system size: Main unit 510mm x 257mm x 350mm
Injector 270mm x 170mm x 340mm
|
Dear customer : We,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history. Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing,bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents,abundant supply for various components & parts and special materials, full producing &processing equipments,strong Technological standardization and a complete quality assurance system. If you need OEM or ODM in manufacturing ,scientific research,market development and or you want to build your own brand in your country,it’s our honor to cooperate with you.In this way,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba. We firmly believe that science and technology is no boundaries. Our mission is to make every effort to contribute to all humanity.
Your earlier friendly enquire from us would be highly appreciated.Thanks in advance! |
