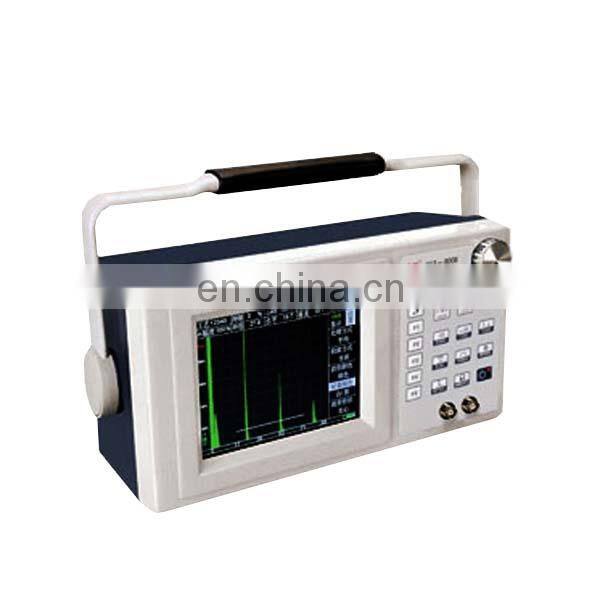

CTS-8008 Digital Ultrasonic Flaw Detector
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHANCHAO | Place of Origin | Shaanxi, China | |
| Model Number | CTS-8008 |
Product Description
Introduction:
The CTS-8008 digital ultrasonic flaw detector expands the performance and application range of portable instruments. It is equipped with a high-resolution color liquid crystal display with a refresh rate faster than 60Hz, which can simulate the detailed information of the system waveform in real time
Features:
1. Fully independent intellectual property rights to facilitate instrument upgrade and maintenance.
2. 6.5" large HD high-brightness TFT color LCD display (640 *480).
3. Chinese/English menu.
4. Set operation shortcut keys and universal knob adjustment keys, which are convenient and quick to operate, easy to learn and use.
5. The emission intensity and damping matching can be adjusted to obtain the best flaw detection performance.
6. Sound velocity measurement and probe calibration are quick and easy.
7. High storage capacity, and can automatically generate flaw detection reports based on flaw detection parameters and waveform data.
8. The software is highly expandable and can be added to specific flaw detection processes according to different flaw detection requirements.
9. The peak memory function captures the highest point position of the waveform in the gate at any time.
10. The extended function expands the waveform in the gate to the entire waveform display area for display (Figure 1).
11. Waveform comparison function can compare the stored waveform call as the background with the real-time waveform (Figure 2)
12. The freeze function is used to freeze the screen waveform for easy analysis of the waveform.
13. The automatic gain function quickly and automatically adjusts the waveform in the gate to the preset height.
Technical Parameters:
working frequency | 0.5 to 20 MHz |
Gain control | Total gain of 110dB, four steps: 0.1, 1.0, 2.0, 6.0dB |
examination range | 0.0~10000mm (steel longitudinal wave), continuously adjustable |
Sound speed range | 1000~15000m/S, continuously adjustable (built-in 21 kinds of common material sound velocity values) |
Pulse shift | -20~3000uS |
Dynamic Range | ≥32dB |
Vertical linearity error | ≤3% |
Horizontal linearity error | ≤0.1% |
Resolution | ≥36dB |
Sensitivity margin | ≥60dB (200mm-d2mm flat bottom hole) |
Electrical noise level | ≤10% |
Detection method | Full wave, positive half wave, negative half wave |
data storage | 1000 sets of flaw detection parameters and waveform data can be stored |
Fast passage | 10 shortcut channels |
Sampling frequency | Hardware real-time sampling frequency 160MHz |
repeat frequency | 25~800Hz, optional automatic or manual adjustment |
Screen refresh rate | 60Hz |
power supply | Two power supply modes: large capacity lithium battery, no memory effect, continuous operation for more than 6 hours 220V AC (with power adapter) |
Ambient temperature | -30 ° C ~ 60 ° C |
Volume (length *width *height) | |
weight |
