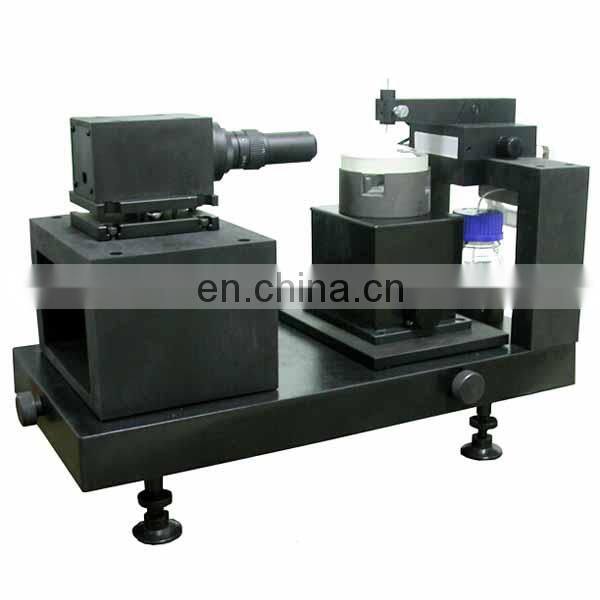

JC2000YKC Concave and convex surface contact Angle analyzer
- 20 Set / Sets per Month
- shenzhen
- T/T Credit Card
Product Details
Brand Name: | ZC | Place of Origin: | Shaanxi, China | Model Number: | JC2000YKC |
Product Description
Brief introduction
As is known to all, nano material science and engineering has become a hot research topic in the world. In the study of surface modification of nano materials, the concept of wetting contact angle is often involved. The so-called contact angle is a drop of a drop on a solid horizontal plane, and the two tangent of the liquid gas interface and the solid liquid interface of the solid surface is the angle of the liquid phase. JC2000Y is convex and concave surfaces of the measurement of contact angle measuring instrument, mainly applicable to glasses yingpian, invisible glasses industry, glass tube, etc. various kinds of circular pipe industry. Japan HOYA optical procurement is the series of instruments.
Technical parameter
1 instruments:
Basic configuration:
Sample pump, video capture card, manual CCD platform angle, CCD camera, continuous variable magnification optical system (made in China), samples were fixed platform, concave convex special image analysis system was used to measure the peristaltic plus
Optional configuration:
Manual + 15 DEG arc pendulum sample platform, manual 360 DEG vertical rotating sample platform, manual 360 degree rotating sample platform, automatic control temperature system (Japan Omron temperature control) and continuous zoom optical system (Nissan), automatic and accurate sampling, automatic image analysis system, the electric three-dimensional platform, custom concave convex special base
2 main functions:
Measurement of contact angle (special software to measure the convex concave surface)
Measuring surface tension (drop method)
Observation and measurement of the drop size (drop method)
Calculation of surface free energy (Owens two)
3 measurement method: Instant freeze screenshot Continuous shooting images (1 seconds to 3600 seconds). Automatic high speed camera (12 frames per second) 4 contact angle measuring range: 0~180 degrees 5 image magnification: 55pixel/mm ~ 315pixel/mm Imported continuous zoom optical system: (~1400pixel/mm 100pixel/mm) JC2000Y contact angle measuring instrument 6 measurement accuracy: 0.1 degrees or 0.5 degrees (concave and convex special type) |
Dear customer:
You see on our website products quotation, just a market reference price. We can according to customer specific requirements to give the actual price.
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
