Home > Products > Analytical instruments > GC-1120 Gas Chromatography

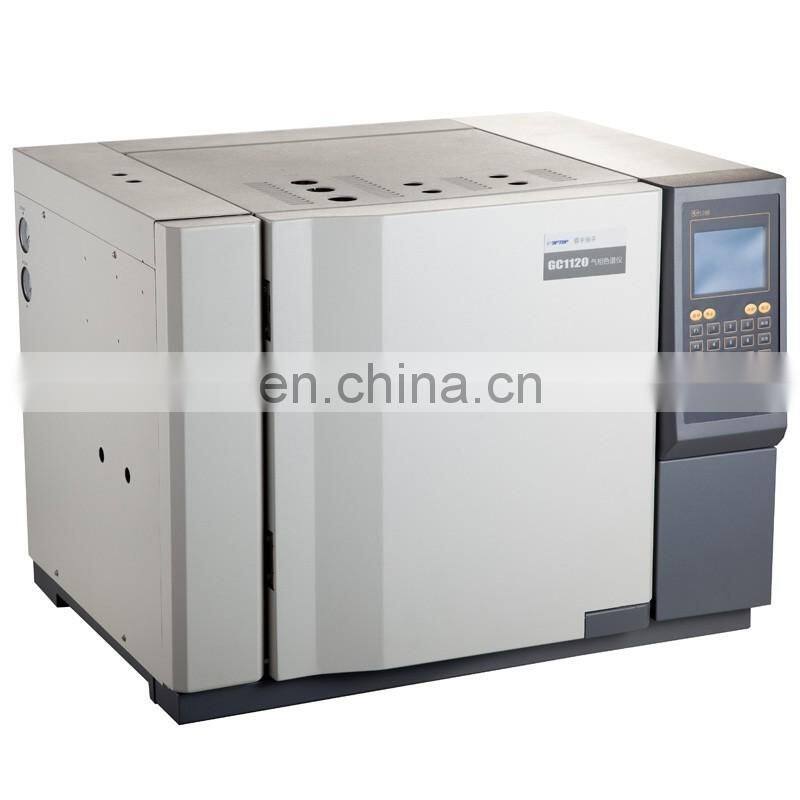

GC-1120 Gas Chromatography

FOB Price

US$ 19,000 - 23,500 / Unit

1 Unit(Min. Order)

Port shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YIMA		Place of Origin	Shaanxi, China
Model Number	GC-1120

Product Description

GC1290 Gas Chromatography

EPC(Electronic pneumatic control), 7 inch touch screen display

Gas chromatography and accessories:

Carrier Gas System + Sample Introduction System + Separation System + Temperature Control System + Detector
Carrier Gas System: air source/ purification and desiccation device/ flow rate control device
Sample Introduction System: sample injector
Separation System: chromatographic column(packed column and capillary column)
Temperature Control System (Column Oven): constant temperature and programmed temperature

Detector: FID/ TCD/ FPD/ ECD/ NPDk.

Features:

①Control system: designed for monitoring and controlling the instrument via the computer.
Column Compartment/oven with superior thermal performance, multistage (10 ramps) programmed temperature control function. (supported by “control system”)
Advanced built-in data acquisition system , supporting real time instrument status monitoring, detection signal acquisition and PC control
Column oven accommodates up to 3 chromatographic columns, and supports quick heat-up and rapid cool-down with automated back-door opening. (300℃ to 50℃ in 7 min)
Flexible sample introduction system: 3 sample injectors could be installed and operated simultaneously with independent temperature control.
High sensibility and stability detector.
2 independent and analog signals output.

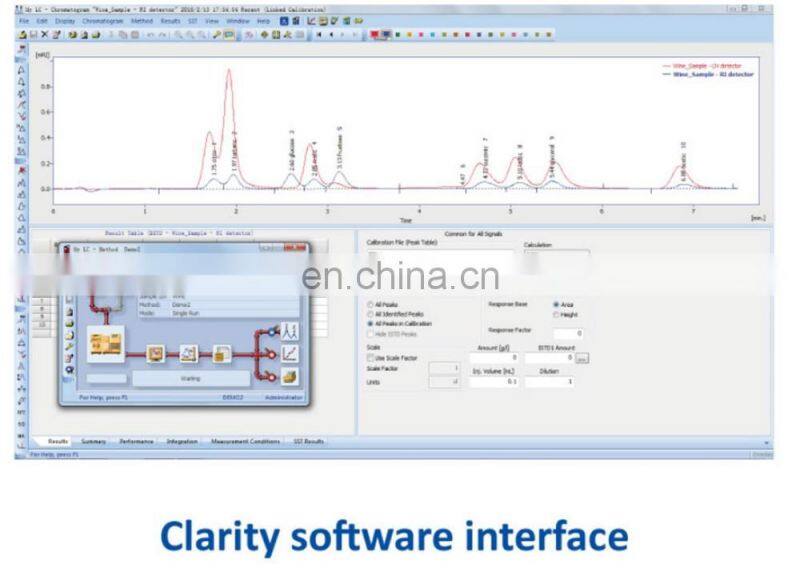

Clarity software, compatible with GLP/FDA-21 CFR Part11 requirements and regulations. (electronic records and signatures)

Advanced Microcomputer Control System

Superior performance with advanced, microcomputer-based temperature control system
High temperature accuracy (optimum ± 0.05℃), high reliability, and anti-interference
Self-diagnosis/ self-protection function (overheat protection, power-off protection, etc.)
Intuitive display of timing program, detector status, measurement range, current setting, etc

Sample Introduction System		Sample injector and evaporation chamber
Column Oven	Temperature range	Ambient temperature +7℃ ~ 400℃ (in 1℃ increment)
	Temperature accuracy	0.05℃
	programmed temperature setting	0.1℃~40℃/min (in 1℃ increment)
	Program ramps	7 ramps in total (10 ramps available with control workstation①)
Flame Ionization Detector (FID)	Detection limit	≤3×10-12g/s (C16)
Flame Ionization Detector (FID)	Drift	≤6×10-13A/h
Thermal Conductivity Detector (TCD)	Sensitivity	≥5000mV.mL/mg
Thermal Conductivity Detector (TCD)	Baseline noise	≤20µV
Flame Photometric Detector (FPD)	Detection limit	≤8×10-13g/s(P) ; ≤8×10-11g/s(S)
	Drift	≤2×10-11A/30min
	Baseline noise	≤5×10-12A
Electron Capture Detector (ECD)	Detection limit	≤2×10-13g/s (γ-666)
	Drift	≤80µV/30min
	Baseline noise	≤20µV
	Linear dynamic range	≥10-3
Nitrogen-Phosphorus Detector (NPD)	Detection limit	≤5×10-13g/s(P) ; ≤5×10-12g/s(N)
Photoionization Detector (PID)	Detection limit	≤1ppb(benzene)

Detailed Images

Packing & Delivery
