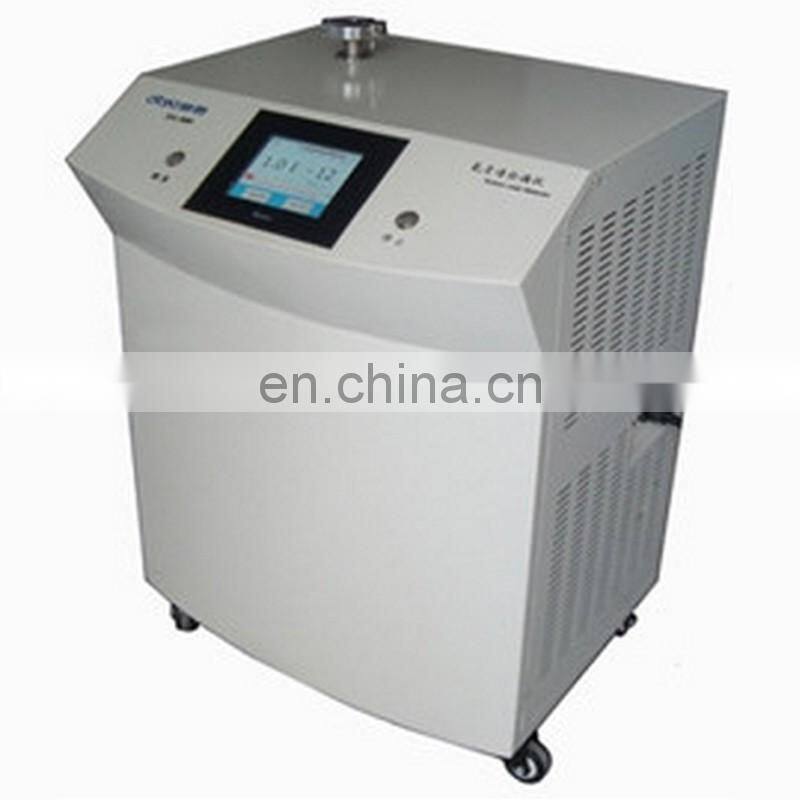

ZXL-820helium Mass Spectrometer Leak Detector
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | YIMA | Place of Origin | Shaanxi, China | |
| Model Number | ZXL-820 |
Product Description
Main technical index:
1,The minimum detectable leak rate:5*10-12Pa*m3/s
2,Leakage rate display range:1*10-2-1*10-12Pa*m3/s
3,Start-up time:≤3min
4,Response time:≤1.0s
5,The highest pressure leak port:1000Pa
6,Power requirements:220V,50Hz,Single-phase,10A
7,Pumping speed of mechanical pump:2L/s
8,Work environment:5-35℃
9,Relative humidity:≤80%
10,Outline dimension:550(W)*420(D)*700(H)
11.Weight: 60Kg
Main configuration:
1.Germany LEYBOLD molecular pump
2.The VALUE mechanical pump
3.Custom solenoid valve
4.American AD amplifier
5.By using mass spectrometry
6.Color touch screen display(AELTA)
The main ZXL-820B configuration of helium leak detector
Serial NO.
To configure
Model
Remarks
1LEYBOLD special molecular pump leak detector
TW70S
Place of origin: Germany
2The VALUE mechanical pump
VRD-8
Origin: Zhejiang, China
3Amplifier
AD-549
Origin: United States
4Vacuum gauge
ZJ-54D
Hefei Ditea
5Touch screen
B05S111
Taiwan Delta
6Standard leak
DT-8
Hefei Ditea
7Ion source
ZAXIS-810
Filament for iridium wire (coated with yttrium oxide)
