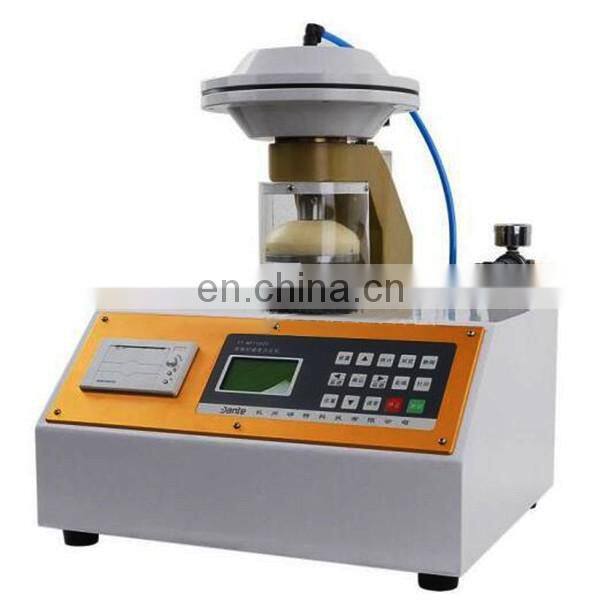

YT-NPY5600W Microcomputer Cardboard Bursting Strength Meter
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | YANTE | Place of Origin | Shaanxi, China | |
| Model Number | YT-NPY5600W | Power | Electronic |
Product Description
Features:
1. Adopt advanced microcomputer processing and touch-screen technology.
2. The pressure curve can be displayed in real-time to reveal all statistic result of the test data.
3. Elaborately designed as convenient in adjustment, stable in performance and auto reset function.
4. Using the ADI high speed, high precision 24-bit professional AD converter, to promote the accuracy of the test results.
5. Includes automatic measurement, conversion, printing and data storage functions.
6. Apply software with pressure curve real-time display function.
7. High-speed micro thermal printers in high printing speed and noiseless, without the use of ink and ribbon, convenient and low failure rate.
8. Integration design as compact structure and easy maintenance.
Technical Parameters:
Measuring range | 50~1600 kpa |
Resolution | 0.1 kPa |
Pressure indicating value | ±0.5%F.S |
Indicating value repeatability relative error | < 0.5% |
Refueling rate | 95±15ml/min |
Sample clamping force | 430kpa or more |
Diaphragm resistance | pressure in 30±kPa, when bulge height is 9 mm |
Hydraulic system airtightness | When at measuring range upper limit, pressure can lower down <10%p max. in one minute. |
Sampler Diameter | fit for GB/T1539 |
Continuous test time | about 5 secs |
Working conditions | temperature 10~35°C, relative humidity is less than 85% |
Dimension | 440 mm (L)*360 mm (W)*500 mm (H) |
Weight | about 55 kg |

We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
