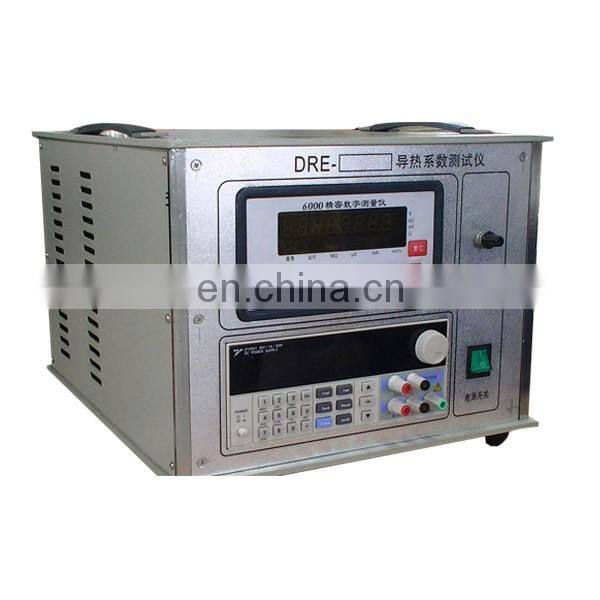

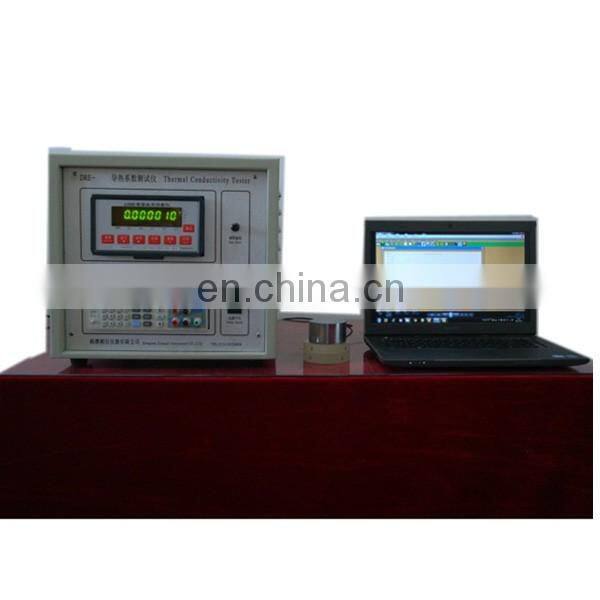

DRE -2D Coefficient of Thermal Conductivity Tester (transient Plane Heat Source Method)

DRE -2D coefficient of thermal conductivity tester (transient plane heat source method)

Introduction

DRE - 2D coefficient of thermal conductivity tester using transient plane heat source method,

the main measurement of solid, powder, coating, film, colloid, the coefficient of thermal conductivity of anisotropic materials. The instrument based on TPS transient plane heat source technology, with a Hot Disk as the thermal conductivity detector probe.

Feature
(1) direct measurement of heat transmission, can save a lot of time;
(2) not as a static method is affected by the contact thermal resistance;
(3) do not need special sample preparation, the relatively smooth surface of the sample.
Technical  Parameter
1, the coefficient of thermal conductivity measurement range: 0.01-100 w/mk;
2, measuring time: 1-600 seconds;
3, accuracy, better than 5%;
4, temperature range, standard measurement: room temperature,
(be optional according to customer requirements of various temperature test temperature, another fee)
5, sample size: greater than 15 mm high, relatively smooth surface of the sample is greater than the diameter of 45 mm, powder materials directly inserted into the detection;
6, instruments and reference standards: ISO 22007-2008.

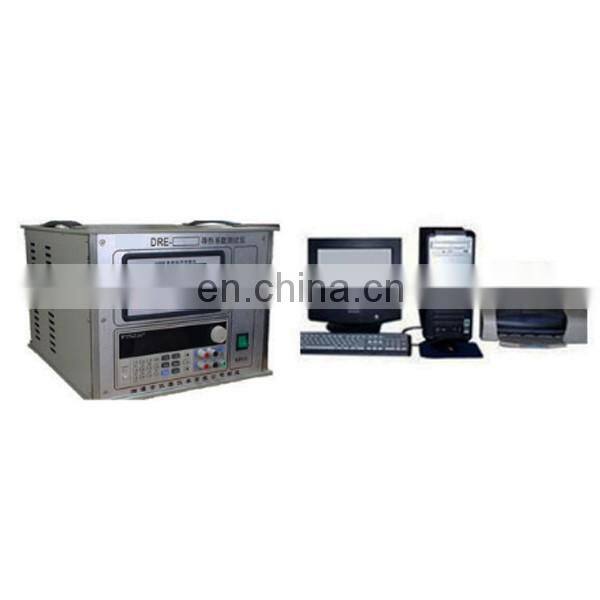

7, easy operation, fast test speed, will only test probe sandwiched between two pieces of sample block, using a simple software click operation which can obtain the coefficient of thermal conductivity of sample to be tested.8 Configuration: DRE - 2 c test host one set, one set of software, test probe one, the buyer should bring along their own computer printer.
