SJCQY-3000 Quick Automatic Hydrogen Measuring Instrument
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | HEBISANJIE-S | Place of Origin | Shaanxi, China | |
| Model Number | SJCQY-3000 |
Product Description

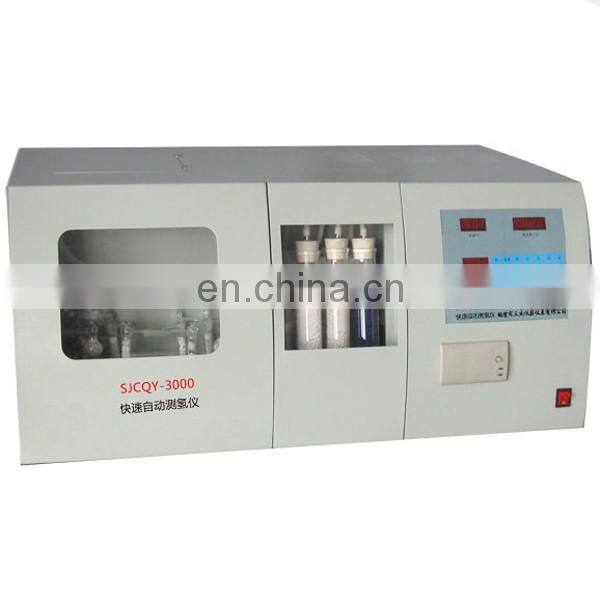

SJCQY-3000 quick automatic hydrogen measuring instrument
Introduction:
It is suitable for the determination of the content of organic matter in coal and other solid materials, and it is an indispensable instrument for the experiment of coal, electric power, metallurgy, coking products and other departments.
The accuracy and precision of the determination result is better than that of the national standard GB/T476-2008. The instrument has a rapid determination of the three section furnace combustion method.
The result is accurate, the operation is simple, the automation degree is high, the touch keyboard input each kind of data, the printer to make the final result, the volume is small, the weight is light and so on.
At present, the laboratory is an ideal hydrogen measuring instrument, at the same time, it can also be used to absorb carbon.
Features:
Fully automatic integrated design, carbon is more convenient, reduce the complexity of the program.
All the test process automation, digital display of the content of hydrogen in the determination of the number of milligrams or percent
Automatic data processing; automatic print analysis results
Measurement range, measurement accuracy, high accuracy
Analysis speed, automatic temperature control, timing
The operation is simple, the automation degree is high
Technical parameters:
Measure range:hydrogen:0-20% Carbon:0-100%
Power supply :220V±10%50Hz
Temperature control:850℃±10℃ 300℃±10℃
Film electrolysis voltage:9V
decomposition voltage:24V
Current :electrolytic current>600mA
Terminal current<70mA
Measure time: about 10-15min
Stability: linear degree ±0.1%
Determination of allowable error:
Hydrogen :≤0.15% Carbon:≤0.50%
Sample: granularity<0.2mm
