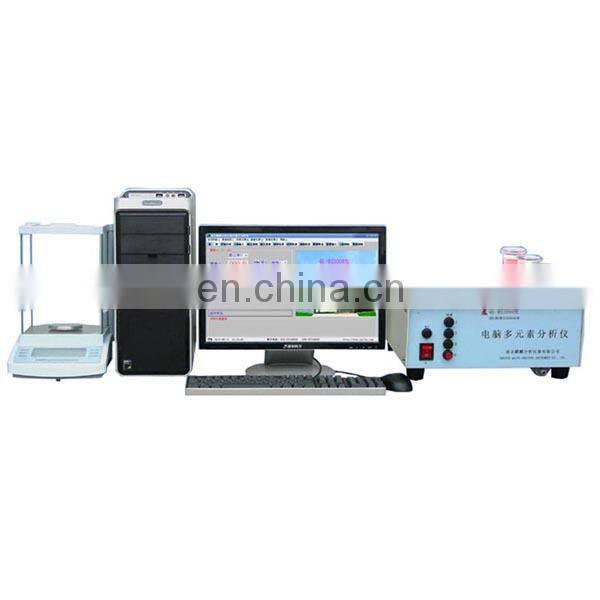

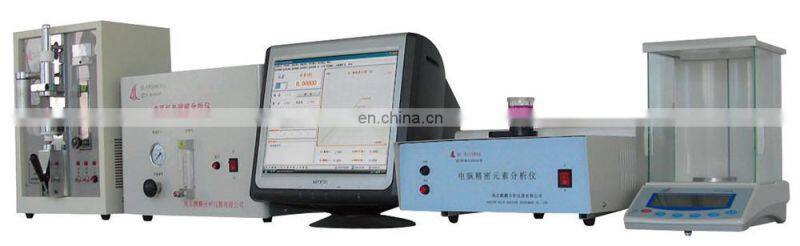

QL-BS3000 Multi-element Analyzer Alloy Raw Cast Iron Carbon Steel Analyzer

QL-BS3000 multi-element analyzer Alloy raw cast iron carbon steel analyzer

Brief introduction

QL-BS3000 computer multi elemental analyzer is the latest model of a multi element analyzer, detection of plain carbon steel, low alloy steel, high alloy steel, cast iron, ductile iron, alloy cast iron and other materials of Si, Mn, P, Cr, Ni, Mo, Cu, Ti a variety of elements. There are three channels, each channel has thirty small channels (can be stored in 30 working curves), the number of channels can be increased according to the user's need, in principle, can detect 90 or more elements, brand computer control, all Chinese menu operation, desktop printer printing results. It can meet the needs of many elements of the materials in the aspects of metallurgy, machinery, chemical industry, etc..

Features

Brand computer control, full Chinese menu operation, desktop printer print results.

Using the latest computer and microcontroller technology to achieve program control and data processing. Can quickly and accurately measure the quality of a variety of elements in the steel and nonferrous metals, high degree of automation, quantitative accuracy and reliable, less reagent and other characteristics, improve the analysis accuracy and precision, can directly display the quality score and print.

The use of cold light source patented technology, imported optoelectronic components, since the school zero and full;

Electronic balance is not quantitative, the computer automatically read in weight or manual type, easy analysis operation.

Three channels, each channel has thirty small channels (can be stored in 30 working curves), the number of channels can be increased according to the user's needs;

It is convenient to adjust the potentiometer to change the different wavelength of cold light source, and expand the type and content of the measuring element;

The machine is easy to operate, and has no valve and pipeline aging, and prolong the service life.

Technical parameter

Measurement range: (because the instrument can detect more elements, now in the steel Mn, P, Si, Cr, Ni and other common elements for example)

Manganese 0.10 ~ 15%, silicon 0.10 ~ 5%, phosphorus 0.005 ~ 0.80%,

CR 0.01 ~ 25%, Mo 0.101 ~ 6%, Mg 0.010 ~ 0.100%,

Nickel 0.010 ~ 30%, rare earth 0.01 ~ 0.100%,......

Such as changing the test conditions, the range can be expanded accordingly.

Analysis time: two minutes

Analysis error: GB223.3 ~ 5 ~ 1988, etc.

Analysis method: the use of the machine outside the sample, the photoelectric colorimetric method.

The standard curve: the memory of the 90 curves (which can be arbitrarily added to the user's needs), using the regression method to establish the curve equation.

Input / output mode: brand computer control, data export format can be set according to the requirements of the laboratory, printer output.
