China High Quality Mini Temperature And Humidity Test Chamber
What Is The Specification Of Temperature And Humidity Climatic Test Chamber?
Product name |
China High Quality Mini Temperature And Humidity Test Chamber | ||||||
Inside size WxHxD (cm) |
40x50x40 |
50x60x50 |
50x75x60 |
60x85x80 |
80x95x80 |
100x100x80 |
100x100x100 |
Outside size WxHxD (cm) |
90x136x94 |
100x146x104 |
100x161x117 |
110x171x137 |
130x181x137 |
150x186x137 |
150x186x157 |
Temperature range |
-70℃~+100℃(150℃) |
||||||
Humidity range |
20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific codition) |
||||||
Accuracy/ uniformly |
±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. |
||||||
Accuracy / volatility |
±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. |
||||||
Heating / cooling time |
About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) |
||||||
Inside material |
Stainless steel SUS 304# |
||||||
Insulation material |
High-temperature high-density amino acid ethyl ester foam insulation materials, |
||||||
Cooling system |
Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃) |
||||||
protection |
compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system |
||||||
accessories |
recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball |
||||||
controller |
TEMI300 digital controller from South Korea |
||||||
compressor |
France “Taikang” |
||||||
power |
1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
||||||
Corresponding standard:
1.International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
2. Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3
3. Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B:dry heat
JIS C60068-2-1-1995 test method A:low temperature
4. USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test
5. Chinese National Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
GB/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
GB/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
6. China's National Military Environment Test Equipment
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 hot and humid condition testing
Configuration and function of software:
Wind circulative system |
1. Using multi-wing centrifugal Rewind fans, strengthen the axis is made of aluminum alloy in order to attain loop forced convection. 2. Stainless steel added long axis. 3. Stainless Steel Multi-blade centrifugal wind whee. |
Water Supply system |
1. with water tank at the back 2. automatically supply water 3. warning for the shortage of water |

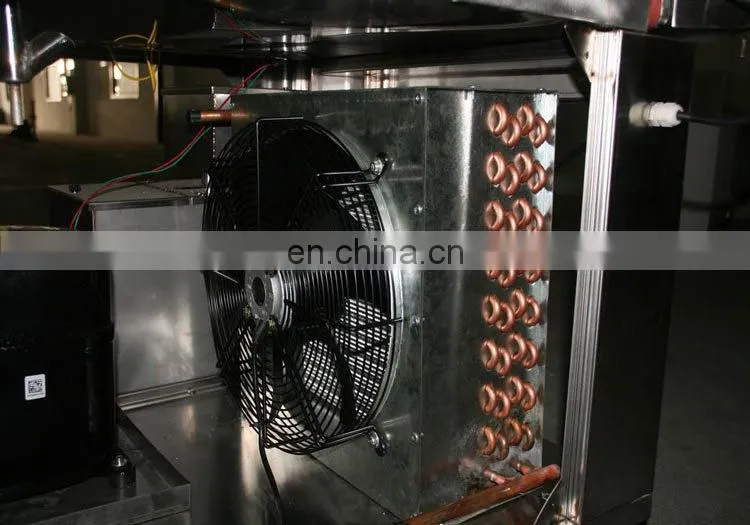

Cooling system (diego-style, single machine, refrigerator) |
1. Compressor: France “Taikang” Hermetic Refrigeration Compressor TFHK2522K two unit 2. Refrigerator:Air-cool condenser coil 3. Evaporator: pomfret Chip Multi-Segment 4. Other Accessories: Imported desiccant cooling, Freon-borne window, the U.S. oil-water separator 5. Expansion System: Italian expansion valve |
Temperature and humidity control system |

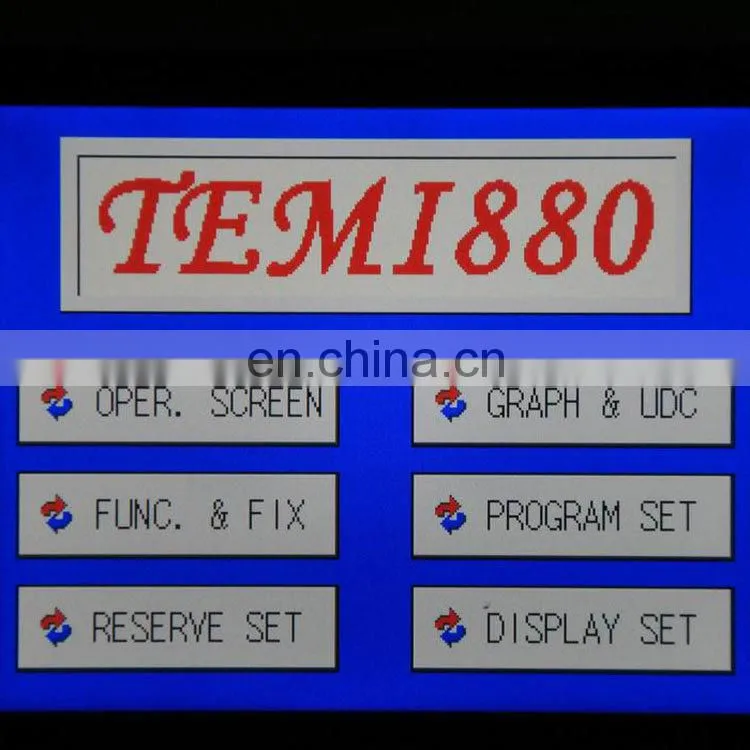

1.Control Specifications: Original South Korea TEMI880 color LCD touch screen in English and Chinese Accuracy: ±0.5 ℃±1% R.H, Resolution: 0.1 ℃ 1% R.H 2. Functions can accommodate memory 999 program, optional single-stage control or multi-segment program control, operating as a functional form model, can be directly programmed and solid curve of function and the RS-232 communication interface. nnect with computer, directly monitored by the computer to operate program, it also records temperature data and print! (Need anther purchase) 4.The main components of the system is equipped with a safe inspection and interface devices, when an fault occurs, immediately through the LCD to display fault status and cut off the power 5.With the cumulative operating time, display the run time 6.Sensor: PT100 Sensor 7.Temperature and humidity control diagram attached |
Standard Accessories |
1. two groups adjustable shelf board made of stainless steel, the distance can be arbitrarily changed 2.Perspective vacuum glass windows, explosion-proof type 3.Wide-angle lighting, using energy-saving high-efficiency fluorescent lights 4.The machine is equipped with 4 group adjustable fixed wheel axle and control indicator light 5. a pair of Φ50mm hole for testing |
Power |
Three-phase 380V ± 10% Power frequency: 50Hz ± 2% 4KW |
|
Information and services
|
1. To provide equipment drawing, electrical schematics, electrical wiring diagram, consume parts, operating manuals and other technical information, copy of two, and to provide essential technical information. 2. Trained how to operate and maintain the equipment, so the staff grasp to the skill of of equipment. 3. Equipment, one year warranty for free maintenance service: after one year provide the accessories for paying costs price. |

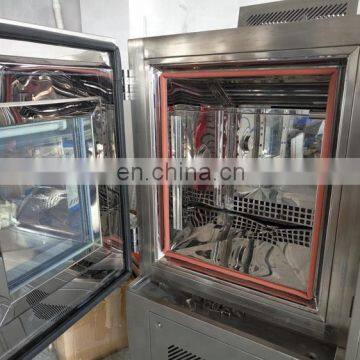

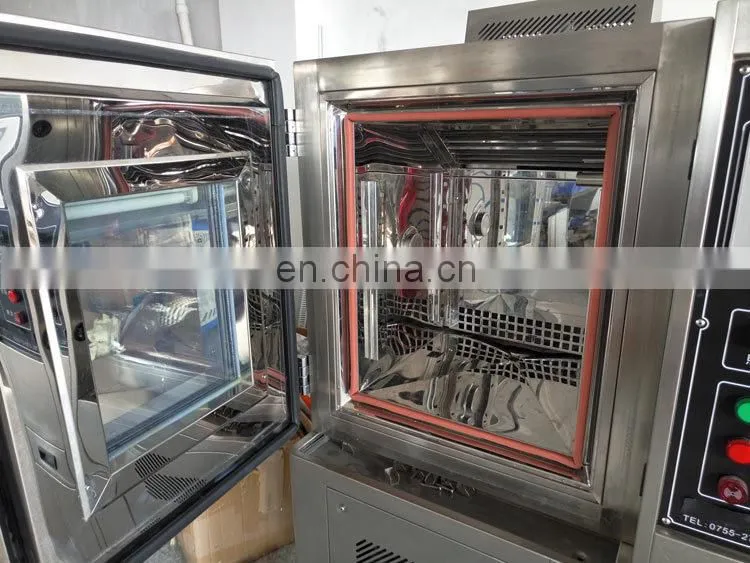

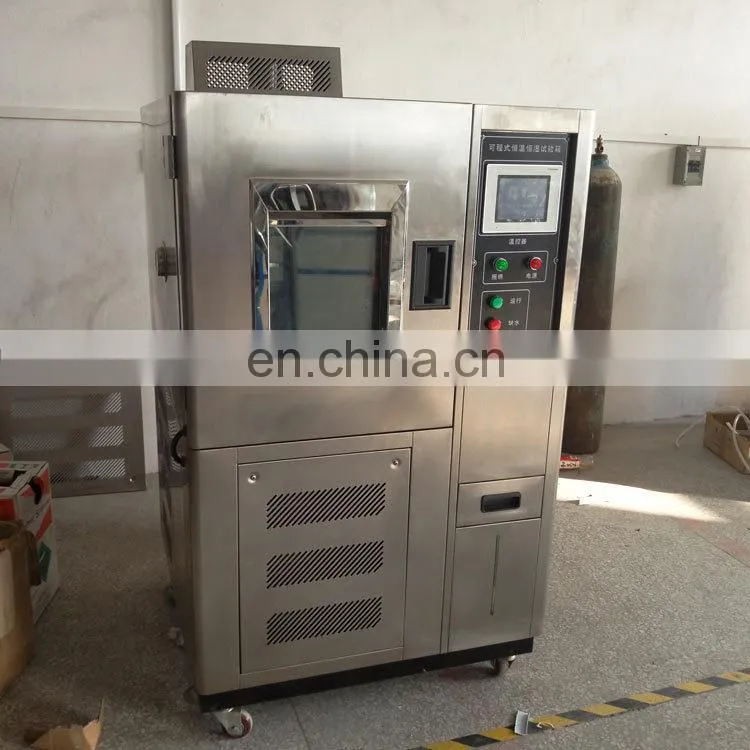

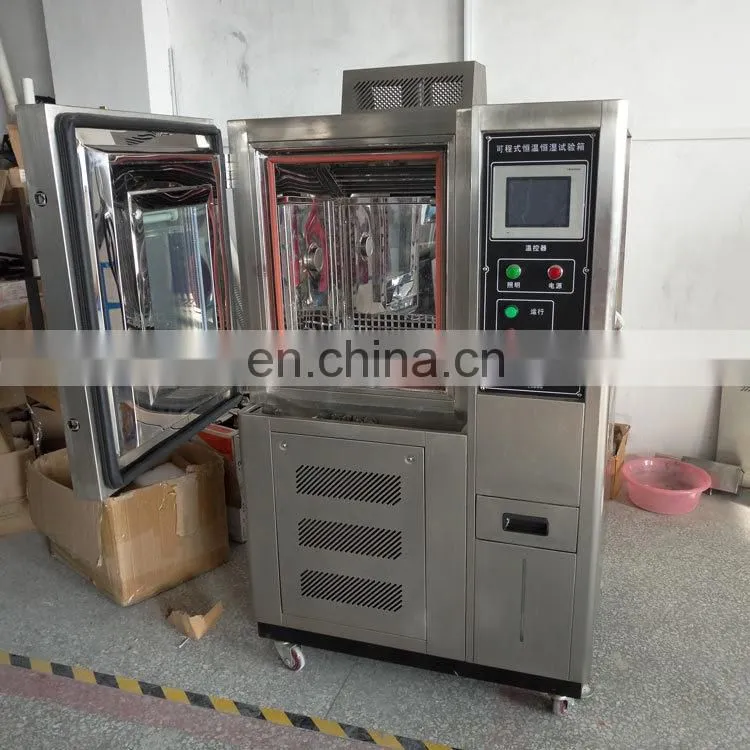

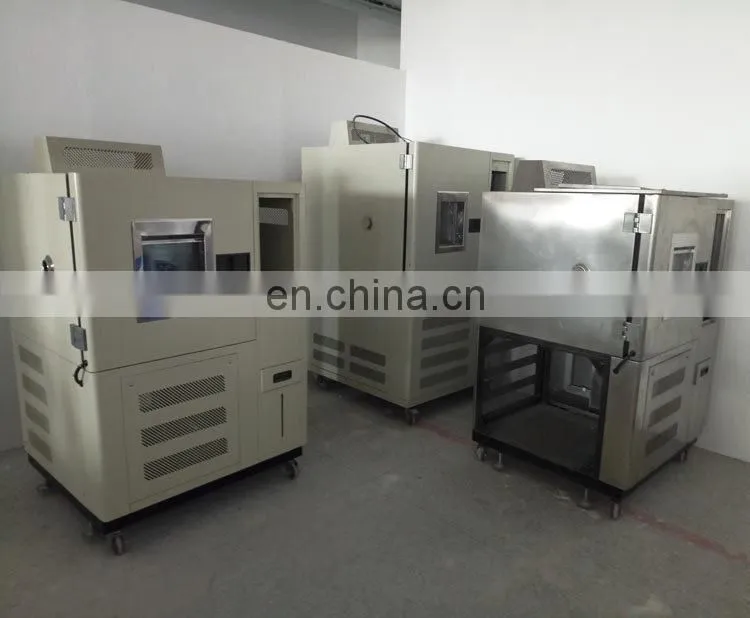

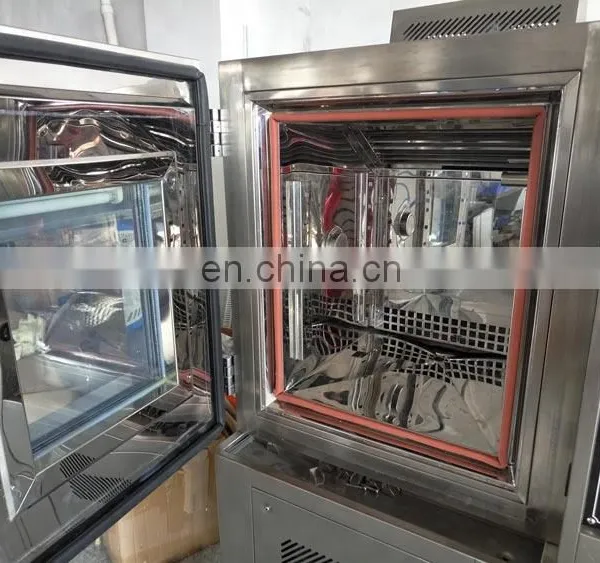

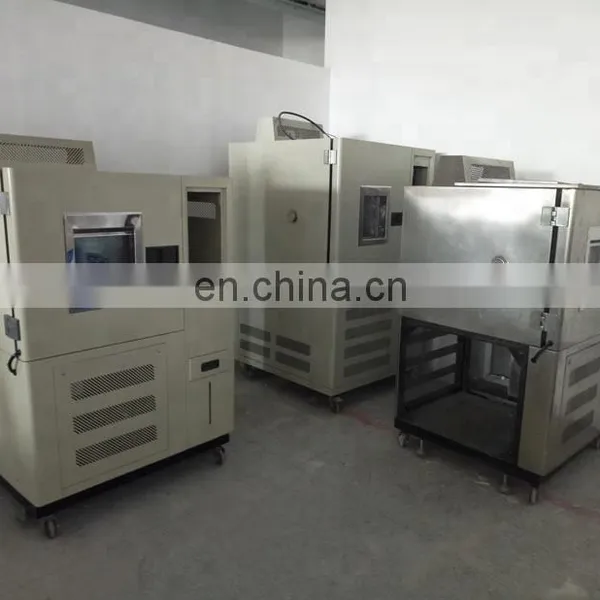

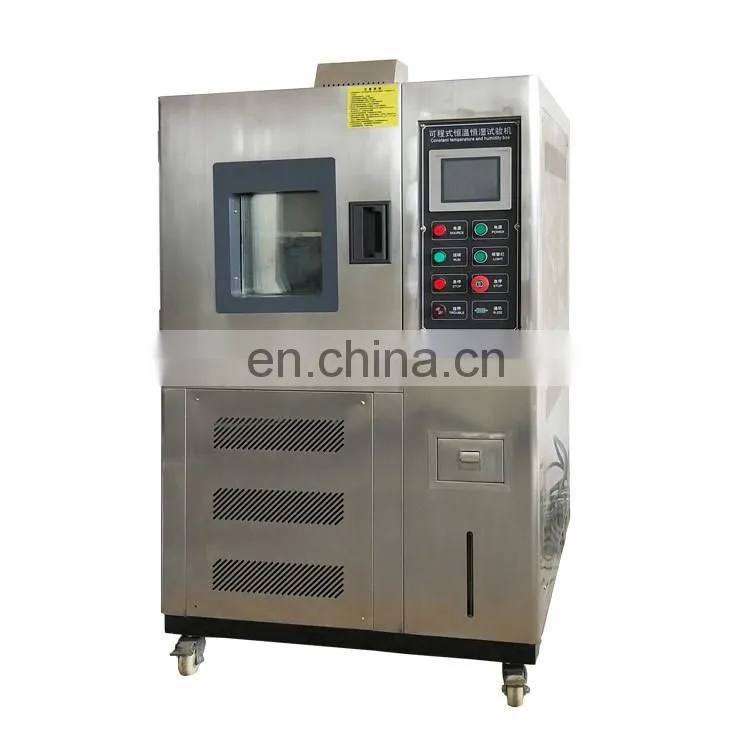

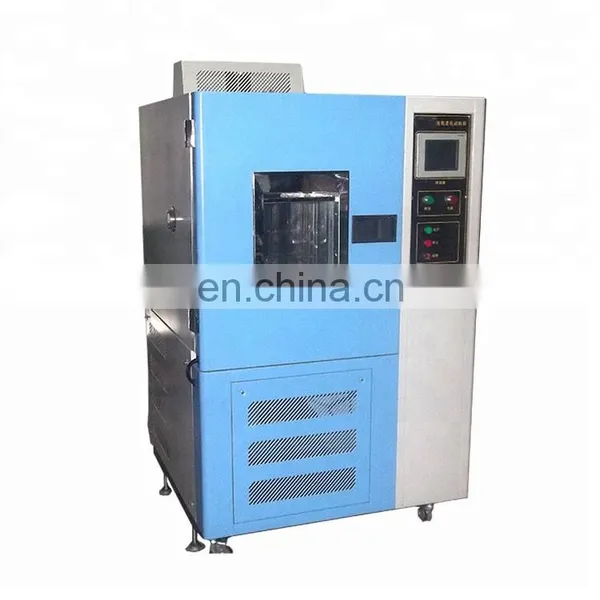

Product Pictures
*Shippment
-By sea
-By plane
-By couriers, TNT, DHL, FEDEX, UPS, etc.
*Standard Export carton
1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.
Dongguan Right Testing Machine Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.
Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.
If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
FAQ
Q1: How long is the delivery time?
A: 5 working days after we received your deposit or order confirmed.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
