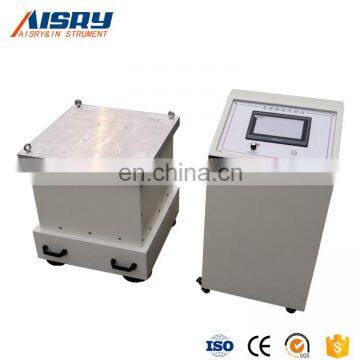

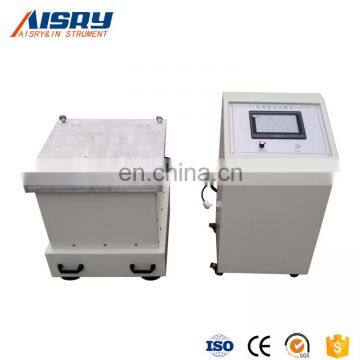

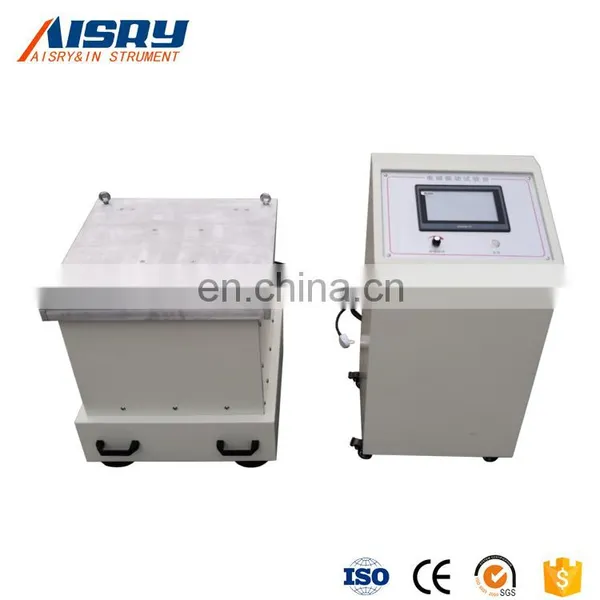

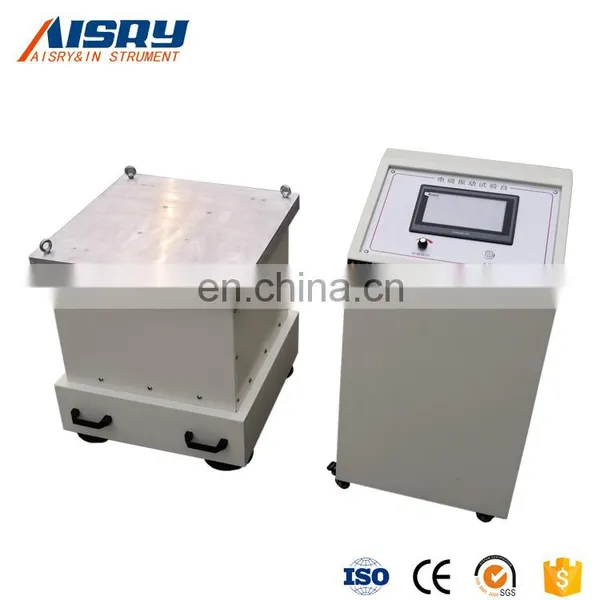

High Quality Three-axis Scanning Frequency Vibration Table Test Machine
Application :

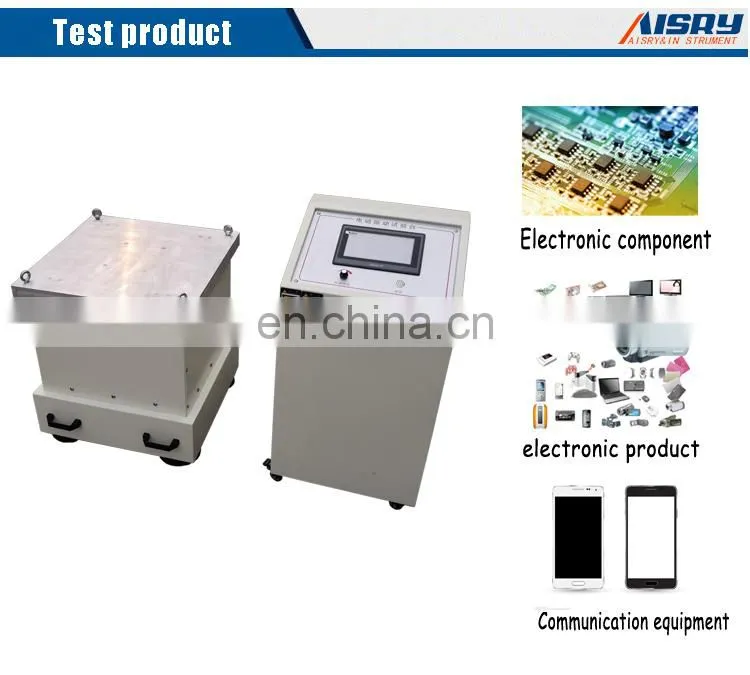

Electromagnetic vibration table is widely used in national defense, aviation, communications, electronics, automobile, household appliances, and other industries.This type of equipment is used to detect early failure, simulate actual condition assessment and structural strength test. The product has wide application range, wide application area, significant test effect and reliability.Sine wave, frequency modulation, sweep frequency, programmable, multiple frequency, logarithm, time control.
1. The most advanced and simple operation technology is adopted. The fixed frequency and sweep frequency can be easily switched at any time
2. It has the function of time timing and countdown display

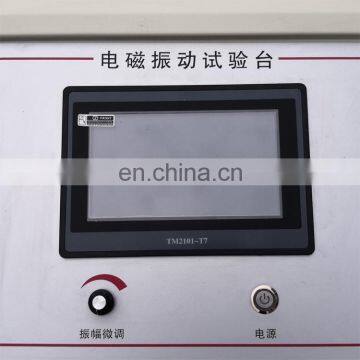

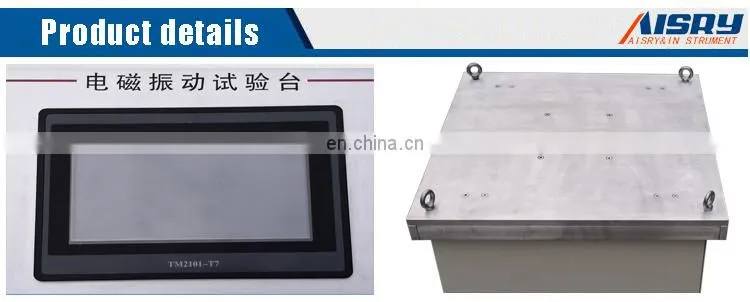

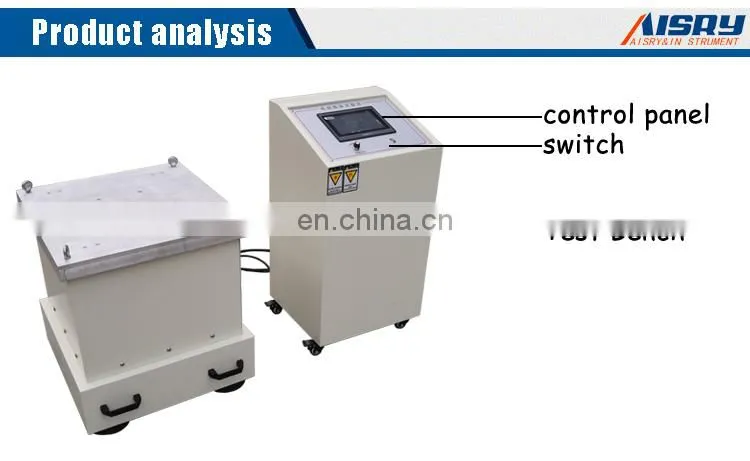

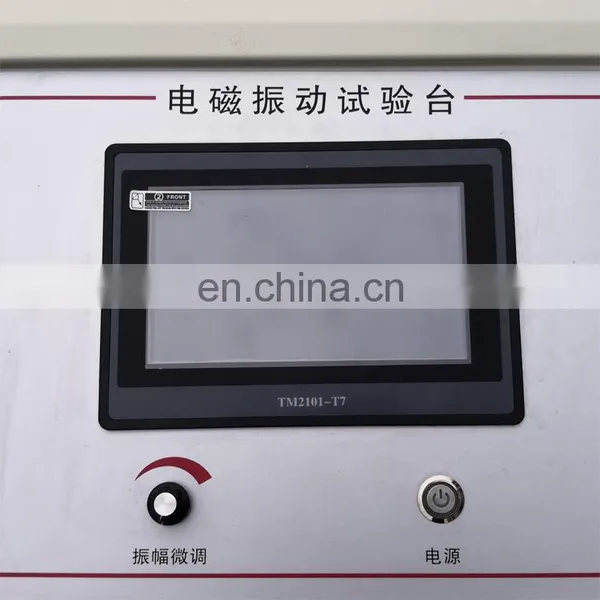

3. Touch controller, simple and convenient to operate, solves the disadvantages of digital display operation inconvenience
4. Real-time synchronous display of control parameters without manual intervention.

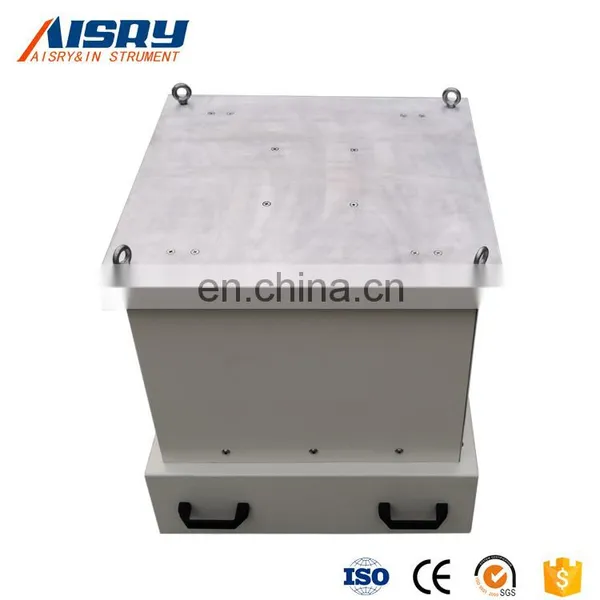

5. The base of the machine platform is equipped with vibration absorber, which is convenient to install and runs smoothly without installing anchor screws
6. Built-in amplitude prediction procedures and easy amplitude modulation
7. Four-point synchronous excitation, even vibration of the table
8. Stepless adjustment of amplitude, constant frequency and sweep operating functions can meet various test requirements in different industries
9. Add anti-interference circuit to solve the interference caused by strong electromagnetic field to the control circuit
10. Curve display function allows frequency waveform changes to be viewed at any time
Specification:
| Test load | 60KG |
| Vibration direction | Vertical + horizontal (manual switching) |

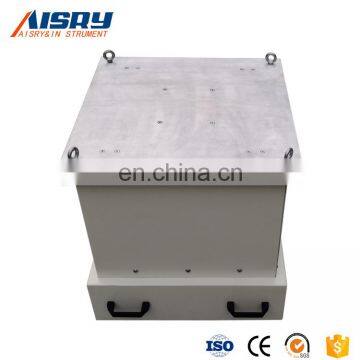

| Table size (mm) | 500×500 |
| The amplitude (P - P) | 0 -- 5mm (random, variable with frequency, adjustable) |
| Frequency Sweep | 1 -- 600HZ can be set arbitrarily (true standard frequency sweep back and forth) |
| Maximum Acceleration | 10g |
| Indicator Function | Frequency modulation, frequency sweep, time |
| Accuracy | Frequency can be displayed to 0.1Hz, and the precision is 0.1Hz |
| Vibration Waveform | sine wave |
| Time Controls | Time can be set |
| Power | 1.2KW |
