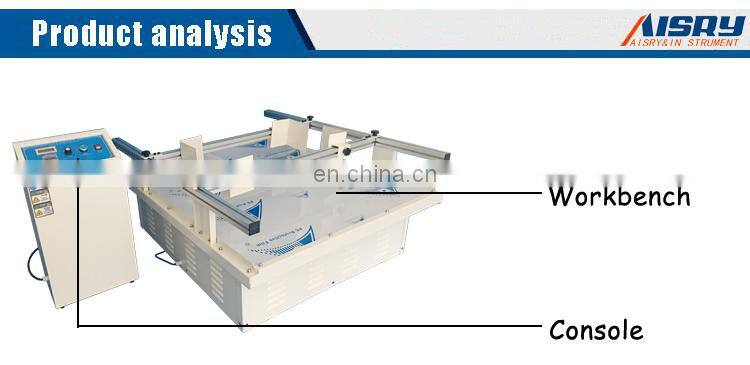

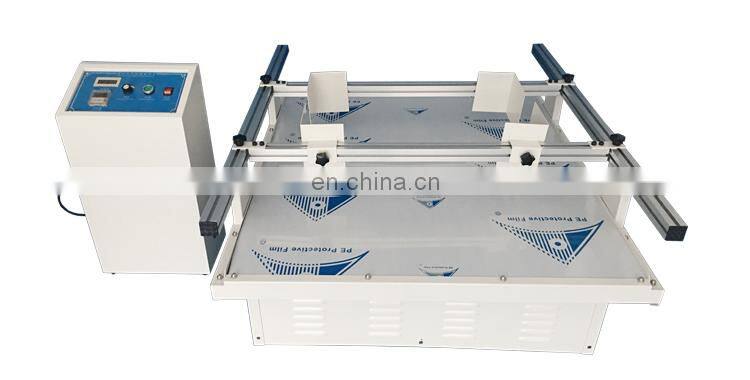

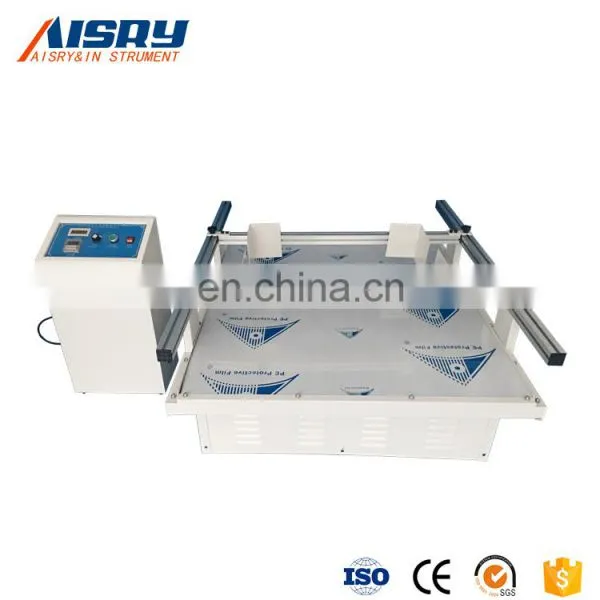

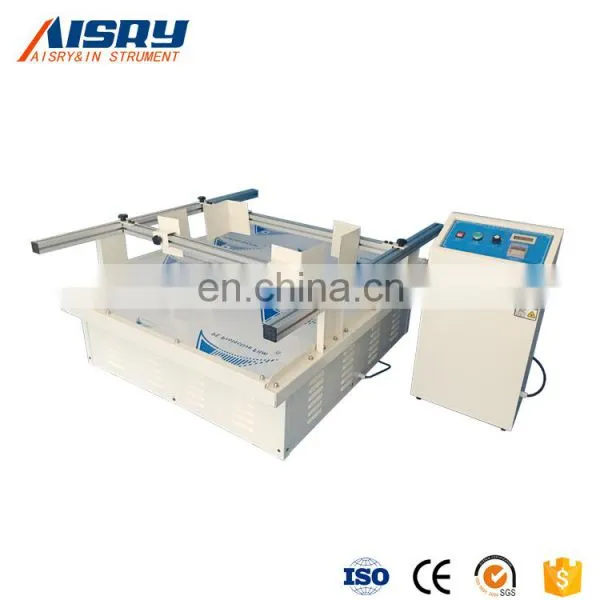

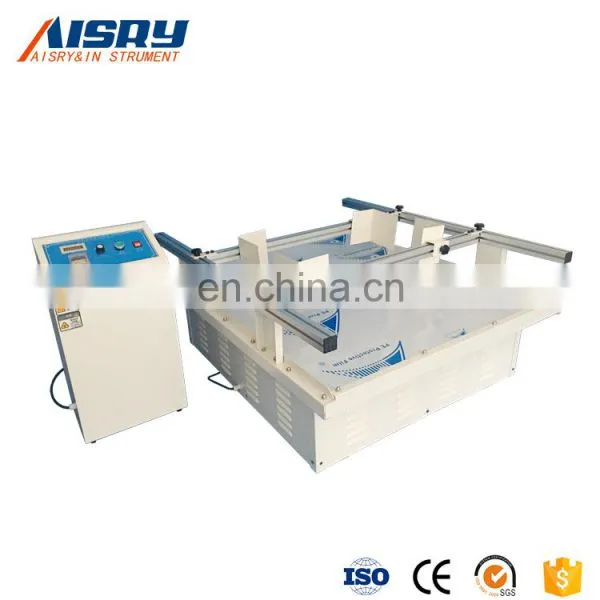

CE Certificate Simulating Transport Vibration Testing Machine Price

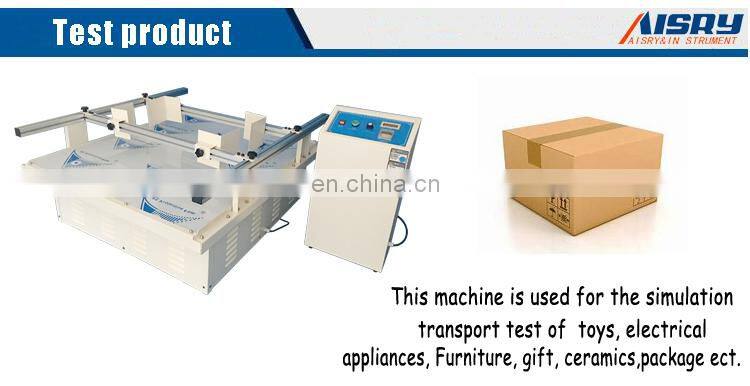

Application:

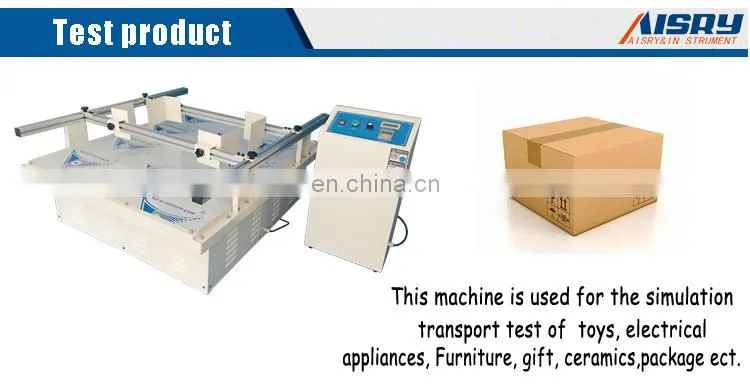

transport simulation vibration testing equipment price is used for simulating the destruction of the vibration of all kinds of packaging items, PC board, electric appliances etc. during the transportation, test results can be used as reference for design packaging.
Specification:
Model |
ASR-5024 |
Vibration frequency |
100-300rpm |
Frequency Precision |
2rpm |
Load Capacity |
100kg |
Displacement |
25.4mm |
Standard Motions |
Rotary DC Motion (Standard) |
Standard Table Size |
1200x1000 mm |
Timing functions |
99H99M |
Dimensions |
120*108*60 cm (LxWxH) |
Weight |
155kg |
Features:
1.Vibration frequency digital display, high precision;
2.synchronous mute broadband transmission, low noise;

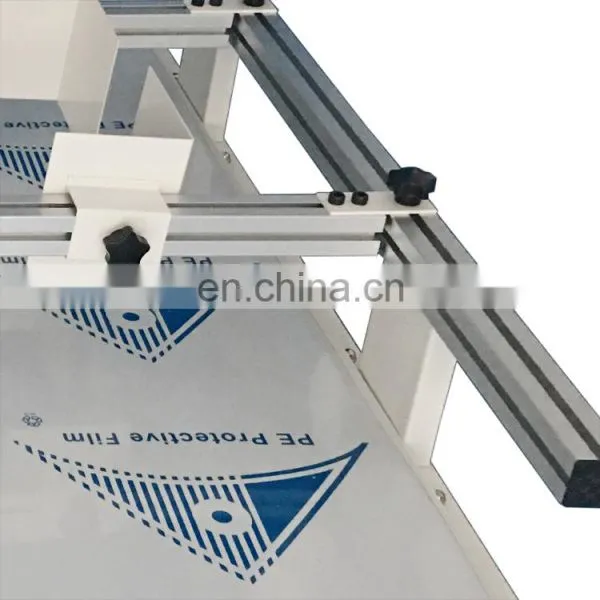

3.sample fixture with rail, easy to operate and safe;
4.Heavy-duty channel base with vibration-damping rubber, easy to install, strong load, stable operation;
5.According to the restructuring of similar equipment in Europe and America, rotary vibration, in line with European and American transport norms;
6.Suitable for toys, electronics, furniture, gifts, ceramics, packaging and transportation industry to test the packaging of products;
7.According to the restructuring of similar equipment in Europe and America, rotary vibration, in line with European and American transport standards.
Note: When moving the machine can not lift the aluminum around to prevent bending deformation

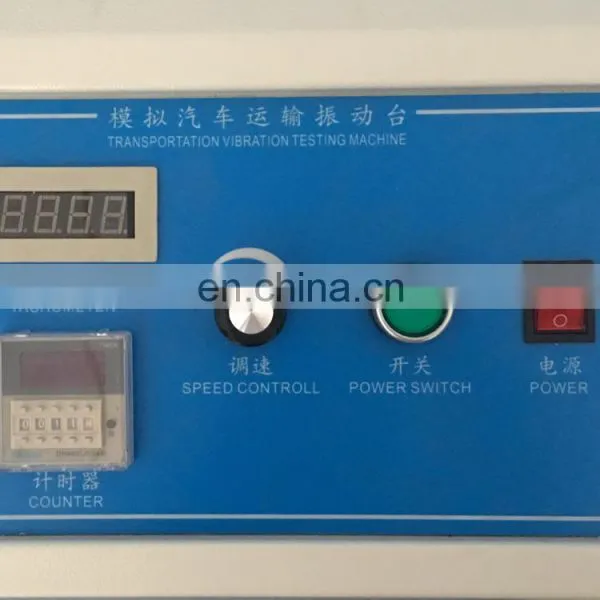

Operation method:
1. The test product is placed shaker center;
2. Use a wrench to loosen the nut on the positioning bar
3. With both hands patted the mobile, the test product is fixed with a fixture, tighten the nut;
4. Check if the equipment collides with other objects (this equipment must have a space of 0.5m to 1m around it);
5. Regulator accelerates from left to right, (Note: the minimum speed of not less than 100 rpm, the maximum speed does not exceed 300 rpm;
9. After the test is completed, press the "STOP" key (red light is on), then the motor is powered off and the test data is removed and recorded;
10. Press the "POWER" switch to turn off the power.
