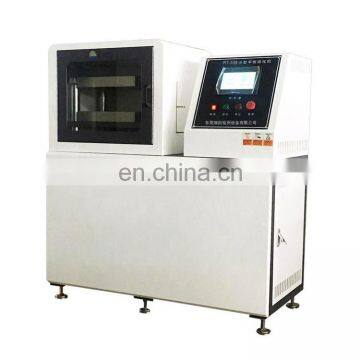

China New Product PLC Controller 50 Ton Heated Hydraulic Press For Sale
- 300 Set / Sets per Month
- Shenzhen
- T/T Credit Card
- ASTM D3574 Flexible Celluar Material Urethane Foam Indentation Hardness Testing Equipment
- Digital Type 500N Garment Button Pull Out Test Equipment
- China High Quality Mini Temperature And Humidity Test Chamber
- Hot Sale Cardboard Internal Ply Bond Testing Equipment Price
- ASR-5644 Mobile Phone Coating Abrasion Tester Price
- Coating Click Marking Test Machine Click Line Life Test Machine
Product Details
Brand Name: | RIGHT | Place of Origin: | Guangdong, China |
Product Description
China New Product PLC Controller 50 Ton Heated Hydraulic Press For Sale
What Specification Of Rubber Mat Vulcanizing Press?
Product name | China New Product PLC Controller 50 Ton Heated Hydraulic Press For Sale |
Parameter Capacity | 10,20,30,50,80T |
Temperature range | Normal temperature~300℃ |
Temperature precision | ±2℃ |
Temperature controller | LED button type control mode and PLC touch-screen programmed control mode |
The method of temperature control | LED button type control temperature or PLC touch-screen programmed control temperature |
The way of heating | Electric heating |
Heating up time | Normal temperature~160℃ about 20min |
Timer | LED display or PLC touch-screen displayer |
Heating plate size | 350x350mm,500x500mm,1m*1m |
The number of heating plate layers | Single-layer |
The max.distance between up and lower heating plate | 300,500mm,800mm |
The min.distance between up and lower heating plate | 50mm |
Exhaust function | Low pressure automatically exhaust 3~10 times per minute (Adjustable) |
Cylinder stroke | Max 250mm |
Cylinder speed | 11mm/s |
Pressure gauge | 0~200kg/sq.cm |
Dimension | 2*1.5*2.5(m) |
Weight | 2.5T |
Motor power | 4KW |
Pressure | 380V/60HZ(or 50HZ) |
Equipment Description:
China New Product PLC Controller 50 Ton Heated Hydraulic Press For Sale is the main equipment that can be used in pressing all kinds of rubber model product and non-model product
. In addition, it also can be used in pressing all kinds of thermosetting plastic and foaming rubber and plastic
product. With independent actuating unit and electric system, apply button centralized control. Within certain
limits, working pressure and heating temperature can be adjusted. This kind of model, can be classified
manual operate and semi-automatic operate. The flat vulcanizing machine with the function of a high degree
of automation, easy operation,energy conservation and environment protection, and also superior
performance.
Main Features:
1.Controlled by PC or manual, performance reliable, high degree of automation. Can automatically identify the
wrong command,so avoid the accidence which caused by wrong operation.
2.The preprogrammed process can be locked, the operator can not change without authorization, so tha
t guarantee the quality of pressed product.
3.With the function of timing open mold, automatically exhaust and reinforcing pressure,etc.
4.Optional: Manual operating or Automatic operating mode
5.Electrical heating pressing machine apply digital display(or pointed type) to control temperature, and
control and display the heating plate temperature.
Application:
It mainly used in producing vulcanizing parallel adhesive type, such as conveyor belt,driving belt, and
pressing rubber products, foamed plastic,thermosetting plastic(bakelite) and other plastic products. It also
suitable for O ring,the key products such as cell phone, keyboard,remote-control,sealing washer such as pressure cooker, electric cooker, mechanical accessories for household, food,
health and medical treatment. At the same time,this machine alsocan be used in complex silicone and rubber
fittings production and process, such as nipple,medical supplies, health product, artware, toy seal,
electroconductive rubber, automotive rubber parts, industrial rubber parts,medical silicone product, sport
equipment, all kinds of vessels, multilayer product and so on.
Introduction:
China Laboratory Water Cooled Electronic Heating Used Rubber Mat Vulcanizing Press, Vulcanizing Equipment is mainly used in vulcanizing flat belt(such as conveyor belt,driving belt). It is a kind of hydraulic machine. The
main function of flat vulcanizing machine is providing the pressure and temperature for vulcanization. The
pressure is generated from hydraulic system by hydraulic cylinder, and the temperature
provided by heating tube. The control part of flat vulcanizing machine is mainly consist of high and low pump
motor on hydraulic station,magnetic valve,vulcanization time,motion instructions and alarm function, etc.
10T Vulcanzing press machine
Click for More Information!!!
Dongguan Right Testing Machine Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.
Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.
If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
What FAQ Of Rubber Mat Vulcanizing Press?
Q1: How long is the delivery time?
A: 5 working days after we received your deposit or order confirmed.
Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc
Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc
Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .
Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
