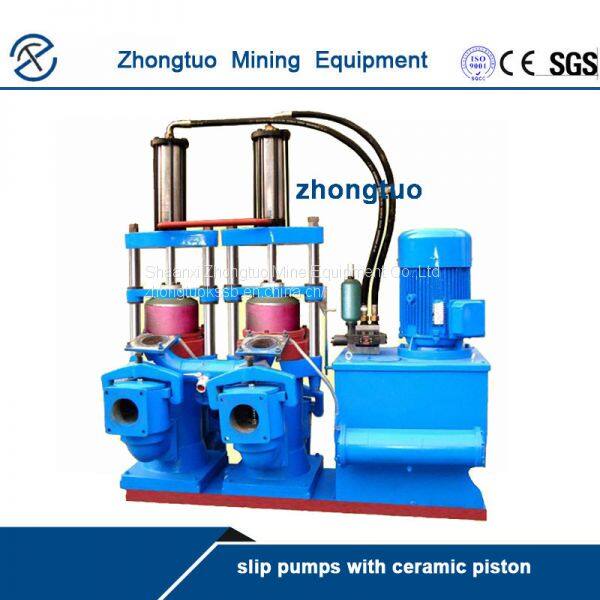

China slip pumps with ceramic piston manufacturers
Characteristics and uses of ceramic piston pump:
Model |
Rated flow rate（m3/h） |
Pressure range（MPa） |
Rated pressure（MPa） |
jig frequency(frequency / minute) |
stroke（mm） |
Motor power（kw） |
Shape size (long x width x high) |
Weight（kg） |
YB-85 |
3.0 |
0-2.0 |
2.0 |
24 |
200 |
4 |
1230x850x1600 |
550 |
YB-120D |
7.1 |
0-2.5 |
2.0 |
24 |
200 |
11 |
1600x1200x1900 |
850 |
YB-120G |
7.1 |
0-3.0 |
2.5 |
24 |
250 |
11 |
1600x1200x1900 |
850 |
YB-140D |
10 |
0-2.5 |
2.0 |
26 |
250 |
11 |
1600x1200x1900 |
900 |
YB-140G |
10 |
0-3.0 |
2.5 |
26 |
250 |
11 |
1600x1200x1900 |
900 |
YB-200 |
19 |
0-2.5 |
2.0 |
26 |
250 |
18.5 |
1700x1300x2000 |
1300 |
YB-250 |
30 |
0-2.5 |
2.0 |
22 |
250 |
22 |
1960x1700x2150 |
1800 |

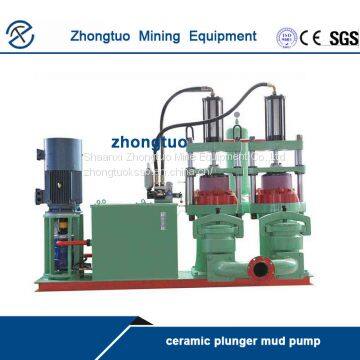

YB series of ceramic plunger mud pump for high pressure mud pump hydraulic double cylinder double acting, the pump has stable operation, reliable operation, low noise, high pressure, small pressure fluctuation, small volume, light weight, easy installation and maintenance and long service life, mainly used for various types of slurry, can also be used for long distance transportation of mud water coal slurry (or other suspension), and can be equipped with filter press.
Parameters of slip pumps with ceramic piston:
YB series of oil pressure ceramic plunger pump main characteristics:
1, hydraulic drive, double cylinder double action, large flow, high lift;
2, operation balance, long time continuous work, strong reliability;
3, the noise is small, the pressure can adapt to a great range of pressure adjustment, and the pressure fluctuation is small.
4. It can be used in the field of high wear resistance, acid corrosion resistance.

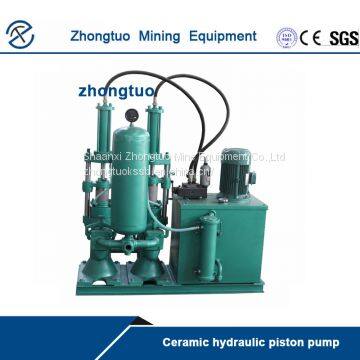

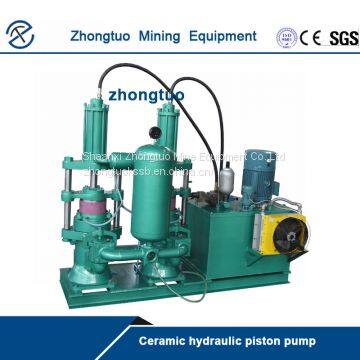

The YB series oil pressure ceramic plunger pump is driven by hydraulic pressure, and its plunger is made of wear-resistant and corrosion resistant alumina ceramics. According to the different characteristics of ceramic industry and chemical industry, the pump body can be made into cast iron, stainless steel and so on.
sludge piston pump is divided into high pressure pump, low pressure large flow pump and variable pump.
High pressure pumps are suitable for long-distance or high altitude delivery of slurry.
The low pressure large flow pump is suitable for the steady and large quantity of slurry.
The variable pump is suitable for the use of all kinds of filter press and filter device. This pump will increase the pressure automatically with the increase of the filter density and reduce the flow rate.
YB series Ceramic hydraulic piston pump are mainly used in the transport of ceramic slurry, coal slurry transport, kaolin and non-metallic mineral suspension. It can also be used for the transportation of food suspension, chemical slurry, electronic slurry, magnetic material and so on.
It can transport solid content more than 70% concentrated suspension characteristics, making it highly suitable for use with spray drying tower, filter press and other drying equipment, and has high work efficiency and energy saving efficiency.
