Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board

Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board thumbnail-1
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board thumbnail-2
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board thumbnail-3
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board thumbnail-4
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board thumbnail-5
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board photo-1
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board photo-2
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board photo-3

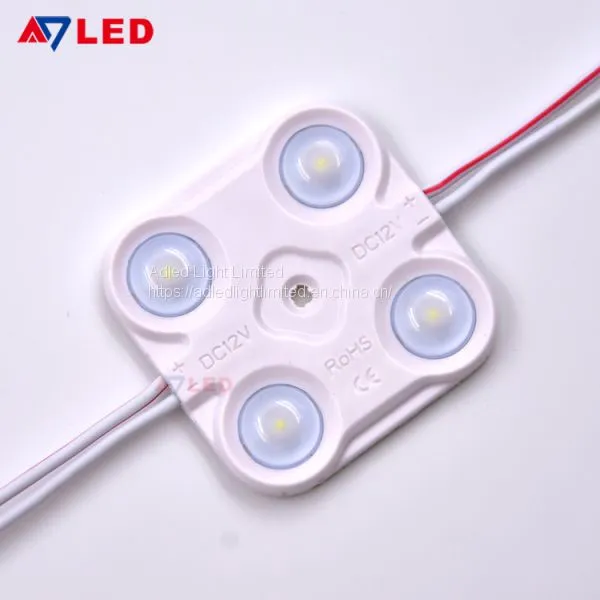

Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board photo-4
Adled Light New Ip67 Waterproof 6500k Single Color Injection Led Module for Backlit Advertising Board photo-5
US$ 0.55 - 0.65 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
ADLED
Place of Origin:
China
Model Number:
AD4141-2835-4
Contact Supplier Request Quote Chat Now
Adled Light Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ADLED
Place of Origin China
Model Number AD4141-2835-4
Certification CE, ROHS
Power Other, 2W
Color Temperature 2800-3200/6000-7000K/9000-12000K
Storage Temperature(℃) -40°, 80°
Operating Temperature(℃) -20°, 60°
Color Rendering Index(Ra) 80
Viewing Angle(°) 160°
Power Dissipation 0.2%
Optical Attenuation(%) 0.3
Luminous Flux(lm) 180lm
Luminous Intensity 45lm/w
Emitting Color Other, Warm white/White/Cool White
Chip Material Other, Epistar
Adled Light new ip67 waterproof 6500k single color injection led module for backlit advertising board

low consumption white 6500k backlight 12v led module china for acrylic led sign boards

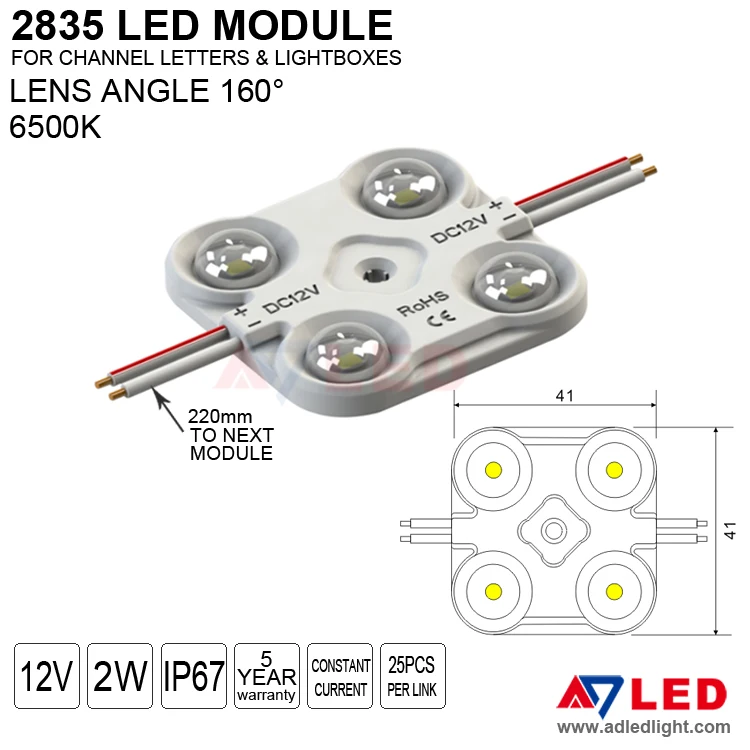

Parameters:

Name

SMD2835 high brightness led module

Model

AD4141-2835-4

Led type

Epistar led SMD2835

Work voltage

DC12V

Power

2W

Led QTY

4leds

Beam angle

160°

IP grade

IP67

Lumen

180lm

Size

41*41*4.5 mm

Warranty

5 years

HS code

9405409000

Other service

OEM & ODM,One to One communication,Free Samples

Application

Recommended depth 10-20cm channel letters and light boxes



Features:

1. Powered by 2835 SMD LED

2. DC12V low-voltage power supply,security and energy efficiency

3. Injection molding process

4. Aluminium base for good heat sinking

5. 25pcs per series

6. Long life-span



low consumption white 6500k backlight 12v led module china for acrylic led sign boards



Led module light distribution graph:



low consumption white 6500k backlight 12v led module china for acrylic led sign boards

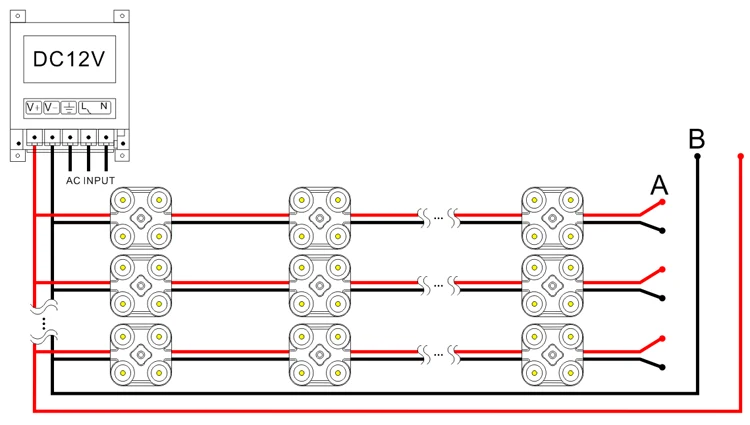

Mode of connection:

low consumption white 6500k backlight 12v led module china for acrylic led sign boards



 low consumption white 6500k backlight 12v led module china for acrylic led sign boardslow consumption white 6500k backlight 12v led module china for acrylic led sign boardslow consumption white 6500k backlight 12v led module china for acrylic led sign boardslow consumption white 6500k backlight 12v led module china for acrylic led sign boards



Related Products:

low consumption white 6500k backlight 12v led module china for acrylic led sign boards



 Applications:

High brightness 12v 2835 led module light suitable for channel letter lighting
High brightness 12v 2835 led module light suitable for lightbox lighting source
High brightness 12v 2835 led module light suitable for advertising signs
High brightness 12v 2835 led module light suitable for led signage
High brightness 12v 2835 led module light suitable for exterior and interior banner lighting
High brightness 12v 2835 led module light suitable for commercial signs
High brightness 12v 2835 led module light suitable for decorative lights
High brightness 12v 2835 led module light suitable for indoor and outdoor illuminated signs

Recommended depth 10-20cm channel letters and light boxes



 low consumption white 6500k backlight 12v led module china for acrylic led sign boards

low consumption white 6500k backlight 12v led module china for acrylic led sign boards

low consumption white 6500k backlight 12v led module china for acrylic led sign boards

low consumption white 6500k backlight 12v led module china for acrylic led sign boards

FAQ

1. What is MOQ?

We can support you any quantity, including the samples order.



2. Can I get free samples?

Yes, we are glad to send you one type sample or mixed types samples.



3. What is delivery time?

For our hot products, we have in stock. Other products takes around 5-7days.



4. Can I also buy LED Power supply from you?

Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power

supply and other led transformers.



5. How can I get the best solution for light box?

Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs within 24 hours.



Official website:


Adled official website including all products of led module and led strip, Please copy the website and then paste to your browser.

low consumption white 6500k backlight 12v led module china for acrylic led sign boards



low consumption white 6500k backlight 12v led module china for acrylic led sign boards
