Home > Products > Led Module > Adled Light 2019 new 2w 200lm 180degree 2835 smd led driver module for light box

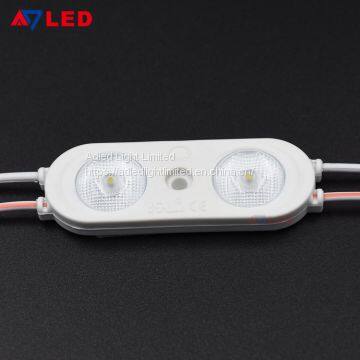

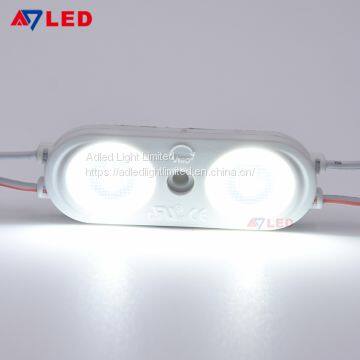

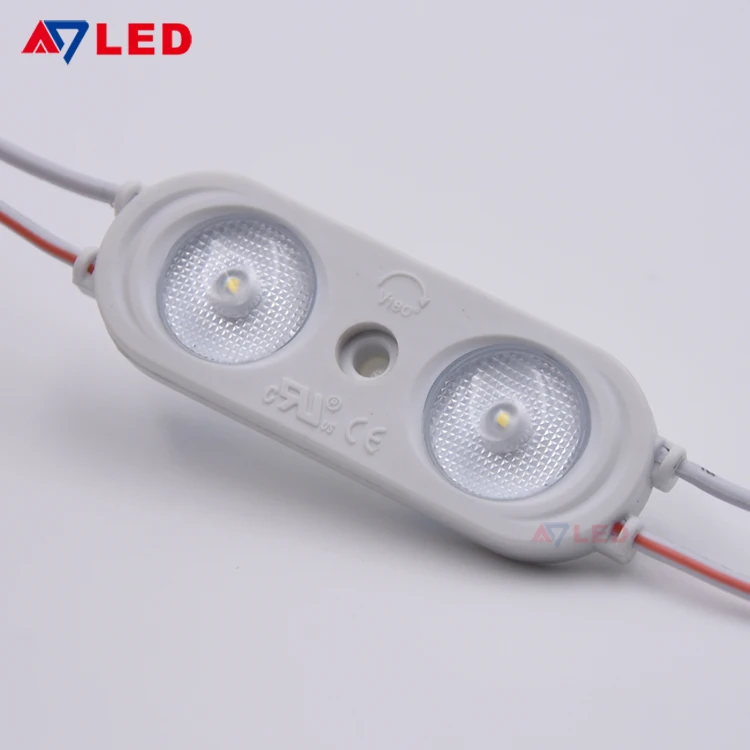

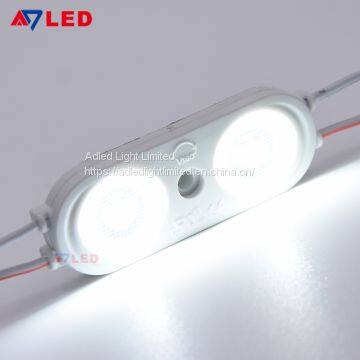

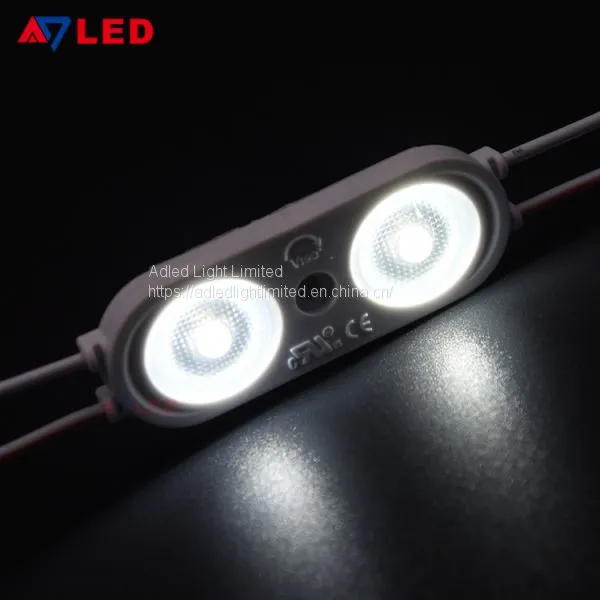

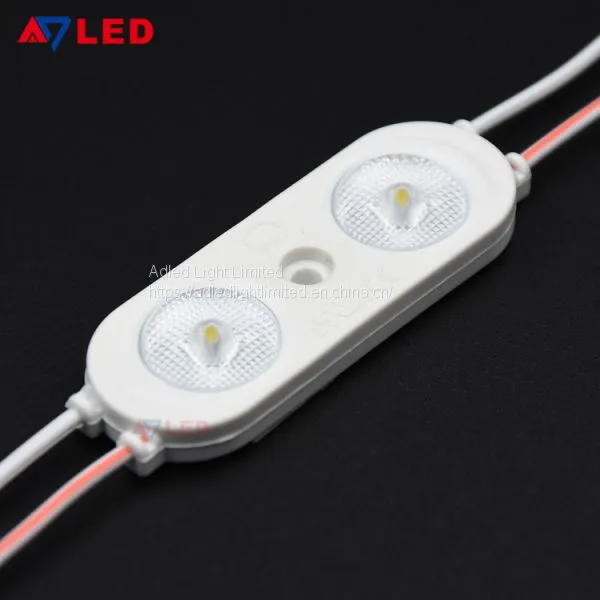

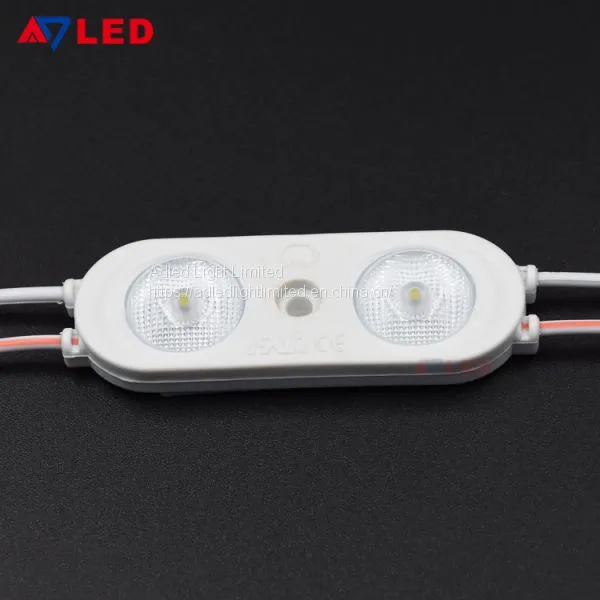

Adled Light 2019 new 2w 200lm 180degree 2835 smd led driver module for light box
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T PayPal Other
- 3 days
Product Details
Brand Name: | ADLED | Place of Origin: | China | Model Number: | AD6221-2835-2 |
Certification: | CE, ROHS | Power: | Other, 2W | Color Temperature: | 2800-3200/6000-7000k |
Storage Temperature(℃): | -40°, 65° | Operating Temperature(℃): | -20°, 45° | Color Rendering Index(Ra): | 80 |
Viewing Angle(°): | 180° | Power Dissipation: | 0.02% | Luminous Flux(lm): | 200lm |
Emitting Color: | Other, Warm white/white | Chip Material: | AlGaInP |
Product Description
2019 new 2w 200lm 180degree 2835 smd led driver module for light box
Parameters:
Name | Super bright SMD2835 led module |
Model | AD6221-2835-2 |
Led type | SMD 2835 LED |
Work voltage | DC12V |
Power | 2W |
Led QTY | 2leds |
Beam angle | 180° |
IP grade | IP67 |
Lumen | 200lm |
Size | 62*21*8.1 mm |
Warranty | 5 years |
HS code | 9405409000 |
Other service | OEM & ODM,One to One communication,Free Samples |
Application | Recommended depth 8-25cm channel letters and light boxes |
Features:
1. Top-tier LED chip
2. DC12V low-voltage power supply,security and energy efficiency
3. Micro prism lens producing a wide, even light spread,Max:P:D=3.5:1
4. Versatile mounting options
5. Constant Current Technology
6. 180 degree lens
Comparison of lens and luminous efficiency:
Led module light distribution graph:
Mode of connection:
