PRODUCT FEATURE
Applying component: Fasteners, screws, nuts, bolts, and so on
Suitable for inspecting all kind of fasteners
Sorting range: M1~M20
Application: all kind of fastener, screws, nut, bolt and so on
Speed: Non-stop Inspection with High Speed 600~1000 parts per minute
user-friendly ,easy for operation and maintenance
Inspection criteria
Eddy current: inspection hardness, material mix, with /without heat treatment
parts head width / height / pinhole depth / recess shape / burr in recess/ spiral thread / thread I.D. / thread E.D./ neck length / shank vertical / screw length / first thread / drunk thread / head crack / plating / insert nut thread / burr / dimension / etc.
Specification
Applying component: screw, nut, bolt, other fasteners
Diameter of component: M1-M20
Length of component: up to 120 mm
Head Width: 25mm
No. of CCD: 1~5 CCD

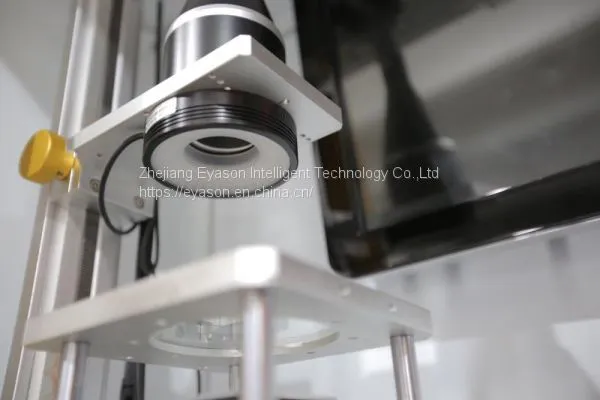

Vision system: Highly magnified CCD camera / light source sets
Software: Eyason II version 2.5
Supply and output: Feeding bowl / linear track / sorting bins (Good/NG)
Speed: 200~1000 pcs/min
Power: AC 220 - 240V / 50Hz
Mainframe: Industrial computer, MITSUBISHI servo motor, Industrial CCD, Telecentric lens
Machine spec.: 1065mmL×860mmW×1,855mmH
