Help CenterRotary Disk Sorting Machine For M3~M8 Screws and Bolts, Under Head Length Less Than 80mm Available for 2~5 Cameras
Related Products
-
Rotary Disk Sorting Machine For M8~M16 Screws and Bolts, Under Head Length Less Than 150mm Available for 2~8 CamerasUS$ 50000 - 100000MOQ: 1 Set -
Rotary Disk Sorting Machine for Long Screws For M8~M16 Screws and Bolts, Under Head Length 125~250mm Available for 2~7 CamerasUS$ 50000 - 100000MOQ: 1 Set
-
Glass Dial Sorting Machine Available for 2~4 Cameras OR 2~6 Cameras High Transparent Glass Dial. Fit for Grease-free Parts Which Can be Placed on the Glass Plate SteadilyUS$ 50000 - 100000MOQ: 1 Set
-
Screw Bolts Nuts Fasteners Optical Sorting MachineUS$ 50000 - 100000MOQ: 1 Set
-
Hot Sale Optical Fastener and Nuts Sorting Machine for ScrewUS$ 4500 - 100000MOQ: 1 Set
Feature
For M3~M8 Screws and bolts, under head length less than 80mm
Available for 2~5 cameras
Can install rotating mechanism to inspect recess depth or broken pin
Optional: wheel crack checking system for head crack inspection
Optional: bottom sorting system for inspecting cutter presence.
Optional: Bending checking module

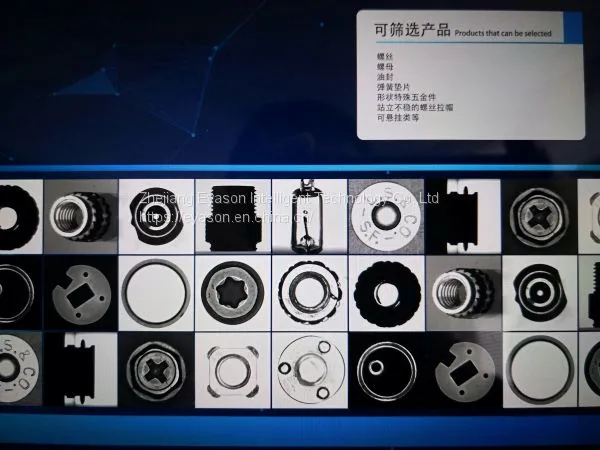

Sorting Items
Screw-head height, width Recess depth Pinhole Excess Material
Ineffective thread length Minor Thread Diameter Feature Angle
Major Thread Diameter Pitch Distance Feature No.
Bevel Thread Screw Length Feature Similarity
Cone Point Zinc:Yes or No（Head Top View） Feature Length
Pinhole Alignment Head Crack AF/AC
Head Mark Roundness Mixed Material
Inner Roundness Inner Concentricity Broken pin
Inner Excess Material Shorten AF Deformed thread
Feature-Center Distance
Specifications
Wire Diameter: φ3~8mm Head Width: φ5~15mm Head Height: 2~10mm
Length Under Head: 5~80mm Sorting Speed: 100~600/PPM Sorting Precision: ±1 pixel
