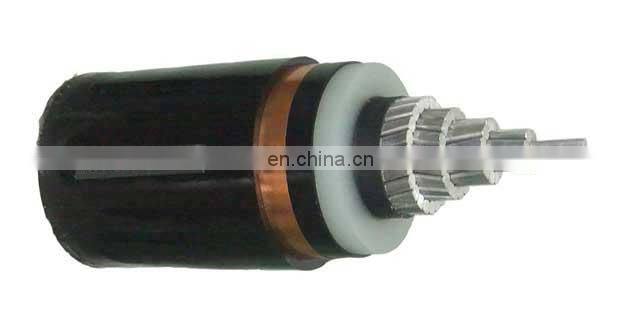

NA2XS2Y 33 kV Medium Voltage Cable with DIN Standard

NA2XS2Y 33 kV Medium Voltage Cable with DIN Standard

Top ten cable manufacturer in China
Largest cable manufacturer in north China
Annual export volume exceed 200million USD
With UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS  Products certifications
With TUV type testing report
Wide products range
ISO9001,ISO18001,OHSAS18001 system certifications
CNAS approval laboratory

Cable Construction
Circular bare copper conductor of stranded wires to HD 383
Inner semi-conducting coating
Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
Outer extrusion of semi-conducting coating spliced with the insulation
Wrapping of conductive material
Shield: Braiding of copper wires with one or two tapes applied helically
Wrapping
PE-outer jacket black, compound DMP2 to HD 620.1
Jacket color: Black

Technical Data
XLPE-insulated power cables to IEC 60502, DIN VDE 0276 part 620, HD 620 S1
Temperature Range During installation up to -20°C/-4°F
Operating Temperature Max. +90°C/194°F
Short Circuit Temperature +250°C/482°F (short circuit duration up to 5 sec.)
Nominal Voltages U0/U 6/10 kV, 12/20 kV, 18/30 kV
Operating Voltages for 6/10 kV = max. 12 kV 12/20 kV = max. 24 kV 18/30 kV = max. 36 kV
Test Voltages for 6/10 kV = 15 kV 12/20 kV = 30 kV 18/30 kV = 45 kV
Minimum Bending Radius During installation max. 15x cable Ø
Nominal Voltage :6/10kv 12/20kv 18/30kv
Nominal cross-section :35/50/70/95/120/150/185/240/300/400/500mm2
Cores:single core or three cores

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. We also  have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,

KEMA, TUV, SABS,PBS,Bureau Veritas, Lloyd,GL,NK,KR certifications.

 We have obtained UL certifications for TC cable, DLO cable,RHH/RHW/RHW-2,XHHW/XHHW-2/SIS, THHN,SER/SEU/USE, MV-90/MV-105,MC cable,AC cable,TECK 90,SOOW,Welding cable,Mining cable,type DG,PV cable,Shipboard cable  and so on.

Wooden Drum Package or Iron-wooden drum

 HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.

CNAS accredited national level laboratory.

1. 25 years production experience and 16 years export experience .

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

fessional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample.

10.We can do that you expect.
