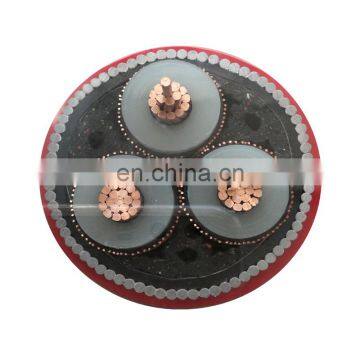

TUV 3C 50 35KV armoured LSOH power cable

 Medium voltage 3 core cu/xlpe/LSOH/swa/LSOH armoured power cable

 1 Construction

one core

conductor: copper or aluminium

insulation: xlpe

inner sheath: LSOH- low smoke halogen free

armour: aluminum wire or steel tap

sheath:LSOH- low smoke halogen free

standard:IEC60502.2 .IEC60332. (fire test).IEC60754(halogen free test). IEC61034(smoke density)

three core

 conductor: copper or aluminium

insulation: xlpe

inner sheath: LSOH- low smoke halogen free

armour: steel wire  galvanized or steel tap

sheath: LSOH- low smoke halogen free

standard:IEC60502.2.IEC60332..IEC60754. IEC61034

2 Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable. Power cables for power networks, underground, outdoors and in cable ducting

3 Using features:

1.Rated voltage: Uo/U:3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).

2. No. of core: Single core or three cores.

3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250℃.

4. D.C. resistance of the conductor complies with the stipulations of 3.6/6kV, 6/10kV(11kV), 12/20kV(24kV), 19/33kV, 26/35kV(35kV).

5. The environment temperature should be no lower than 0oC when lay. Otherwise it should be preheated.

6. The cable is laid without horizontal drop limit.

7. Working Frequency Voltage Test: 3.5Uo/5min without puncture.

8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.

9. Minimum Bending Radius

Single core - Fixed: 15 x overall diameter

3 core - Fixed: 12 x overall diameter

(Single core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former)

Note:

The single core armored cables are used for D.C. system only. If used for A.C. system, the magnetic isolation should be applied on the steel armor wires of non-magnetical materials should be used.
