Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | yjv32 | Type | Medium Voltage | |
| Insulation Material | XLPE | |||
| Jacket | PVC |
Product Description

cables power cable, 3 core mv copper cable, types of electrical underground cables 4 core armoured cable 120mm;xlpe cable price;xlpe insulated power cables
TOP TEN CABLE MANUFACTURER IN CHINA
LARGEST CABLE MANUFACTUER IN NORTH CHINA
ANNUAL EXPORT VOLUME EXCEED 200MILLION USD
WITH UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVAL LABROTARY
Hebei Huatong MV power cable is manufactured according to IEC60502,IEC60332,IEC60311
and/or the BS, DIN and/or other types of international standards.
We can also produce flame retardant cable,water blocking cable,low-smoke
low-halogen cable and low-smoke halogen free cable,and also can design and
produce cables according to the requirement of our clients.

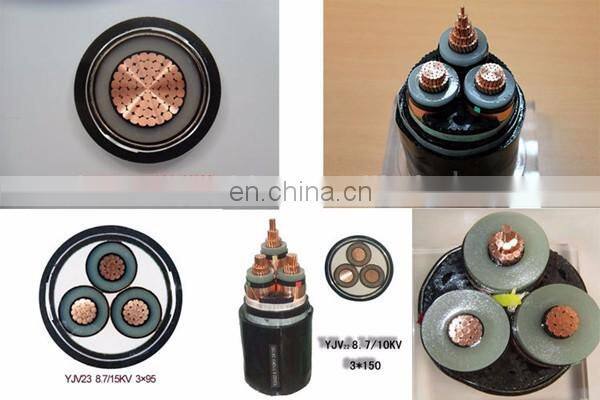

Structure
Conductor: Solid or stranded copper/Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)
Sheath: Polyvinyl chloride (PVC)
a, Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
b, Nominal Cross Section (mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
| Type | Designation | Applications | |
| VV | Copper conductor,PVC insulated, PVC sheathed power cable | For laying indoors,in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct. | |
| VLV | Aluminum conductor,PVC insulated, PVC sheathed power cable | ||
| VY | Copper conductor, PVC insulated, PE sheathed power cable | ||
| VLY | Aluminum conductor, PVC insulated, PE sheathed power cable | ||
| VV22 | Copper conductor,PVC insulated, steel tape armoured,PVC sheathed power cable | For laying indoors,in tunnel in cable trench, or direct in ground,able to bear external mechanical forces. Single core cable is not allowed to laid in magnetic duct. | |
| VLV22 | Aluminum conductor,PVC insulated, steel tape armoured,PVC sheathed power cable | ||
| VV23 | Copper conductor,PVC insulated, steel tape armoured,PE sheathed power cable | ||
| VLV23 | Aluminum conductor,PVC insulated, steel tape armoured,PE sheathed power cable | ||
| VV32 | Copper conductor,PVC insulated, steel wire armoured,PVC sheathed power cable | For laying indoors,in tunnel cable trench, well or direct in ground,able to bear external mechanical forces and certain pulling force. | |
| VLV32 | Aluminum conductor,PVC insulated, steel wire armoured,PVC sheathed power cable | ||
| VV33 | Copper conductor,PVC insulated, steel wire armoured,PE sheathed power cable | ||
| VLV33 | Aluminum conductor,PVC insulated, steel wire armoured,PE sheathed power cable | ||
Application
1,Long term working temperature for the cable with PVC insulated is 70℃;
Long term working temperature for the cable with XLPE insulated is 90℃
2,Short circuit temperature
For PVC insulated cable ,the highest conductor temperature is not more than160℃.(lasting time not over 5 seconds).
For XLPE insulated cable ,the highest conductor temperature is not more than250℃.(Lasting time is not over 5 seconds).
3,Laying temperature not less than 0℃ and the drop height is out of consideration.
4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.
5,Easy for installation, easy bending and light.

1.24 years production experience and 14 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan.Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JVwith Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables,submersible oil pump cables)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana,Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
You can use your own express account or prepay us if you do not have an account.
4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep isdelivering 10 kilometers cable within a week. Generally speaking, we suggest that
you start inquiry two months before the date you would like to get the products at your country.
