High Voltage Armoured 3C 240mm2 Xlpe 24kv Power Cable With IEC60502-2
- Tianjin Qingdao or other main port
- T/T Credit Card
You May Like
-
3 Core Al Copper XLPE Insulation PVC Jacket 3.6/6KV MV Cable
-
Cables Power Cable, 3 Core mv Copper Cable, Types of Electrical Underground Cables
-
Medium Voltage Armoured Copper or Aluminium XLPE Single Core mv Cable 1x400mm2 33kV
-
0.6/1KV 2, 3 and 4 Cores +earth Multicore Circular CU/XLPE/PVC Cable With AS/NZS 5000.1
-
XLPE Insulated Cable LV/MV/HV Steel Tape Armoured Cable Underground Distribution Cable
-
Cable Manufacturer LV/MV 3X50MM2 Xlpe Insulation Steel Tape Armored Underground Power Cable From Tianjin Port
Product Details
| Brand Name | RNEDA | Place of Origin | Hebei, China | |
| Model Number | YJV32 YJLV32 | Type | Medium Voltage | |
| Application | Underground | Insulation Material | XLPE | |
| Jacket | PVC |
Product Description

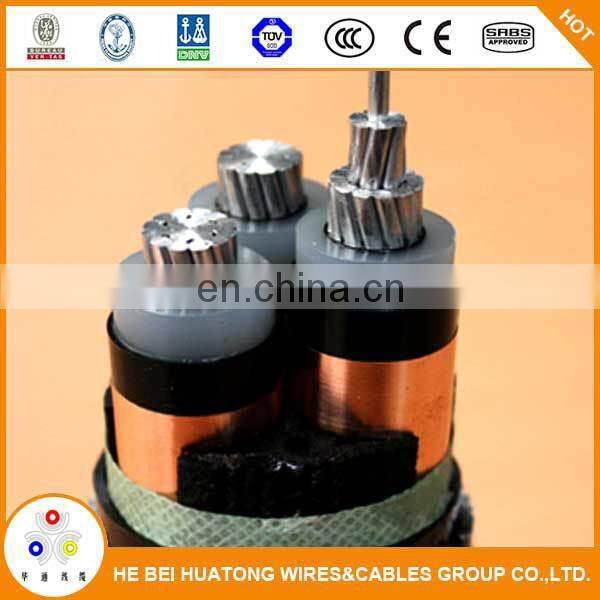

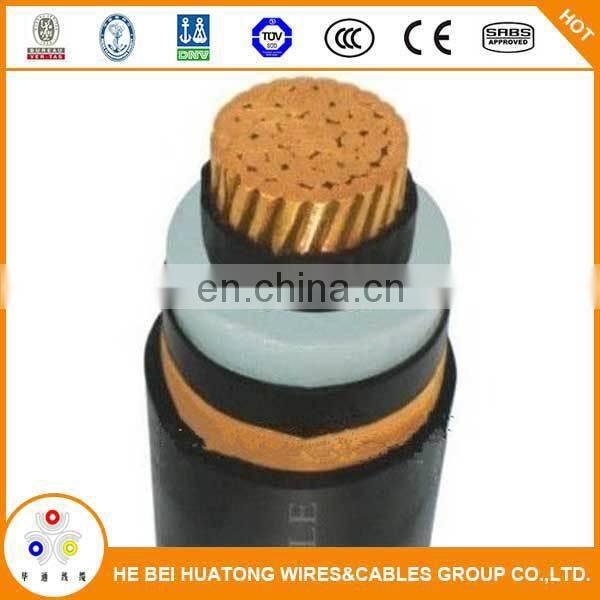

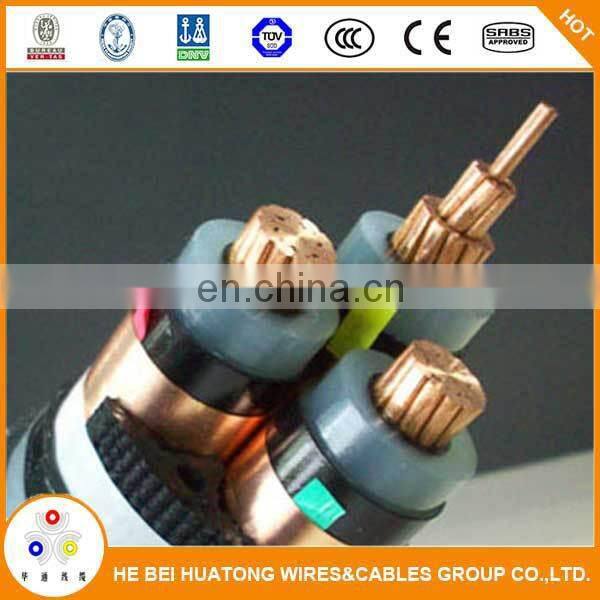

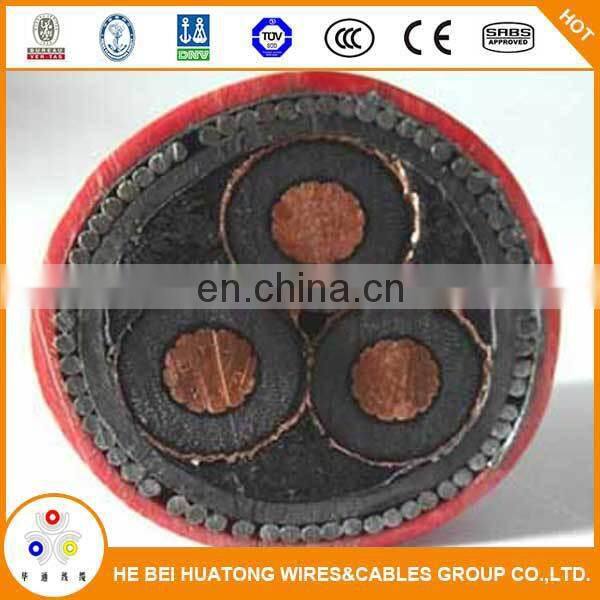

high voltage armoured 3C 240mm2 xlpe 24kv power cable with IEC60502-2
Standard:IEC60502, BS6346, VDE, AS/NZS, UL,etc
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Number of cores:
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 low votage
1 or 3 core medium voltage
Construction:
Conductor: Solid or stranded copper/aluminum
Insulation: Cross-linked polyethylene (XLPE)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Sectional Area:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
Type and Name:
| Model | Name | Application | Cable Cores | Section area (mm) | |
| Copper Core | Aluminum Core | ||||
| YJV | YJLV | CU/AL Conductor, XLPE Insulated, PVC Sheathed Power Cable | XLPE insulation PVC/PE sheathed power cables are used for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces and pulling forces. Single core cable can't laying in magnetic ducts . | 1C 3C | 25 | 400 |
| YJY | YJLY | CU/AL Conductor, XLPE Insulated, PE Sheathed Power Cable | |||
| YJV22 | YJLV22 | CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power Cable | XLPE insulation PVC/PE sheathed steel-tape armored power cables can be buried directly .Able to bear external mechanical forces but large pulling forces. | ||
| YJV23 | YJLV23 | CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power Cable | |||
| YJV32 | YJLV32 | CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PVC Sheathed Power Cable | XLPE insulation armoured power cables can apply to shafts,water and soil. Able to bear moderate pulling forces. | ||
| YJV33 | YJLV33 | CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PE Sheathed Power Cable | |||
| YJV42 | YJLV42 | CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PVC Sheathed Power Cable | Steel-wire armored,PVC/PE Sheathed Power Cables are apply to shafts,water and soil.Able to bear large pulling forces. | ||
| YJV43 | YJLV43 | CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PE Sheathed Power Cable | |||
Standard export drum,500meters/rdum,1000meters/drum or as your requirment.

We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
1.22 years production experience and 13 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3. OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
1 Location:
Hebei Huatong wires and cables group co., ltd. is Located inTangshan, 100 Km to
TianjinXingang sea port, 150Km to the Capital city Beijing China.
2 About Huatong:
Founded in 1993 Registered capital: CNY294 Million Equal to: US$45 Million
Floor space: 220,000 square meter Employees: 950 Production capacity:US$500Million
3 Production and inspection facility:
Drawing machine : 50 sets
Conductor stranding machine: 30sets
CCV and CV extruding line: 30sets
Insulation and sheath extruding machine: 40sets
Cabling machine: 30sets
Braiding machine:40sets
Other auxiliary machine: 150stes
MV cable partial discharge
equipment: 4sets
Other test machine:100sets
4 Enterprise Principle:
Strengthening Huatong /Benefiting employees /Serving our country and society/Aiming to be a world-renowned enterprise

1.How many year have our factory producing power cable?
Our factory produce power cable for 22 years.
2 Hong Long time the customer can get the new price after get your inquiry?
Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.
3.Which port our factory is near to? Tianjin port
4.Which payment term do we accept?
T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.
5.What about the package for our power cable?
It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.
6.How long meter power cable for one wooden drum?
This is according to power cable's diameter and customer's requirments.
7.How about our delivery time?
According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.
8.Do we provide sample for free?
Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
