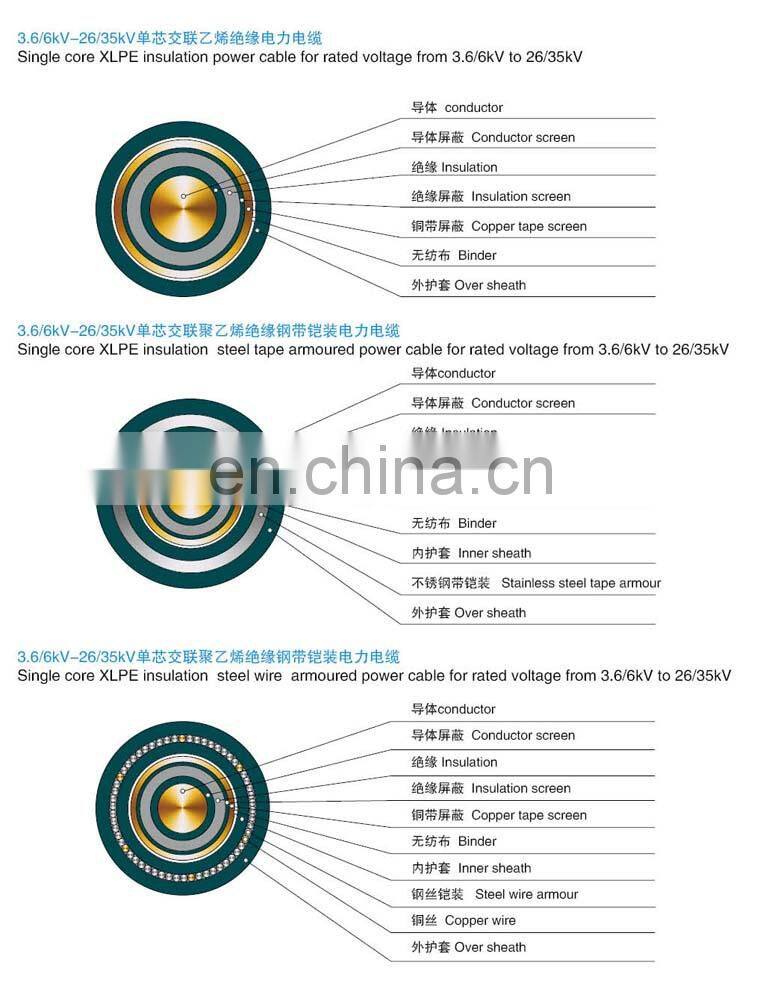

High Standard 1*240mm2 Copper/ Aluminum Conductor XLPE Insulation Copper Wire Copper Tape Shield PVC Sheath Power Cable

High standard 1*240mm2 copper/ aluminum conductor XLPE insulation copper wire copper tape shield PVC sheath power cable

Application:

Medium voltage cables for distribution networks; also for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

The available current ratings for this range of medium voltage cable are as follows:
- 6/10kV
-12/20kV
-18/30kV

Application of xlpe MV power cable
1,Long term working temperature for the cable with PVC insulated is 70℃;

Long term working temperature for the cable with XLPE insulated is 90℃

2,Short circuit temperature

For PVC insulated cable ,the highest conductor temperature is not more than160℃.(lasting time not over 5 seconds).

For XLPE insulated cable ,the highest conductor temperature is not more than250℃.(Lasting time is not over 5 seconds).

3,Laying temperature not less than 0℃ and the drop height is out of consideration.

4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.

5,Easy for installation, easy bending and light.

 Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.

Products: XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable,locomotivevehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.

 We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables.submersible oil pump cables, .)and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa,Congo, Middle East and Southeast Asia countries and so on.

1. 22 years production experience and 13 years export experience .

2.high-end  Machinery and equipment for high quality cable .

3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...

4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:

    system ceryification:ISO9001,ISO14001,OHSAS18001

5.our product sells all over the world and has the good  reputation.

fessional teamwork service for you actively.

7.quick solution and long time online time waiting for your inquiry.

8.rapid delivery and feedback.

9. Stock available, Free sample

10.We can do that you expect
