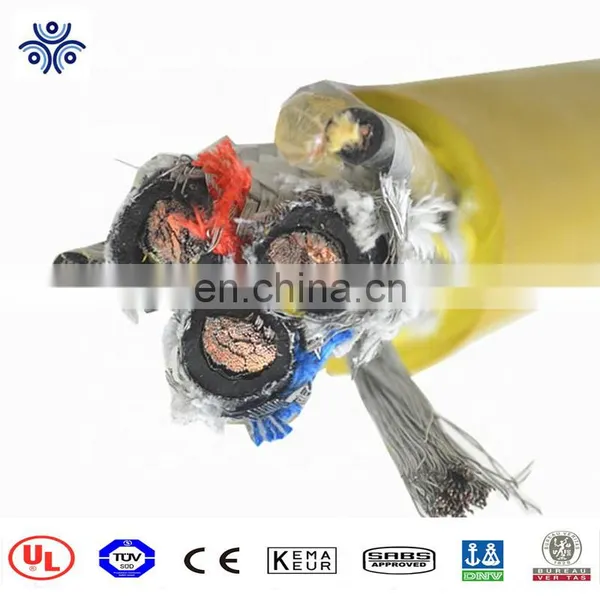

5KV copper conductor EPR insulation Rubber sheath mining cable

Application
Type W G GC Portable Power Cable is suitable for use in Industrial and light-to-medium mining applications, heavy-duty service and temporary as power supply cables. Motor, battery and generator leads. It is also used for mobile and portable electrical equipment.Industrial and light to medium duty mining applications.Heavy duty service as power supply cable.Mobile and portable electrical equipment.3 and 4 conductor use on three-phase AC systems where grounding is required

Specifications

• UL Listed - Type W per UL 1650

• Conductors are manufactured in accordance with ASTM and B-172
• Made in accordance with ICEA S-75-381
• NEMA WC-58 - Portable and Power Feeder Cables for Use in Mines and Similar Locations
• MSHA accepted, P-136-135, LR65300
• UL Listed as Type RHH or RHW-2
• CSA or c(UL) Certified as applicable
• RoHS Compliant
• Meets FT-5 Flame Test

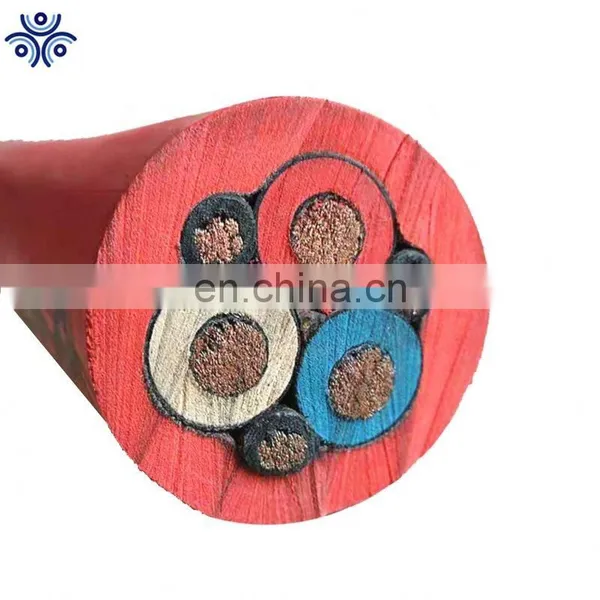

Construction

   Conductor: 8 AWG to 500 MCM fully annealed stranded bare copper Stranding per ASTM B 174

   Insulation: Premium grade oil resistant Ethylene Propylene (EPDM)

  Jacket: Premium grade, water, sunlight, and oil resistant, flame-retardant, Chlorinated Polyethylene (CPE)

Features:

              Excellent impact and abrasion resistance

              Withstand exposure to oil, acids, alkalies, heat, moisture and most chemicals

              Indent printed for easy identification

              Rope lay stranding for maximum flex life

              Cable core bound for superior flexibility and toughness

              Resists:Heat ,Oil,Weather,Ozone,Abrasion

              Temp range:-40°C to 90°C Dry

                                 -40°C to 75°C Wet
